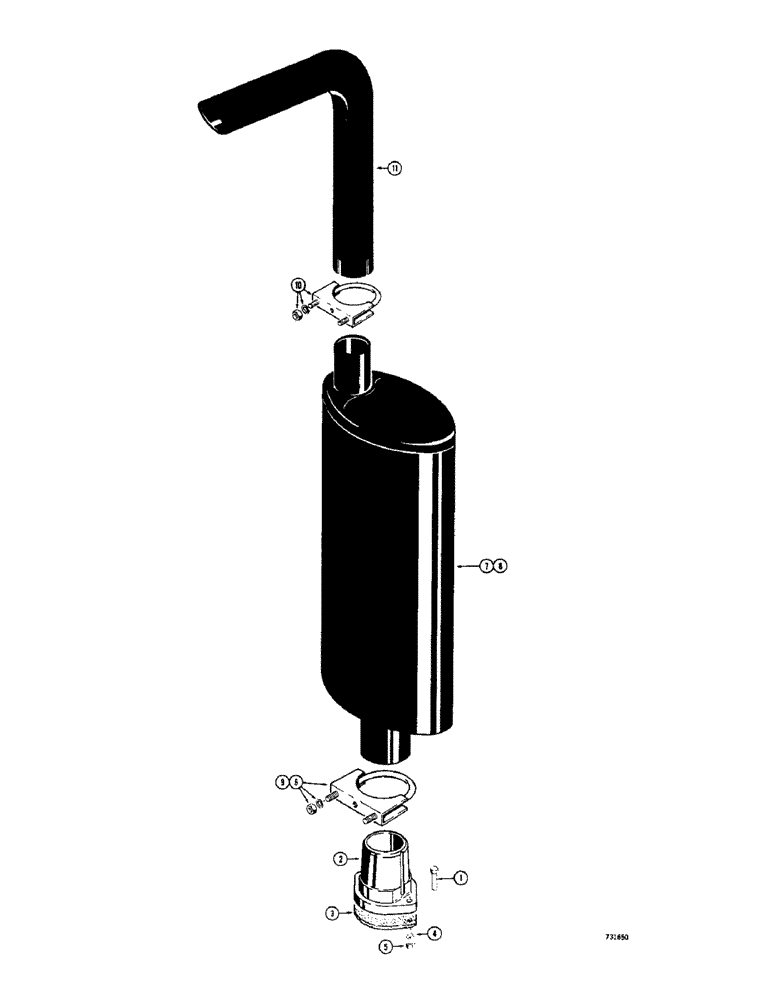

Запчасти Case IH 1700-SERIES (066) - MUFFLERS AND EXHAUST SYSTEMS, USED BEFORE SERIAL NO. 9816499 (10) - ENGINE

1

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

2

D22864

OUTLET

- exhaust, at manifold

1шт.

3

G46853

MANIFOLD GASKET

- outlet

1шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

2шт.

6

A13240

CLAMP,2-5/8" ID

ASSEMBLY - muffler mounting

1шт.

7

D53886

MUFFLER - exhaust, standard (For service use D54718 muffler, D54720 pipe - 1737 models, D54721 pipe - 1740 models D54722 bracket and G45410 clamp)

1шт.

8

D45256

MUFFLER,W/ Spark Arrester

- exhaust, spark arresting, Inlcudes: Ref. 9

1шт.

9

A13240

CLAMP,2-5/8" ID

ASSEMBLY - muffler mounting

1шт.

10

A39019

CLAMP

ASSEMBLY - exhaust pipe mounting

1шт.

11

D53101

PIPE

- exhaust

1шт.
