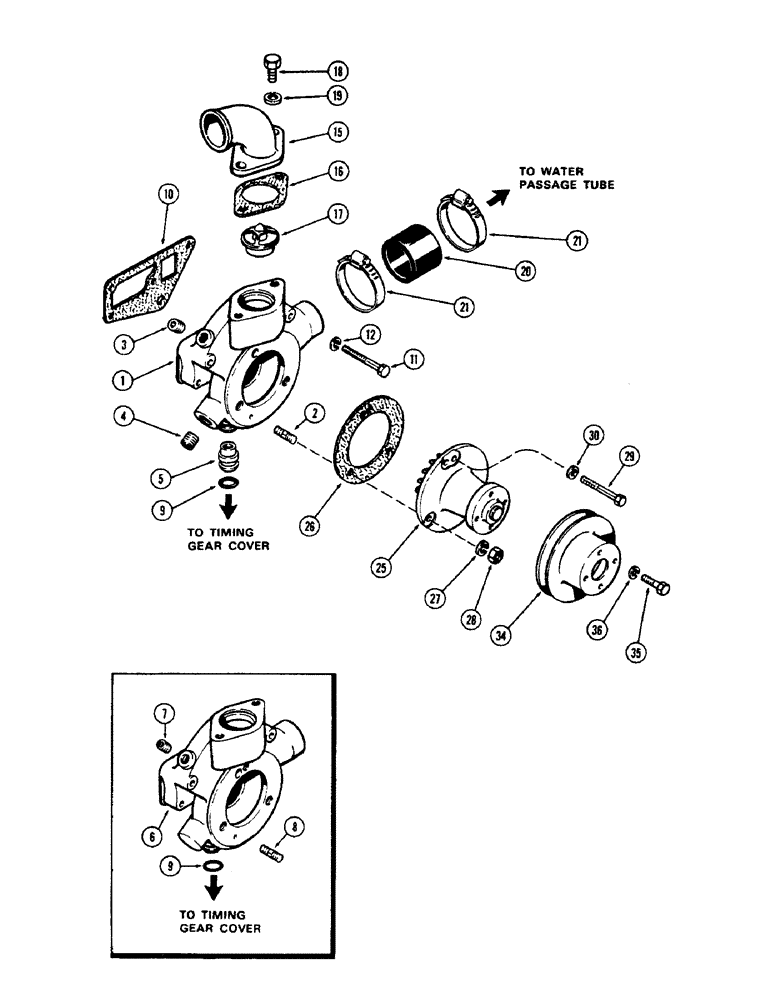

Запчасти Case IH 1700-SERIES (053A) - WATER PUMP AND THERMOSTAT, 188 DIESEL ENGINE, 1ST USED ENGINE SERIAL NO. 2728315 (10) - ENGINE

1

A144054

BODY

ASSY. - water pump (w/separate fitting) (1st used eng. ser. no. 2801835), Inlcudes: Ref. 2 - 5

1шт.

2

A29433

STUD

- body, 3/8" N.C. x 1"

2шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- body, 3/8" P.T. sckt. hd.

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- body, 1/2" P.T. sckt. hd.

1шт.

5

A142823

FITTING

- water inlet

1шт.

6

A51735

BODY

ASSY. - water pump (w/attached fitting) (Used prior to eng. ser. no. 2801835), Inlcudes: Ref. 7 - 8

1шт.

7

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" socket hd.

1шт.

8

A29433

STUD

- water pump (3/8" N.C. x 1")

2шт.

9

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - pump body to cover (3/4 x 1 x 1/8")

1шт.

10

A38084

GASKET,1.27mm Thk

- pump, Serial Range: body-head

1шт.

11

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- body to cyl. head (3/8 x 1-7/8" N.C. hex.)

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- body to cyl. hd. (3/8 x 2-3/4" N.C. hex.)

2шт.

12

92-6

LOCK WASHER,3/8"

3шт.

15

A39223

ELBOW - water outlet

1шт.

16

G46907

GASKET

- elbow flange

1шт.

17

A57641

THERMOSTAT

(180 degrees)

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Elbow Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

25

A39074

PUMP

ASSY. - water, Inlcudes: Ref. 26

1шт.

26

A38083

GASKET

- water pump

1шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

- mtg. stud, 3/8" N.C. hex.

2шт.

29

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- pump mtg., 3/8 x 2-3/4" N.C. hex.

1шт.

30

A7085

WASHER

- mtg. bolt (25/64 x 9/16 x 3/64" copper)

1шт.

34

A39216

PULLEY - drive belt

1шт.

35

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Pulley Hex, 5/16"-18 x 1/2", G5, Full Thd

4шт.

36

92-5

LOCK WASHER,5/16"

4шт.
