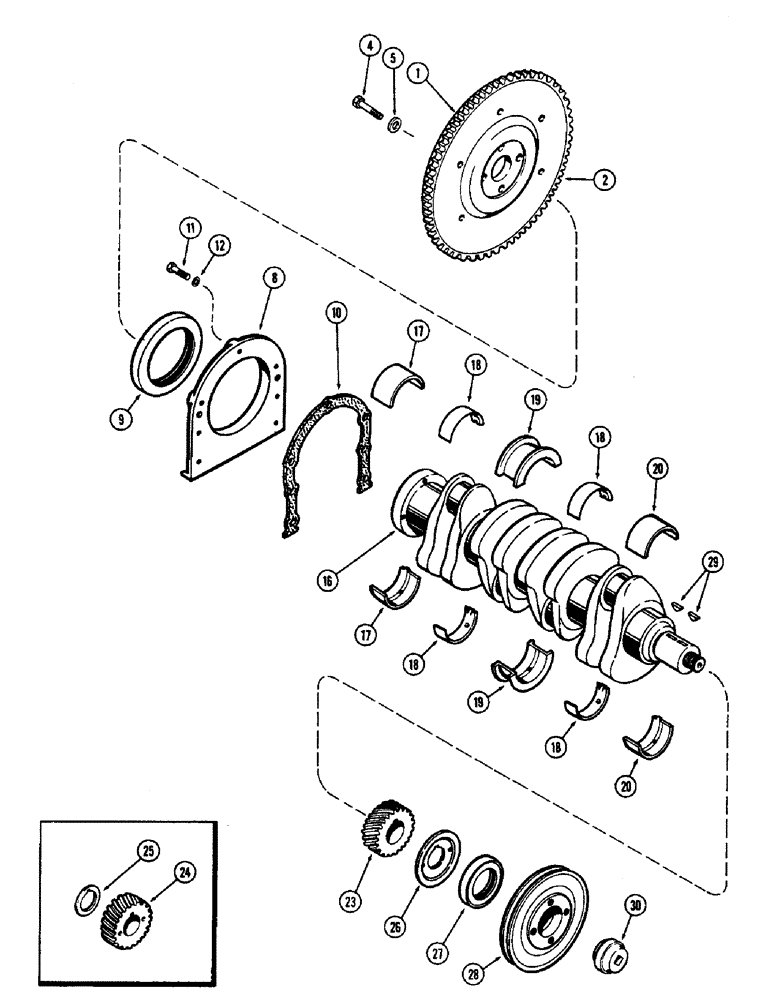

Запчасти Case IH 1700-SERIES (042) - CRANKSHAFT AND FLYWHEEL, 188 DIESEL ENGINE (10) - ENGINE

1

A39851

FLYWHEEL ASSY., Includes Ref: 2

1шт.

2

G11710

GEAR

- ring (135 teeth)

1шт.

353-636

PLUG - balance hole (Cork)

1шт.

4

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

BOLT - flywheel, 7/16 x 1-1/8" N.F. place

4шт.

5

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flywheel bolt (29/64 x 3/4 x 5/64")

4шт.

8

A38410

- rear oil seal

1шт.

9

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, crankshaft, rear (4 x 5 x 1/2") (Replaces A39111)

1шт.

10

A39188

GASKET

- rear oil seal retainer

1шт.

11

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- retainer, 1/4 x 3/4" N.C. hex.

4шт.

11

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- retainer, 1/4 x 1" N.C. hex.

3шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

16

A39146

CRANKSHAFT

1шт.

17

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER SET - main brg., rear (Std.)

1шт.

17

A36496

LINING

LINER SET - main brg., rear (-.002")

1шт.

17

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER SET - main brg., rear (-.010")

1шт.

17

A36498

KIT

LINER SET - main brg., rear (-.020")

1шт.

17

A36499

BEARING LINER

LINER SET - main brg., rear (-.030")

1шт.

18

A36485

LINING

LINER SET - main brg., inter. (Std.)

2шт.

18

A36486

LINING

LINER SET - main brg., inter. (-.002")

2шт.

18

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINER SET - main brg., inter. (.-010")

2шт.

18

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINER SET - main brg., inter. (-.020")

2шт.

18

A36489

LINING

LINER SET - main brg., inter. (-.030")

2шт.

19

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER SET - main brg., center (Std.)

1шт.

19

A36491

LINING

LINER SET - main brg., center (-.002")

1шт.

19

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER SET - main brg., center (-.010")

1шт.

19

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER SET - main brg., center (-.020")

1шт.

19

A36494

LINING

LINER SET - main brg., center (-.030")

1шт.

20

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER SET - main brg., front (Std.)

1шт.

20

A36481

LINING

LINER SET - main brg., front (-.002")

1шт.

20

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER SET - main brg., front (-.010")

1шт.

20

A36483

LINING

LINER SET - main brg., front (-.020")

1шт.

20

A36484

LINING

LINER SET - main brg., front (-.030")

1шт.

23

A39288

GEAR

- crankshaft (24 teeth) (1-5/32" wide) (1st used eng. ser. #2718083)

1шт.

24

A29263

GEAR

- crankshaft (24 teeth) (1-1/16" wide) (Used prior to eng. ser. #2718083)

1шт.

25

A29294

BUSHING

SPACER - thrust (3/32" thick) (Used w/A29263)

1шт.

26

A29259

SLINGER

- oil

1шт.

27

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front (2 x 3 x 1/2")

1шт.

28

A50962

PULLEY

- crankshaft (Replaces G11342 & A39931)

1шт.

29

A39132

KEY

- pulley & gear (Hi-Pro)

2шт.

30

A35673

NUT

- pulley retaining

1шт.
