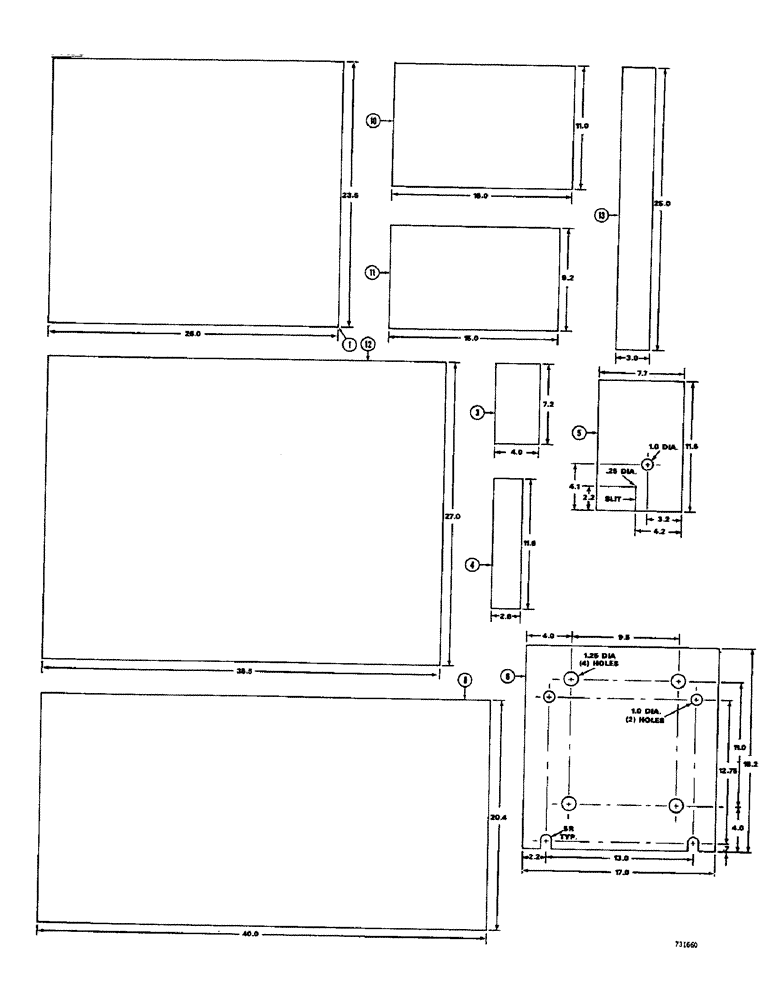

Запчасти Case IH 1700-SERIES (141A) - NOISE REDUCTION PADS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

PAD - ROPS roof (Cut from D59896)

1шт.

2

D59896

PADDING

Bulk (54" x 36" x 2") Not shown

1шт.

3

REF

INSTRUCTION

PAD - cover, RH and LH (Cut from D60787)

2шт.

4

REF

INSTRUCTION

PAD - cover, RH (Front) Cut from D60787

1шт.

5

REF

INSTRUCTION

PAD - cover, LH (Cut from D60787)

1шт.

6

REF

INSTRUCTION

PAD - seat platform (Cut from D60787)

1шт.

7

D60787

SPARE PART Bulk (48" x 24" x 52/64") Not shown

1шт.

8

REF

INSTRUCTION

PAD - counterweight (Cut from D59897)

1шт.

9

D59897

PADDING

Bulk (54" x 36" x 1") Not shown

1шт.

10

REF

INSTRUCTION

PAD - frame (Cut from D59896)

2шт.

11

REF

INSTRUCTION

PAD - shroud (Cut from D59896)

1шт.

12

REF

INSTRUCTION

PAD - heat shield, back (Cut from D59896)

1шт.

13

REF

INSTRUCTION

PAD - heat shield, bottom (Cut from D59896)

1шт.

14

D59896

PADDING

Bulk (54" x 36" x 2") Not shown

1шт.

15

345-47

SPARE PART 1 qt. (Not shown)

1шт.

16

345-44

ADHESIVE

Aerosol can (Not shown)

1шт.
