Запчасти Case IH 1700-SERIES (226) - CASTER WHEEL (89) - TOOLS

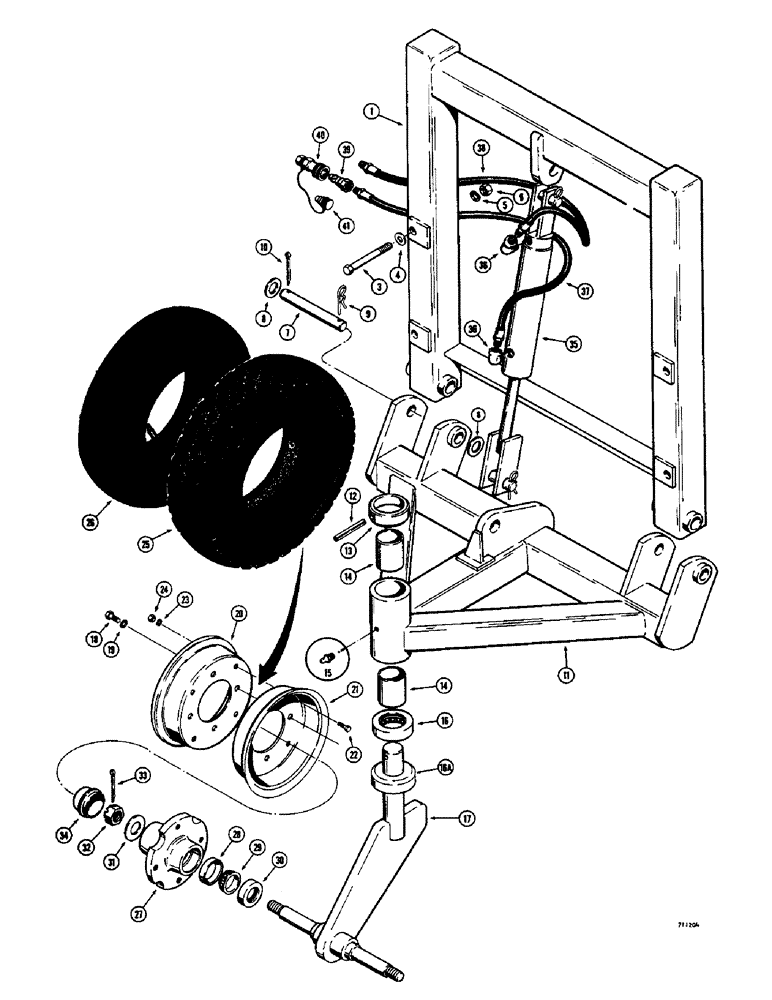

Схема запчастей Case IH 1700-SERIES - (226) - CASTER WHEEL (89) - TOOLS

Артикул

Название

Примечание

Количество

1

D53141

FRAME - mounting, caster wheel

1шт.

2

D54469

SPACER - block, frame (Not illustrated)

4шт.

3

113-448

BOLT,Hex, 1/2" - 13 x 7", Gr 5

4шт.

4

195-533

WASHER,1/2", SAE

- plain (1/2")

4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

7

D53165

PIN - special, mounting

2шт.

8

195-553

WASHER,1", SAE

- plain (1-1/16")

4шт.

9

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), , Hair Int, 7/16" x .177"

2шт.

10

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

11

D53149

SUPPORT - caster wheel

1шт.

12

138-145

LOCK PIN,1/4" x 2 3/4", Slotted

PIN, 1/4" x 2 3/4", Slotted

1шт.

13

D53167

COLLAR - yoke, caster wheel

1шт.

14

D53166

BEARING - pivot

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

16

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust

1шт.

16a

54515

COLLAR - thrust bearing

1шт.

17

D53161

YOKE - caster bearing

1шт.

18

114-409

BOLT,Hex, 1/2" - 20 x 1", Gr 5, Full Thd

8шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

20

D53930

RIM

- outer half, with valve hole

2шт.

21

D53931

RIM

- inner half

2шт.

22

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

25

REF

INSTRUCTION

TIRE - 4 ply (4.80/4.00 x 8")

2шт.

26

REF

INSTRUCTION

TUBE - inner (4.80/4.00 x 8")

2шт.

T27808

HUB ASSEMBLY - caster wheels, Includes: Ref. 27 - 28

2шт.

27

NSS

NOT SOLD SEPARAT

HUB - caster wheel

1шт.

28

D29267

BEARING CUP,1.98" OD x 0.42"

CUP - bearing

2шт.

29

D53168

TAPERED BEARING

CONE - bearing

4шт.

30

T27809

SEAL

- hub

2шт.

31

195-45

WASHER,3/4"

2шт.

32

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex., slotted (3/4" - 16 NC)

2шт.

33

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

34

T27814

CAP

- hub

2шт.

35

REF

INSTRUCTION

CYLINDER ASSEMBLY - rear (See page 230 for proper cylinders)

1шт.

36

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

- 90 degree, street

2шт.

37

T42064

HOSE ASSY.

HOSE - hydraulic, lift (42" long)

1шт.

38

T42063

HOSE

- hydraulic, lower (32" long)

1шт.

39

T41332

COUPLING, BREAK AWAY

COUPLING - male, quick disconnect

2шт.

40

T40265

COUPLING, BREAK AWAY

COUPLING - female, quick disconnect

2шт.

41

T40274

CAP

- dust

2шт.

Выбрано товаров: 43
