Запчасти Case IH 1700-SERIES (210) - SCARIFIER (89) - TOOLS

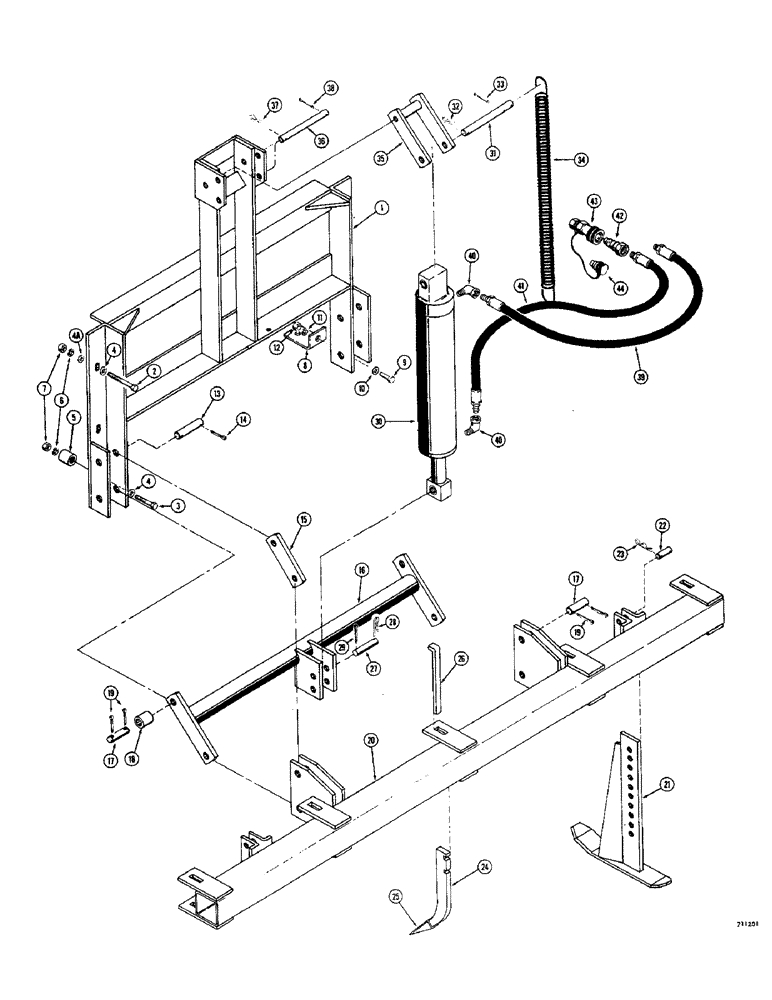

Схема запчастей Case IH 1700-SERIES - (210) - SCARIFIER (89) - TOOLS

Артикул

Название

Примечание

Количество

1

T42023

SPARE PART Mounting, scarifier

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

3

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

3

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

(D53029 spacer)

2шт.

4

195-106

WASHER,1/2"

6шт.

4a

A21546

WASHER - special (Also used in place of item 5)

6шт.

5

REF

INSTRUCTION

NOT USED ON THIS MODEL

1шт.

6

192-23

LOCK WASHER,1/2"

6шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

8

D53942

SPARE PART Frame support

2шт.

9

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

10

195-106

WASHER,1/2"

2шт.

11

192-23

LOCK WASHER,1/2"

4шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

13

T42041

AXLE PIN

Mounting, linkage

4шт.

14

132-159

COTTER PIN,1/4" x 3"

8шт.

15

T42037

SPARE PART Hitch, upper

2шт.

16

T42038

WHEEL

LINK - hitch, lower

1шт.

17

T42062

PIN

Mounting, linkage

4шт.

18

T42058

SPACER

Hitch links

4шт.

19

132-159

COTTER PIN,1/4" x 3"

8шт.

20

T42043

SPARE PART

1шт.

21

T42050

SPARE PART Depth control

2шт.

22

T42057

AXLE PIN

Shoe mounting

4шт.

23

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

8шт.

T42054

TOOTH

ASSY - Scarifier, Incl. Ref. 24 - 25

5шт.

24

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

25

K3871

POINT

Tooth

1шт.

26

T42056

KEY

Tooth retaining

5шт.

27

T42041

AXLE PIN

Cylinder, Serial Range: rod-link

1шт.

28

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

2шт.

29

132-159

COTTER PIN,1/4" x 3"

2шт.

30

REF

INSTRUCTION

CYLINDER - Scarifier (See Figure 230 for proper cylinders)

1шт.

31

T42035

AXLE PIN

Cylinder to cylinder linkage

1шт.

32

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

33

132-159

COTTER PIN,1/4" x 3"

1шт.

34

T42060

SPRING

Return

1шт.

35

T42032

HINGE

LINK - cylinder

1шт.

36

T42036

AXLE PIN

Linkage

2шт.

37

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

2шт.

38

132-159

COTTER PIN,1/4" x 3"

2шт.

39

T42063

HOSE

Hydraulic (32" long)

1шт.

40

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

Street

2шт.

41

T42064

HOSE ASSY.

Hydraulic (42" long)

1шт.

42

T41332

COUPLING, BREAK AWAY

Quick disconnect, male

2шт.

43

T40265

COUPLING, BREAK AWAY

Quick disconnect, female

2шт.

44

T40274

CAP

PLUG - dust, quick disconnect

2шт.

Выбрано товаров: 47
