Запчасти Case IH 1700-SERIES (204) - 18 INCH TREE SHEAR (89) - TOOLS

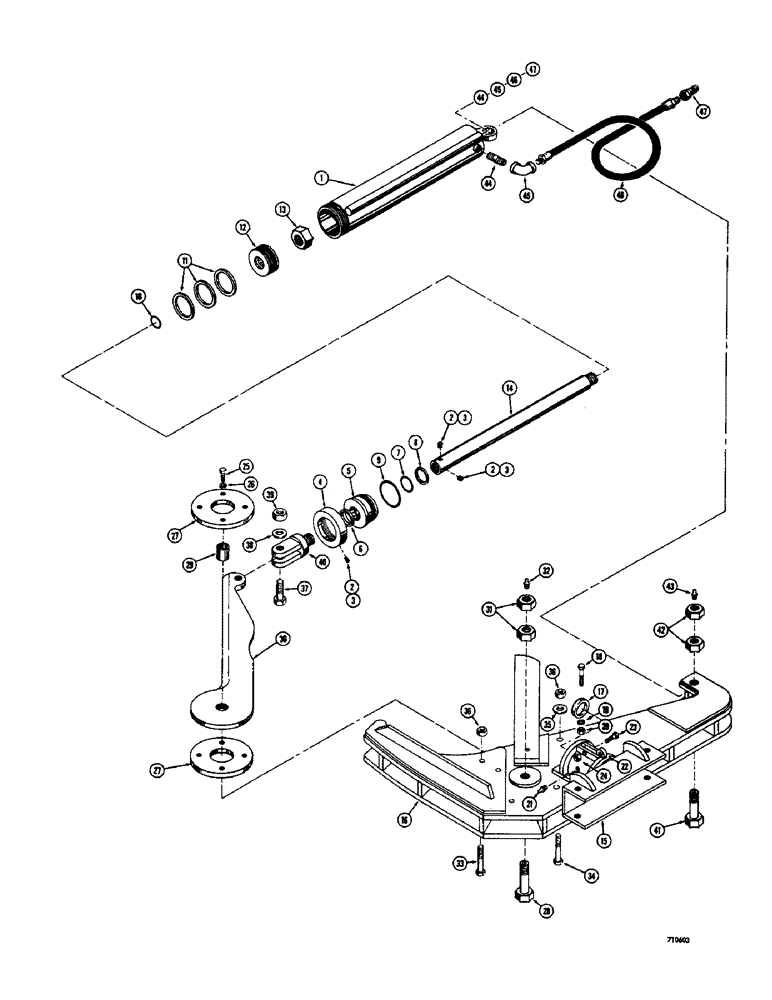

Схема запчастей Case IH 1700-SERIES - (204) - 18 INCH TREE SHEAR (89) - TOOLS

Артикул

Название

Примечание

Количество

T41989

CYLINDER BLOCK

CYLINDER - tree shear (7 "I.D. x 26" stroke), Include: Ref. 1 - 14

1шт.

1

T41998

TUBE - cylinder 7" ID x 7.62" OD x 31.88, 6" L

1шт.

2

178-808

SET,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, headless (3/8" - 24 NF x 3/8")

3шт.

3

T41996

LOCK ASSY

LOCK - nylon

3шт.

4

T42002

CAP - gland

1шт.

5

T42001

GLAND - packing

1шт.

T41997

BUCKLE

KIT - cylinder seal, Include: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, rod

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, rod seal

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, gland

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston

1шт.

11

NSS

NOT SOLD SEPARAT

RING - piston

3шт.

12

T42000

PISTON ASSY.

PISTON - cylinder

1шт.

13

131-910

NUT - hex., jam (1-3/4" - 12 NC)

1шт.

14

T41999

ROD - piston (3" dia.)

1шт.

15

NSS

NOT SOLD SEPARAT

FRAME - mounting

1шт.

16

NSS

NOT SOLD SEPARAT

FRAME - shear

1шт.

17

NSS

NOT SOLD SEPARAT

RING - frame, retaining

1шт.

18

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

19

92-8

LOCK WASHER,1/2"

1шт.

20

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight

1шт.

22

NSS

NOT SOLD SEPARAT

LATCH - swing adjustment

1шт.

23

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

1шт.

24

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

25

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

27

T41991

PLATE - wear

2шт.

28

T41994

BOLT - special

1шт.

29

NSS

NOT SOLD SEPARAT

SPACER - bushing

1шт.

30

T41990

BUSHING - shear

1шт.

31

25-1432

NUT - hex., jam (2" - 4 NC)

2шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

33

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

1шт.

34

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, Hex, 1"-8 x 5", G5

1шт.

35

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- flat (1-1/16")

1шт.

36

25-1016

NUT,1"-8, G5

2шт.

37

13-2064

BOLT,Hex, 1-1/4" - 7 x 4", Gr 5

1шт.

38

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat (1-3/8")

1шт.

39

25-1020

NUT,1 1/4"-7, G5

1шт.

40

T41992

CLEVIS - shear cylinder

1шт.

41

T41993

BOLT - special

1шт.

42

25-1428

NUT - hex., jam (1-3/4" - 5 NC)

2шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

44

221-212

NIPPLE, LUBE

NIPPLE - pipe (3/4")

2шт.

45

221-384

ELBOW

- 90 degrees

2шт.

46

T41367

HOSE - shear (64" long)

2шт.

47

T41332

COUPLING, BREAK AWAY

COUPLING - male, quick disconnect

2шт.

Выбрано товаров: 49
