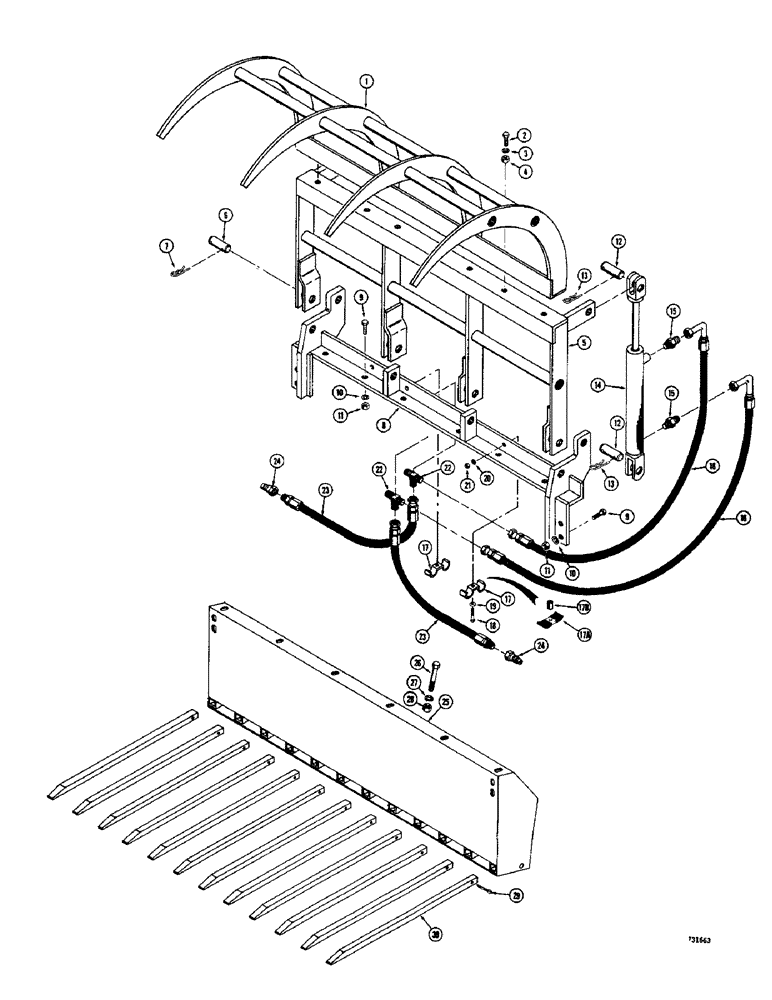

Запчасти Case IH 1700-SERIES (198) - HYDRAULIC GRAPPLE (89) - TOOLS

1

T41575

TINE

FORK - grapple

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

3

192-23

LOCK WASHER,1/2"

6шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

5

T41569

SPARE PART Grapple mounting

1шт.

6

D61036

PIN

Mounting, Serial Range: frame-upright

4шт.

7

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

8шт.

8

T41564

SPARE PART Upright

1шт.

9

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

10шт.

10

192-23

LOCK WASHER,1/2"

10шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

12

D61036

PIN

Mounting, cylinder

4шт.

13

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

8шт.

14

REF

INSTRUCTION

CYLINDER - grapple (See pages 230 for proper cylinders)

2шт.

15

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

2шт.

16

T41579

HOSE

At cylinders (40" long)

4шт.

17

T41582

CLAMP

Hose (Use D40236 clamp and D33826 spacer)

4шт.

17a

D40236

CLAMP

Hose

4шт.

17b

D33826

SPACER - hose

4шт.

18

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(T41582 clamp)

4шт.

18

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

(D40236 clamp)

4шт.

19

195-102

WASHER,1/4"

4шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

22

218-594

TEE,3/4"-16, 37 Degree

2шт.

23

T41580

HOSE

To coupling (45-1/2" long)

2шт.

24

T41332

COUPLING, BREAK AWAY

Quick disconnect, male

2шт.

25

T42390

SPARE PART Manure

1шт.

26

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

2шт.

27

92-10

LOCK WASHER,5/8"

2шт.

28

25-1010

NUT,5/8"-11, G5

2шт.

29

132-159

COTTER PIN,1/4" x 3"

Manure fork

12шт.

30

T40795

TINE

Manure

12шт.
