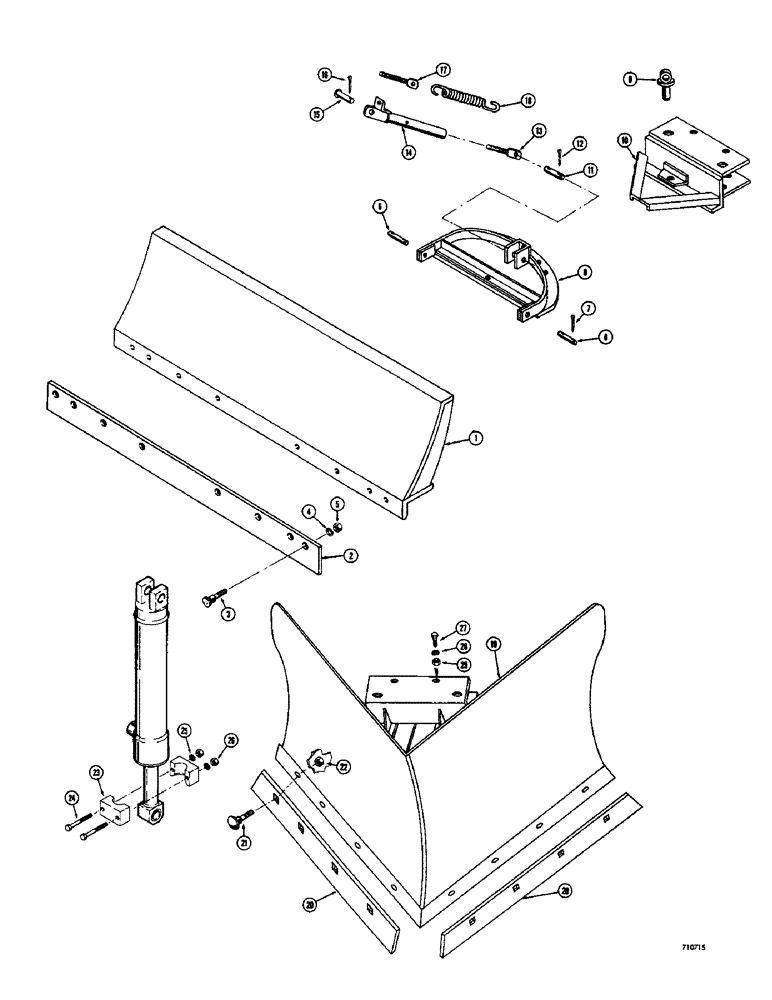

Запчасти Case IH 1700-SERIES (196) - BLADE, STRAIGHT (89) - TOOLS

T88585

BLADE ASSEMBLY - straight, machinery item, Include: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - straight

1шт.

2

T41888

EDGE - cutting

1шт.

3

19-1032

BOLT,5/8" - 11 x 2", Gr 5

- plow (5/8" - 11 NC x 2")

8шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

25-1010

NUT,5/8"-11, G5

8шт.

6

T41890

PIN - blade mounting

2шт.

7

132-92

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

4шт.

8

NSS

NOT SOLD SEPARAT

HINGE - blade mounting

1шт.

9

T41891

PIN - angle adjustment

1шт.

10

NSS

NOT SOLD SEPARAT

MOUNT - blade

1шт.

11

T41890

PIN - brace, lower

1шт.

12

132-92

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

2шт.

13

T41887

EYE BOLT - brace adjustment

1шт.

14

T41886

BRACE - blade

1шт.

15

T41889

PIN - brace, upper

1шт.

16

132-92

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

1шт.

17

T41885

EYE BOLT - spring tension

1шт.

18

T41884

SPRING - tension, blade

1шт.

D16361

SNOW PLOW ASSEMBLY - machinery item, Include: Ref. 19 - 29

1шт.

19

NSS

NOT SOLD SEPARAT

BLADE - snow, plow

1шт.

20

T41892

EDGE - cutting, snow plow

2шт.

21

111-618

BOLT,Short NK, 5/8"-11 x 2", G5

CARRIAGE, Short NK, 5/8"-11 x 2", G5

8шт.

22

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex., lock (5/8" - 11 NC)

8шт.

23

D54489

SPACER - bucket cylinder (If used), snow plow

2шт.

24

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

27

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

29

25-1010

NUT,5/8"-11, G5

2шт.
