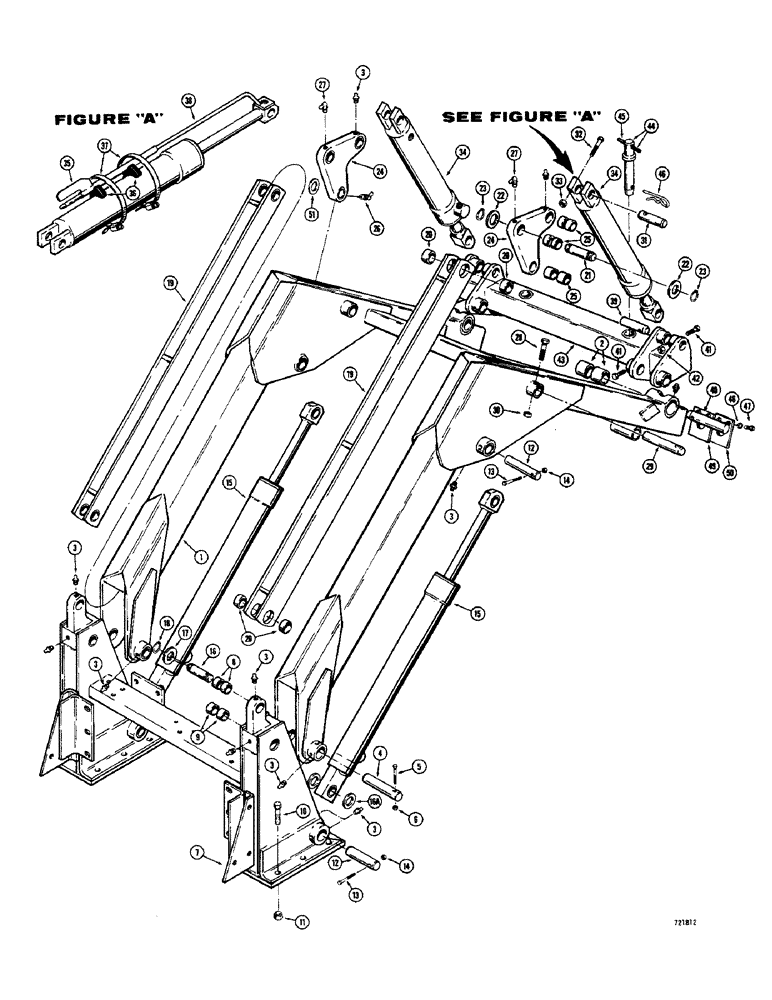

Запчасти Case IH 1700-SERIES (145A) - LOADER LIFT FRAME AND RELATED PARTS, USED SERIAL NO. 9818251 AND AFTER (82) - FRONT LOADER & BUCKET

1

D55908

SPARE PART Loader lift, uses guard on dump hydraulics (Order D57743 and two D42563 tapped blocks), Including Ref. 2

1шт.

1a

D57743

SPARE PART Loader lift, no dump hydraulic guard (Not shown), Including Ref. 2

1шт.

2

D95341

BUSHING

D55908 and D57743 lift arms

4шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight (1/8" NPT), 1737 and 1740

10шт.

4

D65251

PIN

Loader, Serial Range: arm-frame

2шт.

5

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

6

131-652

LOCK NUT,3/8"-16, GB

Hex

2шт.

7

D55921

FRAME

Upright, Including Ref. 8 - 9, Serial Range: -9825490

1шт.

8

D53031

BUSHING

Leveling link

4шт.

9

D33827

BUSHING,31.98mm ID x 41.27mm OD x 31.8mm L

Lift arm

4шт.

10

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

12шт.

11

131-676

LOCK NUT,5/8"-11, GB

Hex (5/8"-18 NF)

12шт.

12

D55925

PIN,25.4mm OD x 165.1mm L

Lift, Serial Range: cylinder-frame

4шт.

13

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

14

131-652

LOCK NUT,3/8"-16, GB

Hex

4шт.

15

REF

INSTRUCTION

CYLINDER - lift (See Figures 238 and 240 for cylinders)

2шт.

16

D95481

AXLE PIN

Level, Serial Range: linkage-frame

2шт.

16a

D57073

SPARE PART Cylinder

4шт.

17

195-2105

WASHER,1 1/16" x 1 3/4" x .065"

WASHER - flat (1")

4шт.

18

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

Retaining

4шт.

19

D54061

SPARE PART Leveling, Including Ref. 20

2шт.

20

D53031

BUSHING

Link

4шт.

21

D95481

AXLE PIN

Leveling, Serial Range: linkage-bellcrank

2шт.

22

195-2105

WASHER,1 1/16" x 1 3/4" x .065"

WASHER - flat (1")

4шт.

23

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

Retaining

4шт.

24

D55923

SPARE PART Self-leveling, Including Ref. 25

2шт.

25

D53031

BUSHING

At cylinder and link mounting

6шт.

26

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 45 degrees (1/8" NPT), 1737 and 1740

2шт.

27

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1737 and 1740

2шт.

28

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

29

D55925

PIN,25.4mm OD x 165.1mm L

Bellcrank to loader arm

2шт.

30

131-652

LOCK NUT,3/8"-16, GB

Hex

2шт.

31

D53180

SPARE PART Bellcrank to dump cylinder

2шт.

32

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

33

131-352

LOCK NUT,3/8"-16, GA

Hex

2шт.

34

REF

INSTRUCTION

CYLINDER - bucket (See Figures 242 thru 247A for cylinders)

2шт.

35

D57295

GAUGE

Bucket position

1шт.

36

D38648

BLOCK

SADDLE - rubber

2шт.

37

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

38

D57213

ROD

Bucket indicator

1шт.

39

D53179

PIN

Tilt cylinder to attchment bar

2шт.

40

D95392

PIN

Attachment bar to loader arm

2шт.

41

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

42

131-352

LOCK NUT,3/8"-16, GA

Hex

4шт.

43

D53100

BAR

Attachment

1шт.

44

T41081

PIN

Quick hitch, Including Ref. 45

2шт.

45

138-46

SPARE PART ROLL PIN - 1/4" dia. x 3" 3/32" x 1 1/8", Slotted

1шт.

46

T40222

SPLIT PIN/SAFETY PIN

PIN - hair

2шт.

47

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

48

92-6

LOCK WASHER,3/8"

4шт.

49

D54006

SHIM,.058" Thk

1шт.

50

D54005

SHIM,.109" Thk

1шт.

51

195-2105

WASHER,1 1/16" x 1 3/4" x .065"

WASHER - flat, 1"

1шт.
