Запчасти Case IH 1700-SERIES (082) - INSTRUMENT PANEL, ALL 1737S MODELS, LATE PRODUCTION 1737 AND 1740 MODELS WITH NYLON VACUUM TUBE (55) - ELECTRICAL SYSTEMS

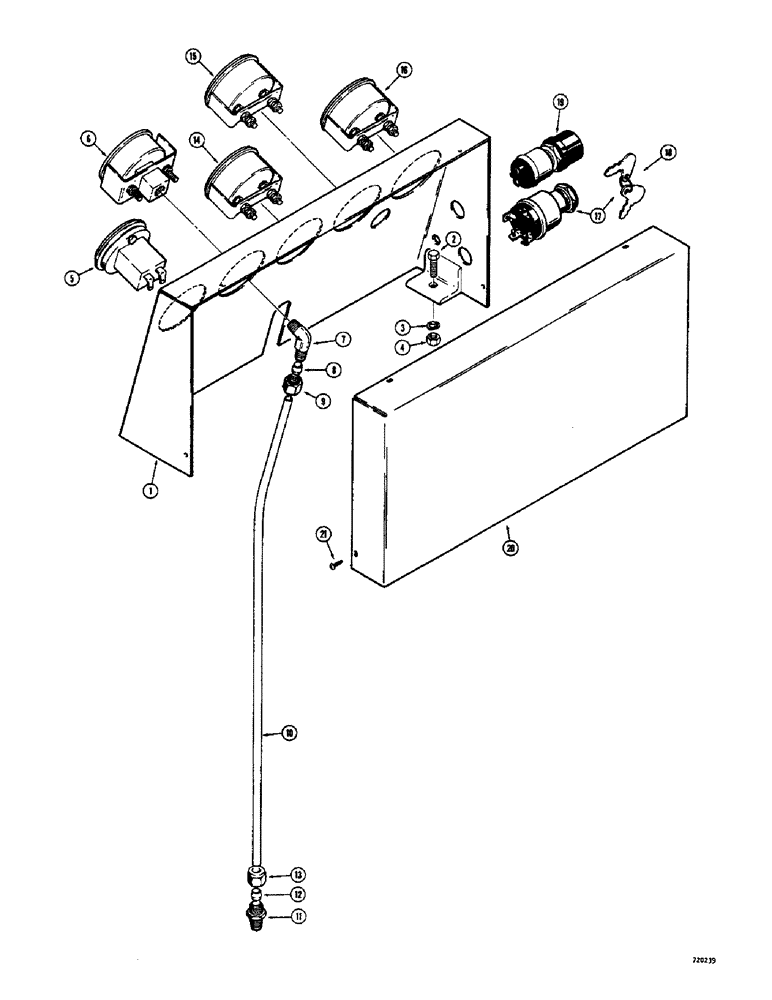

Схема запчастей Case IH 1700-SERIES - (082) - INSTRUMENT PANEL, ALL 1737S MODELS, LATE PRODUCTION 1737 AND 1740 MODELS WITH NYLON VACUUM TUBE (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

D53043

PANEL - instrument, front

1шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

25-104

NUT,1/4"-20, G5

2шт.

5

D53047

GAUGE

METER - hour

1шт.

6

T41949

GAUGE

- hydraulic vacuum

1шт.

22-5113

ELBOW ASSEMBLY - 90 degrees, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

8

222-5185

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

9

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

10

D54634

TUBE

- vacuum, long (Nylon)

1шт.

222-5102

COUPLING, BREAK AWAY,7/16"-24 x 1/8" NPT

CONNECTOR ASSEMBLY - straight, male, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

12

222-5185

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

13

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

14

A19348

ELECTRICAL GAUGE

METER - amp

1шт.

15

A19347

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

16

A19346

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

17

D35092

SWITCH

- electrical, Includes: Ref. 18

1шт.

18

D36822

KEY

- switch (Set of two)

1шт.

19

T40340

IGNITION SWITCH

BUTTON - starter

1шт.

20

T40609

COVER

PANEL - instrument, back

1шт.

21

187-1057

SELF-TAP SCREW,Slotted Pan Hd, #6 x 1/2"

SCREW - sheet metal (#6 x 1/2")

4шт.

Выбрано товаров: 23
