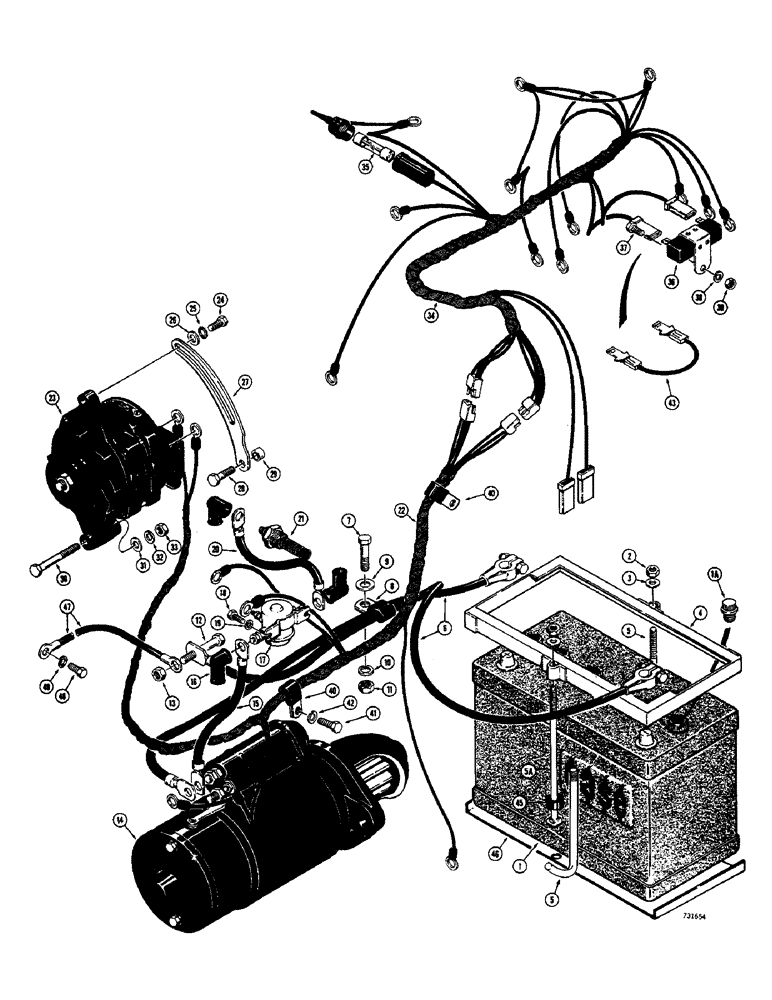

Запчасти Case IH 1700-SERIES (078) - ELECTRICAL SYSTEM 1740 (55) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

12 volt, dry charge (Service replacement) (Replaces A60878), Includes Ref. 1A

1шт.

1a

A60553

CAP

Battery, non-spill

6шт.

2

131-351

LOCK NUT,5/16"-18, GA

Hex

2шт.

3

195-21

WASHER,5/16"

1шт.

4

D53412

BATTERY BOX

HOLDDOWN, Serial Range: -9817612

1шт.

4

D55559

HOOK

HOLDDOWN - battery, Not shown, Start Serial: 9817612

1шт.

5

T42409

SPARE PART Special, Serial Range: -9817612

2шт.

5a

11-5160

BOLT

Round head, sq. shoulder (5/16"-18 NC x 9"), Start Serial: 9817612

2шт.

6

D61079

CABLE

Battery

2шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

8

D48438

CLAMP

Battery cable

1шт.

9

95-8

WASHER,1/2"

Flat

1шт.

10

92-8

LOCK WASHER,1/2"

1шт.

11

25-108

NUT,1/2"-13, G5

Hex

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

13

25-106

NUT,3/8"-16, G5

Hex

1шт.

14

REF

INSTRUCTION

STARTER - motor (Parts list Figure 058)

1шт.

15

D51990

CABLE PULLING GRIP

, Serial Range: Starter-solenoid

1шт.

16

A21753

CAP

NIPPLE - moisture proof

3шт.

17

A57069

SOLENOID

Manifold heater

1шт.

18

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

19

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER - med. sect. lock (1/2") Zinc plated

2шт.

20

D51989

WIRE HARNESS

CABLE -, Serial Range: solenoid-heater

1шт.

21

REF

INSTRUCTION

HEATER - manifold

1шт.

22

D53390

SPARE PART Electrical, engine (Used with manifold preheater)

1шт.

22

D54736

HARNESS

Electrical, engine (Used without manifold preheater)

1шт.

23

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - parts list page 062

1шт.

24

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

25

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

1шт.

26

195-109

WASHER,3/4"

WASHER - plain (5/16") Zinc palted

1шт.

27

A59167

STRAP

Alternator adjusting

1шт.

28

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

HHCS - 3/8" - 16 NC x 1-1/4"

1шт.

29

G11271

SPACER

Strap

1шт.

30

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

31

195-522

WASHER,5/16"

WASHER - plain (3/8") Zinc plated

1шт.

32

192-21

LOCK WASHER,3/8"

1шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

34

D53388

SPARE PART Electrical, panel (Used with manifold pre-heater)

1шт.

34

D54737

HARNESS

SPARE PART Electrical, panel (Models without pre-heater)

1шт.

35

223-31

FUSE,10 Amp, Type 3AG

FUSE - 30 amp, AGC

1шт.

36

F22316

RESISTOR,75 Ohms 0.2 Amps DC

Alternator, if used

1шт.

37

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

38

92-4

LOCK WASHER,1/4"

1шт.

39

25-104

NUT,1/4"-20, G5

1шт.

40

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

Harness

2шт.

41

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

42

92-6

LOCK WASHER,3/8"

1шт.

43

D55150

ELECTRICAL WIRE

WIRE Jumper, if used

1шт.

44

D49498

CLAMP

Battery cable (Mounts at master brake cylinder)

1шт.

45

G46096

RETAINER

Bolt, rubber

2шт.

46

D55621

SPARE PART TRAY - battery (Bolt retainer), Start Serial: 9817612

1шт.

47

D43390

CABLE

Ground, if used

1шт.

48

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

49

92-6

LOCK WASHER,3/8"

1шт.
