Запчасти Case IH 1700-SERIES (061A) - D55127 ALTERNATOR, 148 SPARK ENGINES, WITH CAPACITOR DISCHARGE IGNITION SYSTEM (55) - ELECTRICAL SYSTEMS

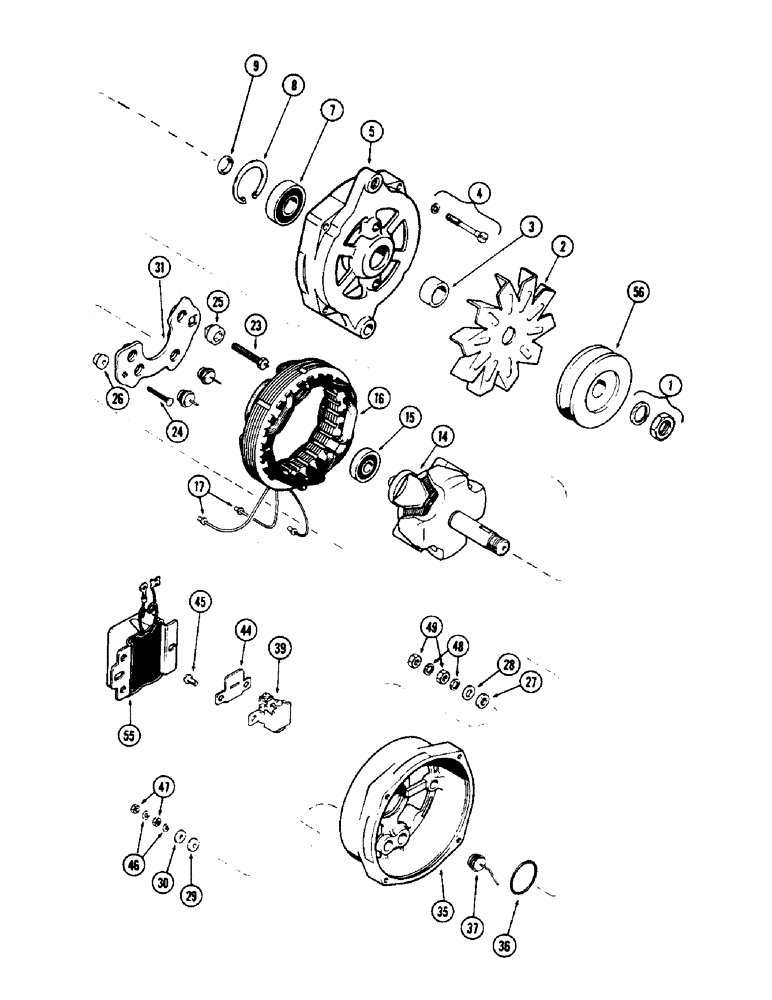

Схема запчастей Case IH 1700-SERIES - (061A) - D55127 ALTERNATOR, 148 SPARK ENGINES, WITH CAPACITOR DISCHARGE IGNITION SYSTEM (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

D55127

ALTERNATOR

ALTERNATOR ASSY. - (Eltra #ANC-7601-S) (Order 1-A45330 alternator, 1-A42777 pulley & 1-A41955 regulator) (Production only), Inlcudes: Ref. 1 - 49

1шт.

A45330

ALTERNATOR

ALTERNATOR ASSY. - (Eltra #ANC-6601-S) (Less pulley & regulator) (Repairs only) (Replaces A43942), Inlcudes: Ref. 1 - 49

1шт.

A45324

ALTERNATOR

SPARE PART ALTERNATOR - 12 Volt 35 AMP

1шт.

87746858

REMAN-ALTERNATOR

1700 Skid Steer Loader, Replaces Reman P/N 104025A1R

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 35 AMP Alternator

1шт.

1

A40581

KIT

KIT - nut & washer, rotor shaft

1шт.

2

A41373

FAN

FAN - ventilating

1шт.

3

A43948

SPARE PART SPACER - rotor shaft

1шт.

4

A41094

BOLT

KIT - bolt, thru (Set of 4)

1шт.

5

A43944

SPARE PART HEAD ASSY - drive end, Inlcudes: Ref. 7 - 8

1шт.

7

A41068

BALL BEARING

BEARING - ball

1шт.

8

A43945

SPARE PART RING - snap, bearing retainer

1шт.

9

A40579

SPARE PART RETAINER - seal

1шт.

14

A45332

ROTOR

ROTOR ASSY - alternator, Inlcudes: Ref. 15

1шт.

15

A41077

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - ball, rotor shaft

1шт.

16

A43949

STATOR

STATOR ASSY. - alternator

1шт.

17

A41065

KIT

KIT - eyelet, wire end (Set of 6)

1шт.

A43950

SPARE PART KIT - stud, terminal, Inlcudes: Ref. 23 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

STUD - battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

STUD - auxiliary terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - insulation, battery terminal

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - insulation, auxiliary terminal

2шт.

27

NSS

NOT SOLD SEPARAT

WASHER - insulating, battery terminal

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - plain, battery terminal

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - insulating, auxiliary terminal

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - plain, auxiliary terminal

1шт.

31

A44701

PLATE

HEAT SINK ASSY. - w/positive diodes

1шт.

35

A45333

ASSY. - slip ring end, Inlcudes: Ref. 36 - 37

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - sealing

1шт.

37

A44180

KIT

DIODE KIT - negative (Pkg. of 3)

1шт.

39

A45467

BUSHING

HOLDER ASSY. - brush

1шт.

44

A43943

SPARE PART INSULATION - cover, brush holder

1шт.

45

182-1012

SCREW,Rnd Hd, #10 - 24 x 3/8"

SCREW - #10-24 x 3/8" mach

2шт.

46

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

47

129-667

NUT,#10-32, LH

NUT - #10 N.F. hex., jam

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-902

NUT,1/4"-28

NUT - hex 1/4"-28

2шт.

55

A41955

REGULATOR

REGULATOR ASSY. - voltage

1шт.

56

A42777

PULLEY

PULLEY - drive, alternator

1шт.

Выбрано товаров: 41
