Запчасти Case IH 1700-SERIES (058) - A39839 STARTER (55) - ELECTRICAL SYSTEMS

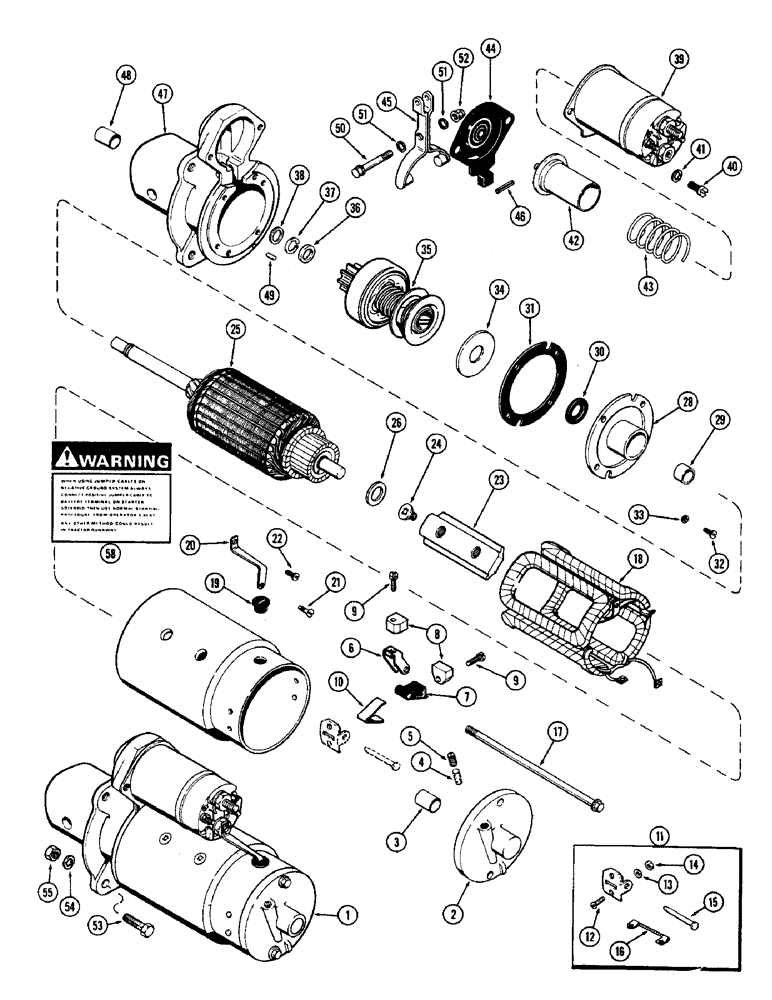

Схема запчастей Case IH 1700-SERIES - (058) - A39839 STARTER (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

A39839

STARTING MOTOR

STARTER ASSY. - (Delco-Remy #1109143), Inlcudes: Ref. 2 - 52

1шт.

2

A41870

FRAME

HEAD ASSY. - commutator end, Inlcudes: Ref. 3 - 5

1шт.

3

R15020

BUSHING

- (9/16 x 11/16 x 29/32")

1шт.

4

A41979

WICK

- oil

1шт.

5

221-1041

PLUG

- oil wick hole (1/8" P.T., sltd. hd.)

1шт.

6

A40217

HOLDER

- brush, ground

2шт.

7

R15027

HOLDER

- brush, insulated

2шт.

8

A25356

BRUSH, COMMUTATOR

BRUSH

4шт.

9

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush to holder

4шт.

9

A42124

SCREW,#8 - 32 x 5/8"

- attaching, ground brush

2шт.

10

A25359

SPRING

- brush tension

2шт.

11

A25379

KIT

SUPPORT KIT - brush holder, Inlcudes: Ref. 12 - 16

2шт.

12

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- brush support, #10 x 1/2" N.C. rd. hd.

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

14

R15032

X

NUT - #10 N.C. hex

2шт.

15

A41983

PIN

-, Serial Range: holder-support

1шт.

16

A42494

ELECTRICAL WIRE

LEAD - brush ground

1шт.

17

A25552

BOLT

BOLT - thru

2шт.

18

A25548

COIL

ASSY. - field

1шт.

19

A41980

GROMMET

- coil connector (In frame)

1шт.

20

A40225

CONNECTOR, ELEC

CONNECTOR -, Serial Range: coil-solenoid

1шт.

21

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- connector to coil, #10 x 7/16" N.F. rd. hd.

1шт.

22

A42023

SCREW,#10 - 32 x 1/2"

-, Serial Range: connector-solenoid

1шт.

23

A25391

SHOE

- pole

4шт.

24

A42127

SCREW,3/8" - 24 x 0.20"

- pole shoes

8шт.

25

A25547

ARMATURE

1шт.

26

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- brake, commutator end

1шт.

A40223

PLATE

ASSY. - center bearing, Inlcudes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - center bearing

1шт.

29

A41982

BUSHING

BEARING - center (3/4 x 1-1/4 x 13/32")

1шт.

30

A40228

OIL SEAL

SEAL - oil, center brg. (3/4 x 1-1/4 x 1/4")

1шт.

31

A41981

GASKET

- center bearing

1шт.

32

A41959

SCREW,#10 - 32 x 3/8"

- center brg. to drive hsg.

4шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

34

R15043

WASHER

- thrust, center bearing

1шт.

35

A43652

DRIVE

ASSY. - starter (10 teeth)

1шт.

35

87421540

REMAN-STARTER DRIVE

1700-SERIES CASE UNI LOADER SKID STEER LOADER, ASSY, Reman for New PN A43652

1шт.

35

87421541

CORE-STARTER DRIVE

Return Part Number

1шт.

36

R15049

COLLAR

- stop, starter drive

1шт.

37

R15048

RING

- snap, collar retaining

1шт.

38

A25385

WASHER

- thrust, starter drive

1шт.

39

G44891

SOLENOID

ASSY. - (See Figure 060)

1шт.

40

A42023

SCREW,#10 - 32 x 1/2"

- solenoid to drive hsg.

1шт.

41

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

42

A40218

PLUNGER

- solenoid

1шт.

43

A40221

SPRING

- plunger return

1шт.

44

A40222

BOOT

- solenoid cover

1шт.

45

A40220

LEVER

- shift

1шт.

46

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, , lever to plunger 3/16" x 13/16", Slotted

1шт.

47

A43653

HOUSING

ASSY. - drive end, Inlcudes: Ref. 48

1шт.

48

A40227

BUSHING

- housing (1/2 x 9/16 x 25/32")

1шт.

49

R15041

PIN - locating, drive end hsg.

1шт.

50

A40520

BOLT

PIVOT - shift lever

1шт.

51

A41984

WASHER

SEAL - pivot stud

2шт.

52

131-4

LOCK NUT,5/16"-18, GB

NUT - pivot stud

1шт.

53

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Starter mtg. Hex, 3/8"-16 x 2", G5

3шт.

54

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

55

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

58

321-2788

DECAL

- warning

1шт.

Выбрано товаров: 59
