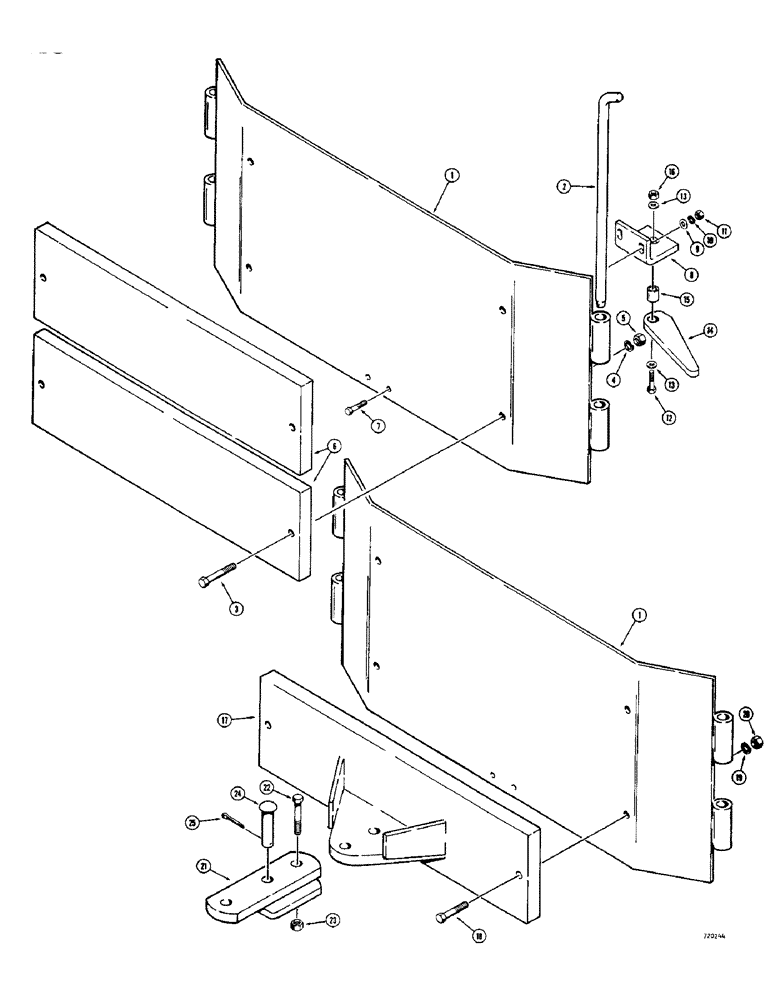

Запчасти Case IH 1700-SERIES (136) - SWING OUT COUNTERWEIGHTS (39) - FRAMES AND BALLASTING

1

D55312

WEIGHT

COUNTERWEIGHT - swing out, Serial Range: -9818828

1шт.

1

D58164

COUNTERWEIGHT - swing out, Start Serial: 9818828

1шт.

2

D53270

PIN - hinge

2шт.

3

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2" (Zinc plated) Used with 1st or 2nd add on counterweight

2шт.

3

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

HHCS - 1/2" - 13 NC x 3-3/4" (Zinc plated) Used with 3rd or 5th add on counterweight

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

6

D53413

WEIGHT

COUNTERWEIGHT - rear, 78 lb. (Add on)

1шт.

7

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(D55299 angle) Hex, 3/8"-16 x 1 3/4", G5

2шт.

7

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4" (D58168 angle)

2шт.

8

D55299

ANGLE - cam support (D55312 counterweight)

1шт.

8

D58168

ANGLE - cam support (D58164 counterweight)

1шт.

9

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

9

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

10

92-6

LOCK WASHER,3/8"

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

11

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

14

D55298

CAM - counterweight (1740 model)

1шт.

15

D55300

TUBE

SPACER - cam

1шт.

16

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, hex. (3/8" - 16 NC)

1шт.

17

D55528

COUNTERWEIGHT AND DRAWBAR ASSEMBLY, model 1737s

1шт.

18

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-3/4" (Zinc plated), model 1737s

2шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Model 1737s 1/2"

2шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

Model 1737's 1/2"-13, G5

2шт.

21

D55525

DRAWBAR, SWINGING

DRAWBAR - hitch, counterweights, model 1737s

1шт.

22

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Model 1737s Hex, 3/4"-10 x 3", G5

1шт.

23

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, , Model 1737s 3/4"-10, GB

1шт.

24

VB1646

CLEVIS

PIN - clevis, counterweights and drawbar, model 1737s

1шт.

25

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Counterweights and drawbar, model 1737s 1/8" x 1 1/4"

1шт.
