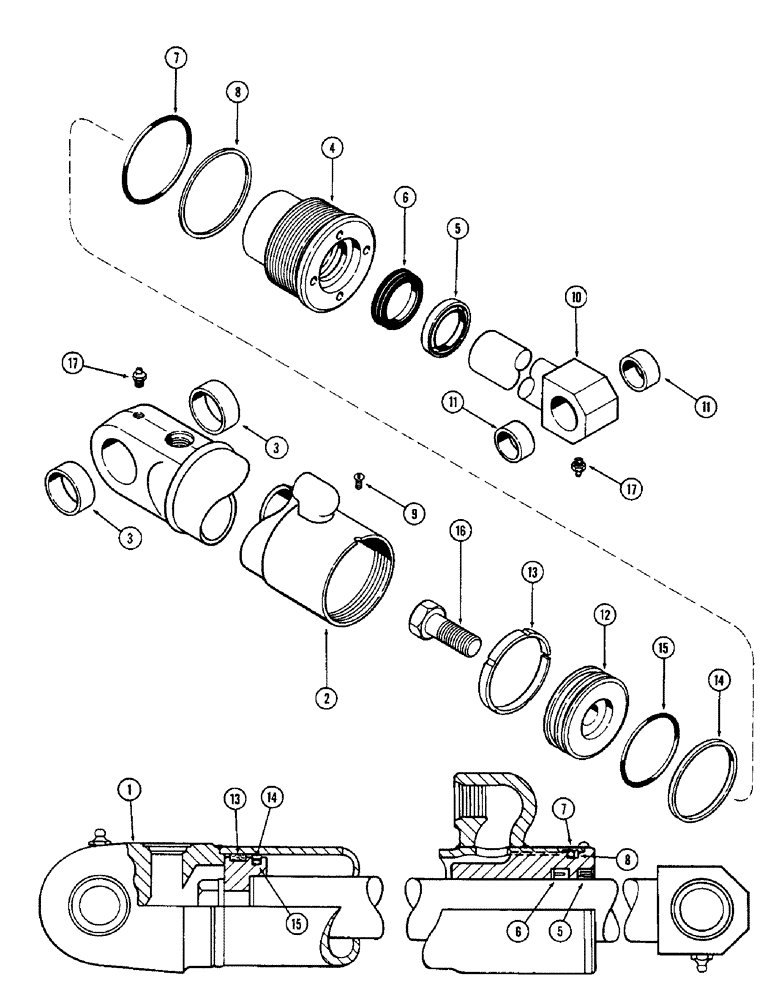

Запчасти Case IH 1530 (134) - LIFT CYLINDER, USED ON ALL MODELS, USED BEFORE TRACTOR SERIAL NO. 9818251 (09) - CHASSIS/ATTACHMENTS

1

G34244

CYLINDER

- lift, 3" dia. x 28" stroke

2шт.

When replacing G32029, G33888, G32935 or G33754 cylinder with G34244 cylinder, also use D16862 kit in Figure 070.

1шт.

For identification of this cylinder, compare with tube weldment, Ref. 2.

1шт.

2

G34245

TUBE - cylinder body 35.22" L

1шт.

3

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

- tube

2шт.

F34185

GLAND ASSEMBLY - use G35218 gland - see below, has identification ring

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND, has identification ring

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - outer, piston rod

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3" x 3-1/4" x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- back-up, gland "O" ring

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

10

G34249

ROD

- piston (1-1/2" dia.)

1шт.

11

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- piston rod

2шт.

12

G33747

PISTON

1шт.

13

G32033

RING

- wear, piston

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

14

G32034

RING

- seal, piston (2-7/8 x 3 x 5/32" teflon)

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

15

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - piston (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

16

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

G32269

KIT

SEAL KIT - cylinder repair, Includes: Refs. 5, 6, 7, 8, 13, 14 and 15

1шт.

1

G34244

CYLINDER

- lift, 3" dia. x 28" stroke, loader

2шт.

When replacing G32029, G33888, G32935 or G33754 cylinder with G34244 cylinder, also use D16862 kit in Figure 070.

1шт.

For identification of this cylinder, compare with tube weldment, Ref. 2.

1шт.

2

G34245

TUBE - cylinder body 35.22" L

1шт.

3

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

- tube

2шт.

G35218

GLAND

ASSEMBLY, is stamped with cylinder part number

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND AND CENTER RING, is stamped with cylinder part number

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - outer, piston rod

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

6

D36969

CUP

SEAL - piston rod

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- back-up

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

10

G34249

ROD

- piston, 1-1/2" dia.

1шт.

11

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- piston rod

2шт.

12

G33747

PISTON

1шт.

13

G32033

RING

- wear, piston

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

14

G32034

RING

- seal, piston

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

15

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - piston

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

16

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

G32269

KIT

- seal, cylinder repair, Includes: Refs. 5, 6, 7, 8, 13, 14 and 15

1шт.
