(114) - SIDE SCREENS, ALL MODELS WITHOUT SIDE SCREENS

Запчасти Case IH 1530 (114) - SIDE SCREENS, ALL MODELS WITHOUT SIDE SCREENS (09) - CHASSIS/ATTACHMENTS

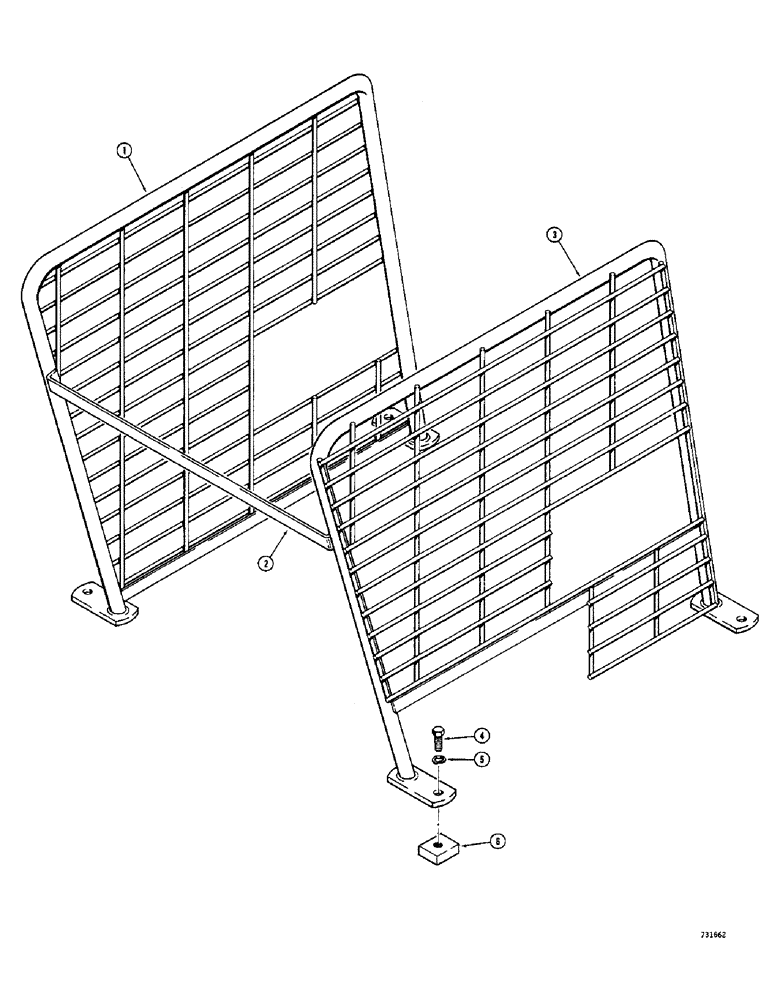

Схема запчастей Case IH 1530 - (114) - SIDE SCREENS, ALL MODELS WITHOUT SIDE SCREENS (09) - CHASSIS/ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D60900

GUARD

Arm, LH

1шт.

2

D60901

GUARD

Arm, RH

1шт.

3

D60940

SPARE PART BAR - cross, brace

1шт.

4

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

5

192-23

LOCK WASHER,1/2"

4шт.

6

REF

INSTRUCTION

BLOCK - tapped

4шт.
