Запчасти Case IH 1530 (082) - VARIABLE SPEED CONTROL VALVE (08) - HYDRAULICS

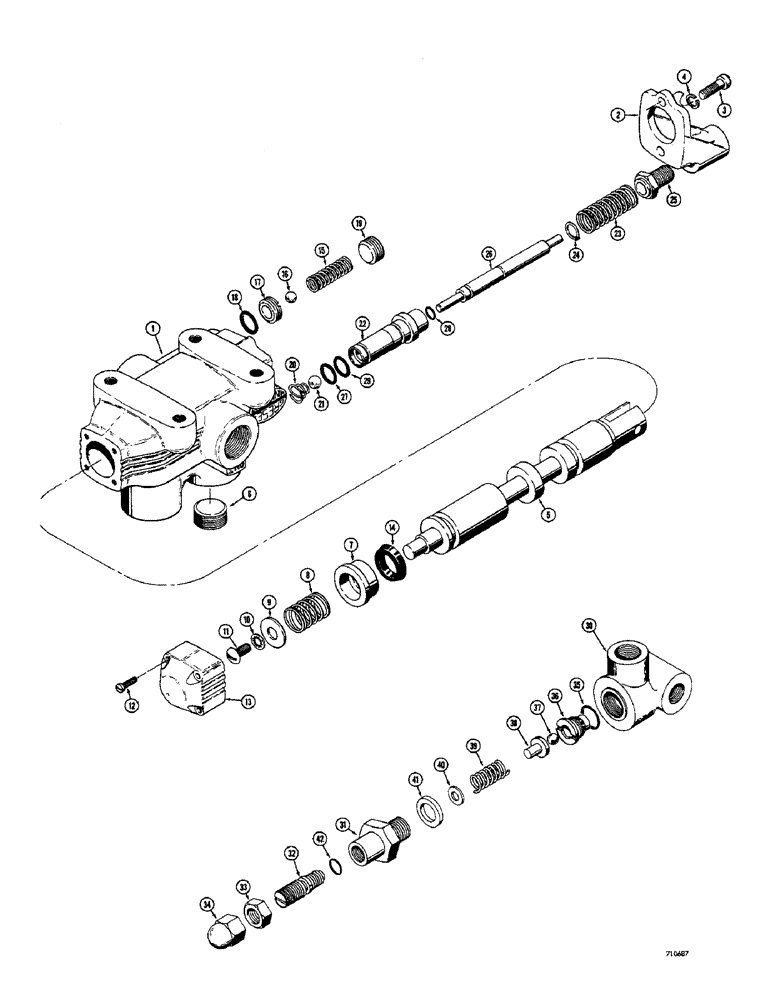

Схема запчастей Case IH 1530 - (082) - VARIABLE SPEED CONTROL VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

D53435

VALVE

ASSEMBLY - variable speed control, Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

D54283

BRACKET

- push rod

1шт.

3

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

RHMS - 1/4" - 20 NC x 5/8"

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

6

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

PLUG - relief

1шт.

7

D54284

COLLAR - spool

1шт.

8

T40187

SPRING

- centering

1шт.

9

195-525

WASHER,3/8", SAE

- spring

1шт.

10

36628

LOCK WASHER

- lock

1шт.

11

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - spring assembly

1шт.

12

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

CAP SCREW - bonnet

4шт.

13

T40184

CAP

BONNET - end

1шт.

T42192

KIT

- seal, Includes: Ref. 14 - 18

1шт.

14

C11891

SEAL

- V-cup

2шт.

15

T40189

SPRING

- relief

1шт.

16

211-11

BALL,3/8" Dia

- relief, . 3/8" Dia

1шт.

17

C11896

SEAT

- relief

1шт.

18

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O" ring, relief

1шт.

19

D23723

PLUG

- valve port

1шт.

20

D54285

SPRING

- ball

1шт.

21

211-12

BALL,7/16 Dia

- check

1шт.

22

D54286

ROD

GUIDE - rod

1шт.

23

D54287

SPRING

- push rod

1шт.

24

D54292

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

1шт.

25

D54288

ADJUSTMENT SCREW,Hex, M10 x 1.25 x 140mm, Cl 8.8

SCREW - adjusting

1шт.

26

D54289

ROD

- push

1шт.

27

D54291

O-RING

SEAL - "O" ring

1шт.

28

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

29

D54290

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

D53480

VALVE

ASSEMBLY - relief, Includes: Ref. 30 - 42

2шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

31

34113

BODY

- relief valve

1шт.

32

34110

ADJUSTMENT SCREW

- adjustable

1шт.

33

34111

X

NUT - jam, adjustable screw

1шт.

34

34109

CUP - acorn, relief valve

1шт.

T42111

KIT

- seal repair, relief valve, Includes: Ref. 35 - 42

1шт.

36

D46222

SEAT

- relief valve

1шт.

37

211-12

BALL,7/16 Dia

- relief valve

1шт.

38

CAS34120

BUSHING

SPACER - ball seat spring, relief valve

1шт.

39

D24049

VALVE SPRING

SPRING - relief, relief

1шт.

40

36660

WASHER

- relief spring

1шт.

41

34115

GASKET

- relief cap, valve

1шт.

42

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

SEAL - "O" ring, screw, relief valve

1шт.

35

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, seat, relief valve

1шт.

Выбрано товаров: 46
