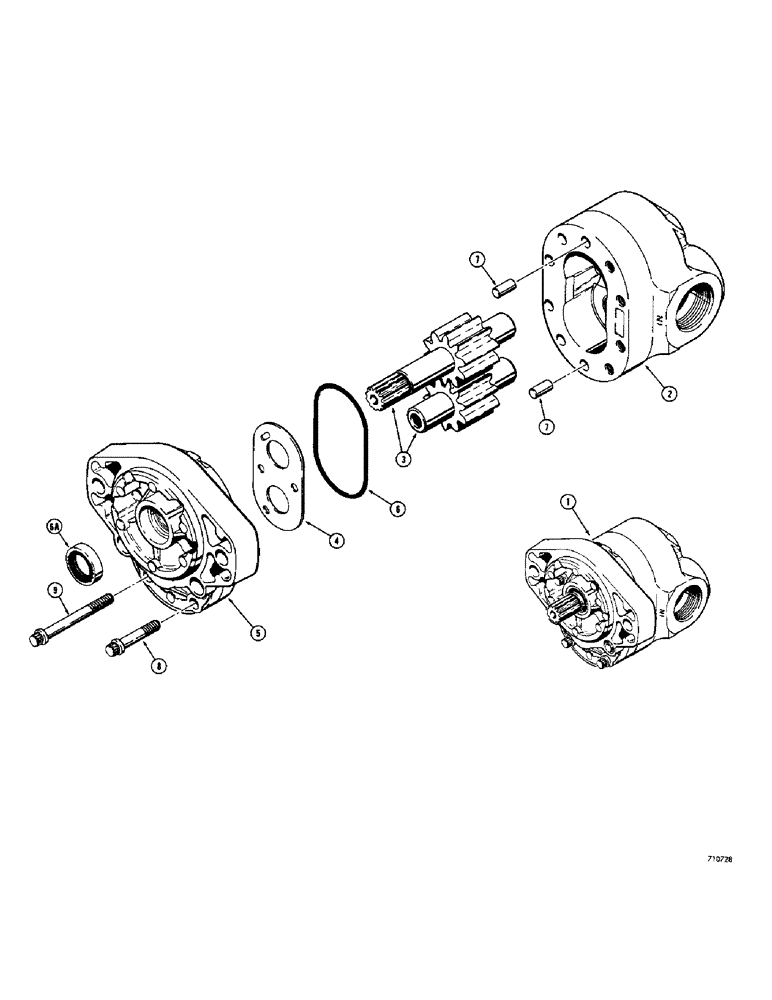

Запчасти Case IH 1530 (080) - HYDRAULIC PUMPS (08) - HYDRAULICS

1

D53434

PUMP

- hydraulic (TRW #19-920185-01), Includes: Ref. 2 - 9, Serial Range: -9818251

1шт.

1

87644730R

REMAN-HYD PUMP

1530 SERIES-B CASE UNI-LOADER SKID STEER LOADER (S/N 9816704 THRU 9825291), Serial Range: -9818251, Reman for New PN D53434

1шт.

1

87644730C

Return Number

CORE-HYDRAULIC PUMP

1шт.

1

RR43429

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - N.A. Only

1шт.

1

RC43429

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - N.A. Only

1шт.

1

D57311

PUMP - hydraulic (TRW #19-920186-01), Includes: Ref. 2 - 9, Start Serial: 9818251

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - pump (Includes bushings)

1шт.

3

D54576

GEAR

SET - drive and driven, D53434 pump

1шт.

3

D58200

GEAR SET - drive and driven, D57311 pump

1шт.

4

D50104

PLATE

- pressure

1шт.

D54577

COVER

ASSEMBLY - front, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - front (Includes bushings and seals)

1шт.

6

F30271

SEAL

- "O" ring, pressure plate

1шт.

6a

D52477

SEAL

- shaft (Replaces 52477)

1шт.

7

D50106

DOWEL

- cover

2шт.

8

166-48

SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

CAP SCREW - 12 point (3/8" - 16 NC x 1-3/4")

3шт.

9

166-52

12 PT SCREW,Flg, 3/8" - 16 x 2 3/4", Gr 8

CAP SCREW - 12 point (3/8" - 16 NC x 2-3/4")

5шт.
