Запчасти Case IH 1530 (078[1]) - HYDRAULIC FILTER, 6 MOUNTING HOLES IN HEAD SERVICE REPLACEMENT (08) - HYDRAULICS

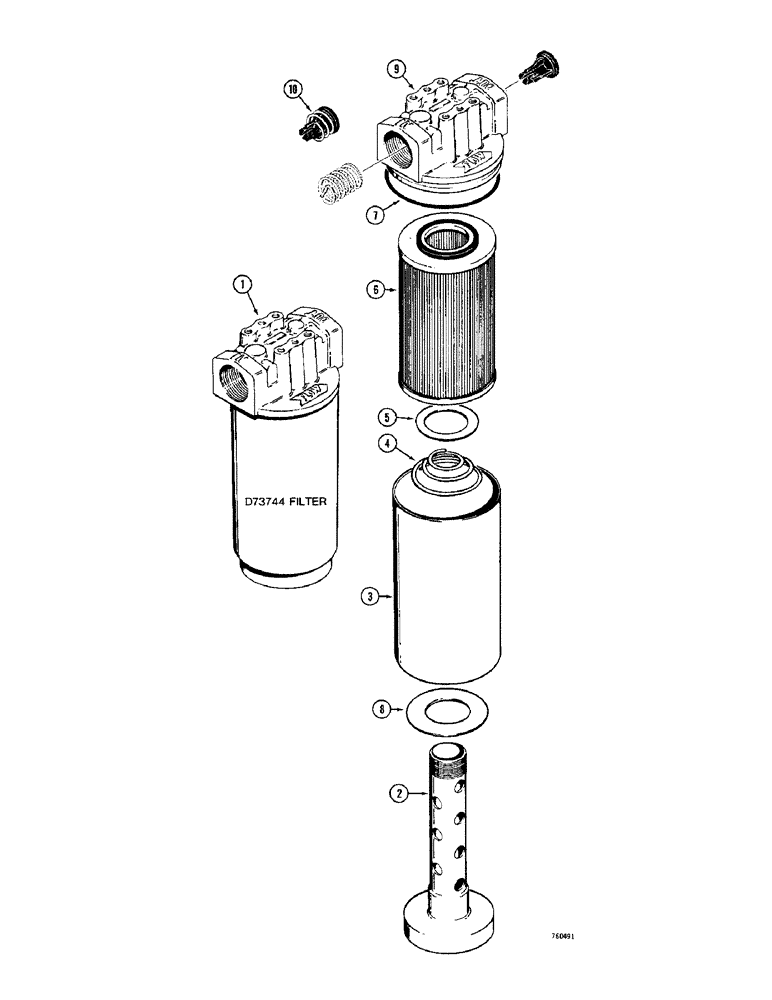

Схема запчастей Case IH 1530 - (078[1]) - HYDRAULIC FILTER, 6 MOUNTING HOLES IN HEAD SERVICE REPLACEMENT (08) - HYDRAULICS
9
5
2
8
6
3
7
10
1
4

Артикул

Название

Примечание

Количество

1

D73744

FILTER, ENGINE OIL

FILTER - hydraulic oil, Includes: Ref. 2 - 10

1шт.

L36030

HOUSING

ASSEMBLY - with filter, Includes: Ref. 2 - 5

1шт.

2

T29796

SUPPORT

CENTER POST - filter

1шт.

3

T29794

HOUSING

- filter

1шт.

4

T29793

SPRING

- filter element

1шт.

5

T42195

WASHER

- backup

2шт.

D73743

ELEMENT

ASSEMBLY, Includes: Ref. 6 - 7

1шт.

6

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

7

W12214

GASKET

SEAL - "O" ring, filter head

1шт.

8

T29795

GASKET

-, Serial Range: post-housing

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

10

D73742

VALVE - bypass

1шт.

Выбрано товаров: 12
