Запчасти Case IH 1530 (076) - AUXILIARY HYDRAULIC SYSTEMS (08) - HYDRAULICS

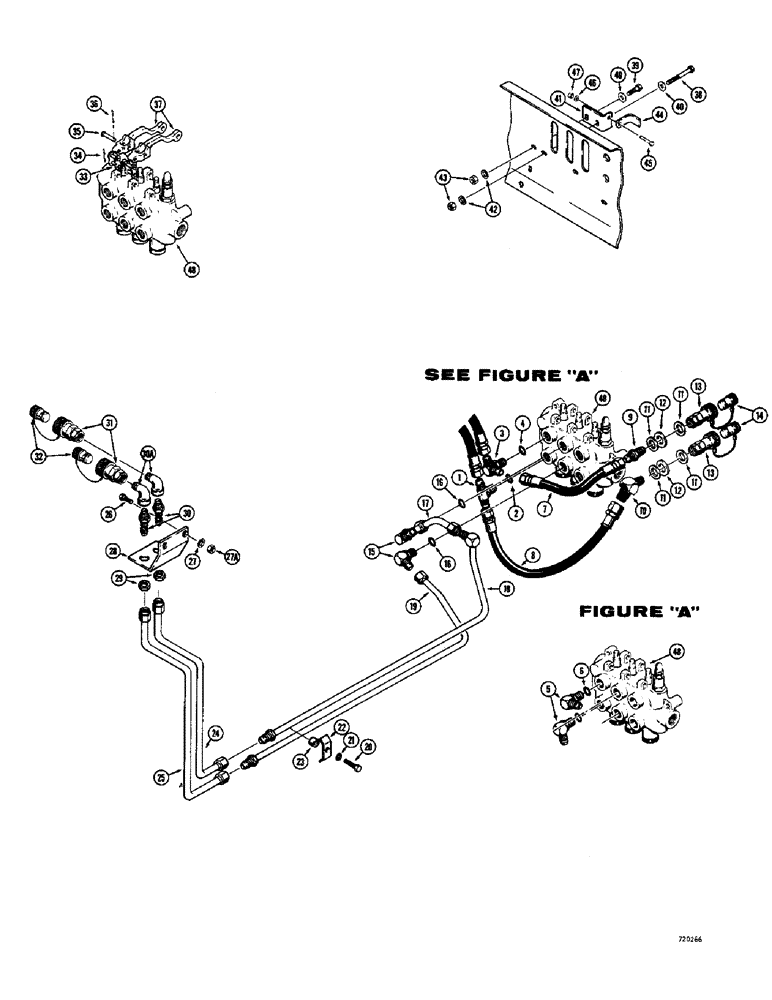

Схема запчастей Case IH 1530 - (076) - AUXILIARY HYDRAULIC SYSTEMS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, male (Models with loader arm and front auxiliary hydraulics), Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Front auxiliary hydraulics

1шт.

3

D53471

TEE

- special (Models with loader arm and front auxlilary hydraulics), Includes: Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Front auxiliary hydraulics

1шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degree (Front auxiliary hydraulics), Incl. Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Front auxiliary hydraulics

1шт.

7

D48532

HOSE ASSY.

HOSE - valve to coupling (13-1/64" long), front auxiliary hydraulics

1шт.

8

D27478

HOSE ASSY.

HOSE - valve to coupling (22" long), front auxiliary hydraulics

1шт.

9

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, male, front auxiliary hydraulics

1шт.

10

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

ADAPTER - 45 degree, male, front auxiliary hydraulics

1шт.

11

T40267

WASHER

BUSHING - 14 ga. steel, front auxiliary hydraulics

4шт.

12

T42340

BUSHING

SPACER - rubber, front auxiliary hydraulics

2шт.

13

T40265

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female, front auxiliary hydraulics

2шт.

14

T40274

CAP

- dust, coupling, front auxiliary hydraulics

2шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, male, rear auxiliary hydraulics, Incl. Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Rear auxiliary hydraulics

1шт.

17

D53564

TUBE - at valve, upper, rear auxiliary hydraulics

1шт.

18

D54613

TUBE - at valve, upper, rear auxiliary hydraulics

1шт.

19

D54615

TUBE - at valve, lower, rear auxiliary hydraulics

1шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

A13622

PLATE, LOCKING

CLAMP - tube, rear auxiliary hydraulics

1шт.

23

D33552

BUSHING

SPACER - clamp, rear auxiliary hydraulics

1шт.

24

D54617

TUBE - at coupling, upper, rear auxiliary hydraulics, Serial Range: -9820600

1шт.

24

D58512

TUBE - at coupling, upper, rear auxiliary hydraulics, Serial Range: 9820600-9821289

1шт.

24

D61855

TUBE - at coupling, upper, rear auxiliary hydraulics, Start Serial: 9821289

1шт.

25

D54619

TUBE - at coupling, lower, rear auxiliary hydraulics, Serial Range: -9820600

1шт.

25

D58510

TUBE - at coupling, lower, rear auxiliary hydraulics, Serial Range: 9820600-9821289

1шт.

25

D61853

TUBE - at coupling, lower, rear auxiliary hydraulics, Start Serial: 9821289

1шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

27a

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

28

D54980

PLATE - mounting, rear auxiliary hydraulics

1шт.

29

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

30

D53570

ADAPTER - special, bulkhead, rear auxiliary hydraulics

2шт.

30a

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

- 90 degree, street, rear auxiliary hydraulics

2шт.

31

T40265

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female, rear auxiliary hydraulics

2шт.

32

T40274

CAP

- dust, coupling, rear auxiliary hydraulics

2шт.

33

36640

DRAG LINK

LINK ASSEMBLY - handle, auxiliary hydraulic controls

2шт.

34

132-13

PIN

- cotter (1/16" dia. x 1-1/2"), auxiliary hydraulic controls

2шт.

35

T40551

PIN

- clevis, auxiliary hydraulic controls

2шт.

36

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), , Auxiliary hydraulic controls 1/16" x 3/4"

2шт.

37

T40233

HANDLE

- valve, auxiliary hydraulic controls

2шт.

38

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

1шт.

39

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

40

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

41

D53476

BRACKET - anchor, auxiliary hydraulic controls

1шт.

42

92-6

LOCK WASHER,3/8"

2шт.

43

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

44

D53477

LATCH - valve handle, auxiliary hydraulic controls

1шт.

45

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

46

195-18

WASHER,1/4"

- plain () 1/4"

1шт.

47

131-650

NUT,1/4"-20, GB

NUT - hex., lock (1/4" - 20 NC)

1шт.

48

D55019

VALVE

- control, hydraulic (Parts list Fig. 086), auxiliary hydraulic controls

1шт.

32

T40274

CAP

- dust, coupling, auxiliary hydraulic controls

2шт.

Выбрано товаров: 55
