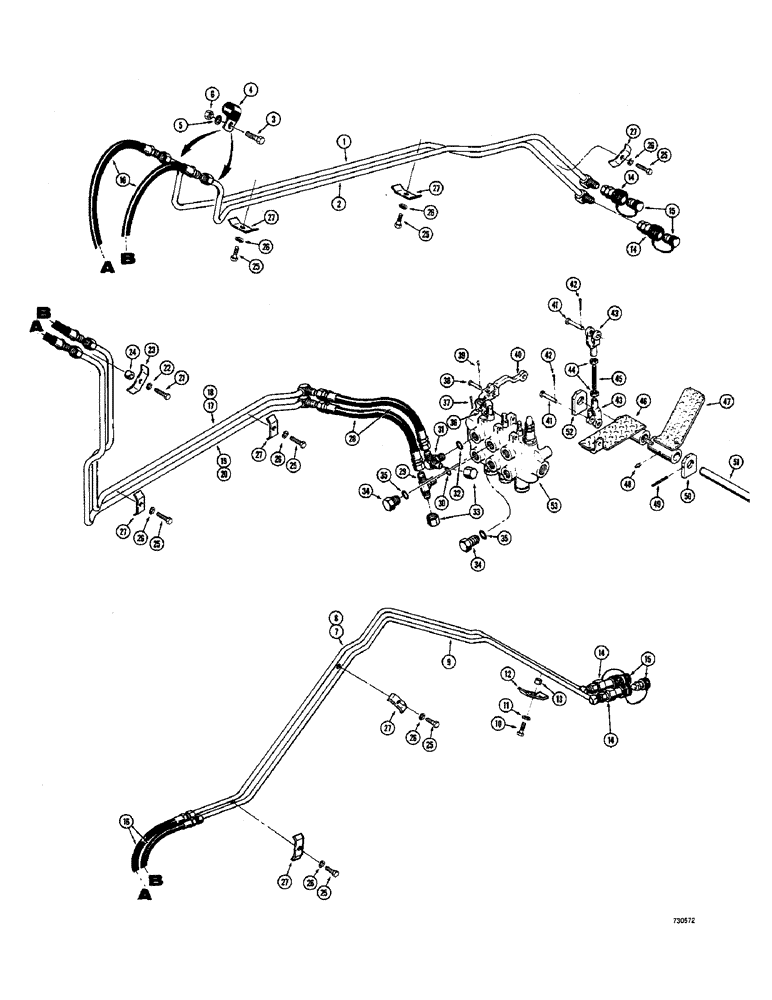

Запчасти Case IH 1530 (074) - AUXILIARY LIFT ARM HYDRAULICS (08) - HYDRAULICS

1

D53382

TUBE - at coupling, outer, models with self leveling feature

1шт.

2

D53380

TUBE - at coupling, inner, models with self leveling feature

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- tube, models with self leveling feature

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

7

D53015

TUBE

- at coupling, upper, models without self leveling feature, Serial Range: -9820600

1шт.

8

D58330

TUBE - at coupling, upper, models without self leveling feature, Start Serial: 9820600

1шт.

9

D53017

TUBE

- at coupling, lower, models without self leveling feature

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

A13622

PLATE, LOCKING

CLAMP - tube, models without self leveling feature

2шт.

13

D33552

BUSHING

SPACER - tube, models without self leveling feature

2шт.

14

T40265

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female, used on all models

2шт.

15

T40274

CAP

- dust, coupling, used on all models

2шт.

16

D25177

HOSE ASSY.

HOSE - auxiliary hydraulics (26" long), used on all models

2шт.

17

D53460

TUBE - on frame, upper, used on all models, Serial Range: -9820600

1шт.

18

D58322

TUBE - on frame, upper, used on all models, Start Serial: 9820600

1шт.

19

D53458

TUBE - on frame, lower, used on all models, Serial Range: -9820600

1шт.

20

D58324

TUBE - on frame, lower, used on all models, Start Serial: 9820600

1шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

A13622

PLATE, LOCKING

CLAMP - tube, used on all models

1шт.

24

D33552

BUSHING

SPACER - clamp, used on all models

1шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4-5шт.

26

92-6

LOCK WASHER,3/8"

4-5шт.

27

A13622

PLATE, LOCKING

CLAMP - tube, used on all models

4-5шт.

28

19207

HOSE ASSY.

HOSE - valve to tube (19-1/8" long), used on all models

2шт.

29

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, male, used on all models, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Used on all models

1шт.

31

D53471

TEE

- special, used on all models, Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Used on all models

1шт.

33

218-756

CAP,37 Degree, 7/8"-14

- Plug (If used), used on all models 37º, 7/8"-14

1шт.

34

86512512

PLUG,7/8" - 14 ORB

Valve port (If used), Used on all models, Incl. Ref. 35 Hex Hd, 7/8"-14 ORB

2шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Used on all models

1шт.

36

36640

DRAG LINK

LINK ASSEMBLY - handle, used on all models

1шт.

37

132-13

PIN

- cotter (1/16" dia. x 1-1/2"), used on all models

1шт.

38

T40551

PIN

- clevis (1/2" dia. x 1-3/8"), used on all models

1шт.

39

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), , Used on all models 1/16" x 3/4"

1шт.

40

T40233

HANDLE

- valve, main frame and related parts, Serial Range: -9820600

1шт.

41

T40252

CLEVIS

PIN - clevis, main frame and related parts, Serial Range: -9820600

2шт.

42

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Main frame and related parts 1/8" x 1", Serial Range: -9820600

2шт.

43

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - clevis, main frame and related parts, Serial Range: -9820600

2шт.

44

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF), Serial Range: -9820600

2шт.

45

T40253

ROD

- connecting, main frame and related parts, Serial Range: -9820600

1шт.

46

T42457

PEDAL

- linkage half, main frame and related parts, Serial Range: -9820600

1шт.

47

T42452

PEDAL

- flip over half, main frame and related parts, Serial Range: -9820600

1шт.

48

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), main frame and related parts, Serial Range: -9820600

1шт.

49

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , Main frame and related parts 3/16" x 2", Slotted, Serial Range: -9820600

1шт.

50

T42449

BRACKET

- pedal, R.H., main frame and related parts, Serial Range: -9820600

1шт.

51

T42451

AXLE PIN

SHAFT - pivot, main frame and related parts, Serial Range: -9820600

1шт.

52

T42450

BRACKET

- pedal, L.H., main frame and related parts, Serial Range: -9820600

1шт.

53

D55019

VALVE

- bucket and auxiliary (Parts list Fig. 086), main frame and related parts, Serial Range: -9820600

1шт.
