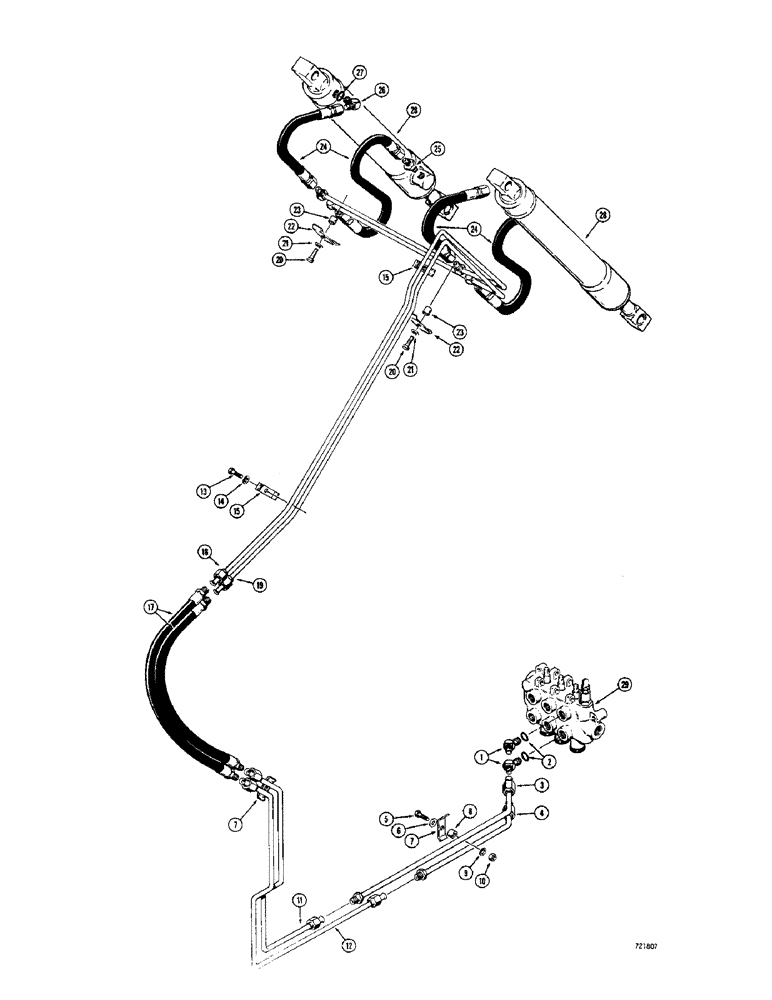

Запчасти Case IH 1530 (072) - LOADER BUCKET HYDRAULICS MODELS WITHOUT SELF LEVELING FEATURE (08) - HYDRAULICS

1

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Male, Incl. Ref 2

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

D54534

TUBE

Upper, at valve

1шт.

4

D54532

SPARE PART Lower, at valve

1шт.

5

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

6

195-25

WASHER,3/8"

3шт.

7

A13622

PLATE, LOCKING

CLAMP - tube

3шт.

8

D33552

BUSHING

SPACER - tube

3шт.

9

92-6

LOCK WASHER,3/8"

3шт.

10

25-106

NUT,3/8"-16, G5

Hex

3шт.

11

D53369

TUBE

Upper

1шт.

12

D53367

TUBE

Lower

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

16

RESERVED

1шт.

17

D25177

HOSE ASSY.

To tilt cylinders (26" long)

2шт.

18

D53010

TUBE

Upper

1шт.

19

D53013

TUBE

Lower

1шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

23

D33552

BUSHING

SPACER - tube

2шт.

24

T40301

HOSE,0.38" ID x 17.00", SAE 100R1

Bucket (17" long)

4шт.

25

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, male

2шт.

26

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

Male, Includes Ref. 27

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

REF

INSTRUCTION

CYLINDER - bucket (See Fig. 138 for cylinders)

2шт.

29

REF

INSTRUCTION

VALVE - bucket (Parts list Fig. 086)

1шт.
