Запчасти Case IH 1530 (064) - CONTROL LEVERS AND LINKAGE (08) - HYDRAULICS

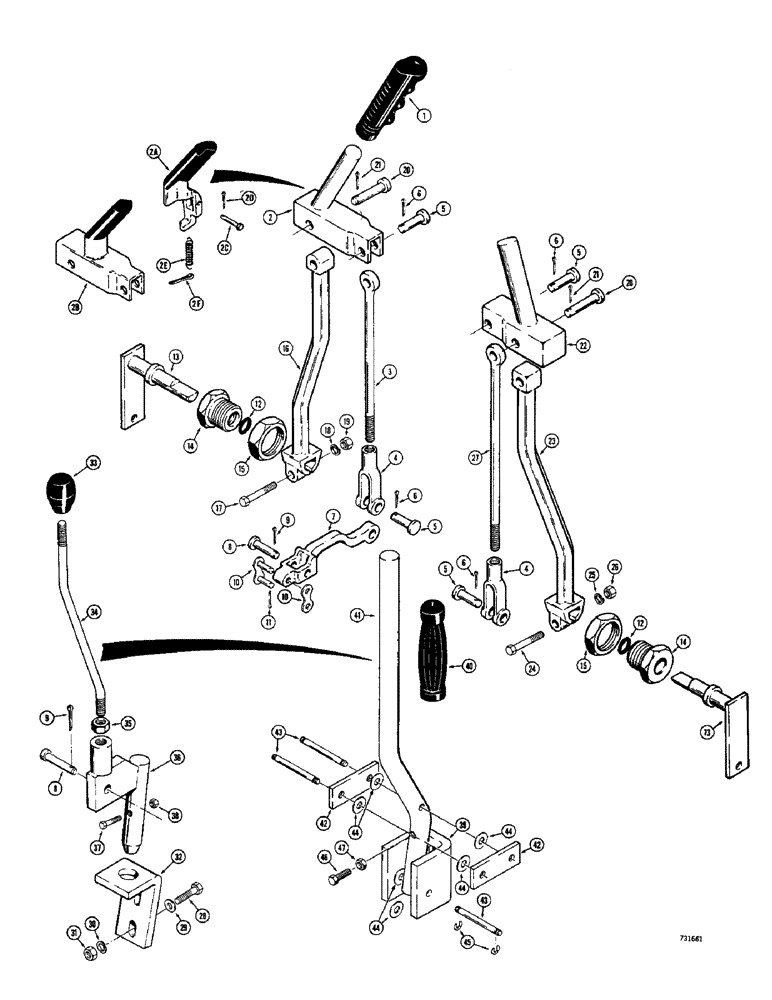

Схема запчастей Case IH 1530 - (064) - CONTROL LEVERS AND LINKAGE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

A70396

COLLAR CLAMP

GRIP - steering handle (Used with D53790 and D53791 handles)

2шт.

2

D53791

HANDLE

- control, L.H. (Early production)

1шт.

2a

D54542

HANDLE - control, L.H. (Late production)

1шт.

2b

D54543

HANDLE

- control, L.H. half (Late production)

1шт.

2c

T22224

AXLE PIN

PIN - clevis

1шт.

2d

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

2e

B18333

SPRING

- handle lock

1шт.

2f

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3

T40230

ROD

- control linkage

1шт.

4

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - control rod

2шт.

5

T40252

CLEVIS

PIN - clevis

4шт.

6

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

7

T40233

HANDLE

LEVER - at control valve

2-4шт.

8

T40551

PIN

- clevis

3-5шт.

9

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

3-5шт.

10

36640

DRAG LINK

LINK ASSEMBLY - handle

2-4шт.

11

132-13

PIN

- cotter (1/16" dia. x 1-1/2")

2-4шт.

12

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - "O" ring, shaft

2шт.

13

T40059

SHAFT

- clutch actuator

2шт.

14

T40060

MOUNTING PARTS

MOUNT - clutch actuator shaft

2шт.

15

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

- hex., jam (1-1/2" - 12 NF)

2шт.

16

D54554

LEVER

- control, L.H.

1шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

20

T40251

PIN

- clevis

2шт.

21

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

22

D53790

HANDLE

- control, R.H. (Early production - requires grip)

1шт.

22

D54758

HANDLE - control, R.H. (Late production - plastic coated)

1шт.

23

T40229

LEVER

- control, R.H.

1шт.

24

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

27

T40231

ROD - control linkage, R.H.

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

25-106

NUT,3/8"-16, G5

- hex. (3/8" - NC)

2шт.

32

D53450

SUPPORT - base, variable speed (Use D16626 kit), Serial Range: -9817529

1шт.

33

D53845

KNOB

- variable speed, Serial Range: -9817529

1шт.

34

D55137

LEVER

- variable speed (Use D16626 kit), Serial Range: -9817529

1шт.

35

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), Serial Range: -9817529

1шт.

36

D53445

BASE

- variable speed lever (Use D16626 kit], Serial Range: -9817529

1шт.

37

113-169

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5, Full Thd

, Serial Range: -9817529

1шт.

38

25-104

NUT,1/4"-20, G5

, Serial Range: -9817529

1шт.

39

D55744

BRACKET

- lever mounting, Start Serial: 9817529

1шт.

40

D55743

HANDLE

GRIP - handle, Start Serial: 9817529

1шт.

41

D55747

LEVER

- variable speed, Start Serial: 9817529

1шт.

42

D55746

DRAG LINK

LINK - connecting, Start Serial: 9817529

2шт.

43

D55745

PIN

- mounting, Start Serial: 9817529

3шт.

44

195-25

WASHER,3/8"

- plain () 3/8", Start Serial: 9817529

1шт.

45

D95091

RING

- retaining, Start Serial: 9817529

6шт.

46

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

, Start Serial: 9817529

1шт.

47

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, hex. (1/4" - 20 NC), Start Serial: 9817529

1шт.

D16626

KIT

- variable speed (Includes items 39 thru 47), Start Serial: 9817529

1шт.

Выбрано товаров: 55
