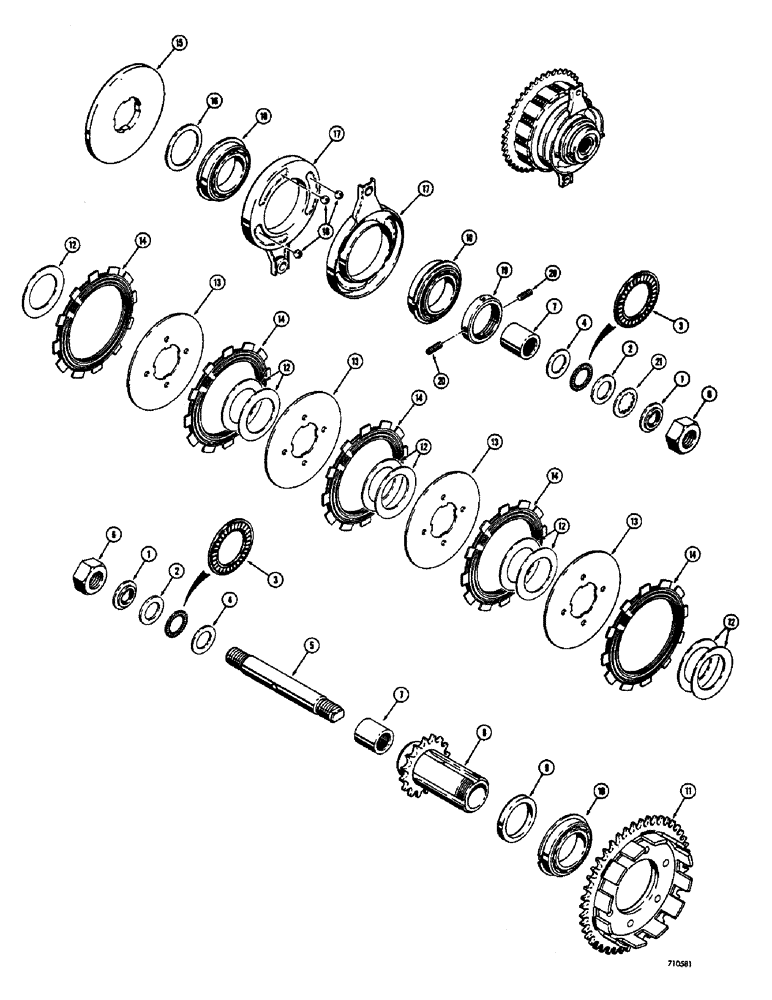

Запчасти Case IH 1530 (050) - FIVE DISC CLUTCH AND SHAFT ASSEMBLY, FORMSPRAG CLUTCHES (06) - POWER TRAIN

1

T40065

WASHER

- seal (7/8"), Serial Range: -9816818

8шт.

2

G46081

BEARING WASHER

RACE - thrust washer, Serial Range: -9816818

8шт.

3

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Serial Range: -9816818

8шт.

4

T40066

WASHER,25.58mm ID x 39.17mm OD x 1.56mm Thk

RACE - thrust, Serial Range: -9816818

8шт.

5

T40024

SHAFT

- clutch, Serial Range: -9816818

4шт.

6

25-1114

NUT,7/8"-14, G5

- hex. (7/8" - 14 NF), Serial Range: -9816818

8шт.

D54926

CLUTCH

ASSEMBLY - with bearings (Use D55802 clutch (2) T40054 pin and (4) 195-25 washers) See Fig. 051G for D55802 clutch, Includes: Ref. 7 - 20, Serial Range: -9816818

4шт.

7

T40012

NEEDLE BEARING

BEARING - needle, Serial Range: -9816818

2шт.

8

T40013

HUB ASSEMBLY - clutch (Use D55928 kit, parts list Fig. 051G), Serial Range: -9816818

1шт.

9

T42272

SPACER

- clutch, Serial Range: -9816818

1шт.

10

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

- cam, Serial Range: -9816818

3шт.

11

T40015

CAP

- drive, riveted construction, Serial Range: -9816818

1шт.

12

T42270

KIT

SPRING SET - release (Set of 9), Serial Range: -9816818

1шт.

13

D54830

DISC

- separator, Serial Range: -9816818

4шт.

14

T40018

DISC

- friction, Serial Range: -9816818

5шт.

15

T40019

PLATE ASSY.

PLATE - pressure, Serial Range: -9816818

1шт.

16

T40020

BUSHING

SPACER - pressure plate, Serial Range: -9816818

1шт.

17

D54633

CAM

, Serial Range: -9816818

2шт.

18

211-12

BALL,7/16 Dia

- cam, Serial Range: -9816818

3шт.

19

D55171

COLLAR

NUT - adjusting, Serial Range: -9816818

1шт.

20

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

SETSCREW - 1/4" - 20 NC x 3/4" (Adj. nut), Serial Range: -9816818

2шт.

21

T40067

LOCK

RING - clutch retainer, Serial Range: -9816818

4шт.

1

T40065

WASHER

- seal (7/8"), Serial Range: 9816818-9820600

8шт.

2

G46081

BEARING WASHER

RACE - thrust washer, one piece hub and sprocket assembly, Serial Range: 9816818-9820600

8шт.

3

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, One piece hub and sprocket assembly, Serial Range: 9816818-9820600

8шт.

4

T40066

WASHER,25.58mm ID x 39.17mm OD x 1.56mm Thk

RACE - thrust, one piece hub and sprocket assembly, Serial Range: 9816818-9820600

8шт.

5

T40024

SHAFT

- clutch, one piece hub and sprocket assembly, Serial Range: 9816818-9820600

4шт.

6

25-1114

NUT,7/8"-14, G5

- hex. (7/8" - 14 NF), Serial Range: 9816818-9820600

8шт.

D55235

CLUTCH

ASSEMBLY - with bearing (When stock is exhausted, use D55818 clutch - parts list Fig. 051A], one piece hub and sprocket, Includes: Ref. 7 - 20, Serial Range: 9816818-9820600

4шт.

7

T40012

NEEDLE BEARING

BEARING - needle, one piece hub and sprocket assembly, Serial Range: 9816818-9820600

2шт.

8

T40013

HUB ASSEMBLY - clutch (Exhaust stock, order D55928 kit, parts list Fig. 051A), one piece and sprocket, Serial Range: 9816818-9820600

1шт.

9

T42272

SPACER

- clutch, one piece hub and sprocket assembly, Serial Range: 9816818-9820600

1шт.

10

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

- cam, one piece hub and sprocket assembly, Serial Range: 9816818-9820600

3шт.

11

D53324

CUP ASSY.

CAP - drive, riveted construction, one piece hub and sprocket assembly, Serial Range: 9816818-9820600

1шт.

12

T42270

KIT

SPRING SET - release (Set of 9), one piece hub and sprocket assembly, Serial Range: 9816818-9820600

1шт.

13

D54830

DISC

- separator, one piece hub and sprocket assembly, Serial Range: 9816818-9820600

4шт.

14

D55173

DISC

- friction, one piece hub and sprocket assembly, Serial Range: 9816818-9820600

5шт.

15

T40019

PLATE ASSY.

PLATE - pressure, one piece hub and sprocket assembly, Serial Range: 9816818-9820600

1шт.

16

T40020

BUSHING

SPACER - pressure plate, one piece hub and sprocket assembly, Serial Range: 9816818-9820600

1шт.

17

D55172

CAM

formsprag clutch - one piece hub and sprocket assembly, Serial Range: 9816818-9820600

2шт.

18

211-12

BALL,7/16 Dia

- cam, one piece hub and sprocket assembly, Serial Range: 9816818-9820600

3шт.

19

D55171

COLLAR

NUT - adjusting, Serial Range: 9816818-9820600

1шт.

20

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

SETSCREW - 1/4" - 20 NC x 3/4" (Adj. nut), Serial Range: 9816818-9820600

2шт.

21

T40067

LOCK

RING - clutch retainer, one piece hub and sprocket assembly, Serial Range: 9816818-9820600

4шт.
