Запчасти Case IH 1530 (036) - MAIN DRIVE SPROCKET (06) - POWER TRAIN

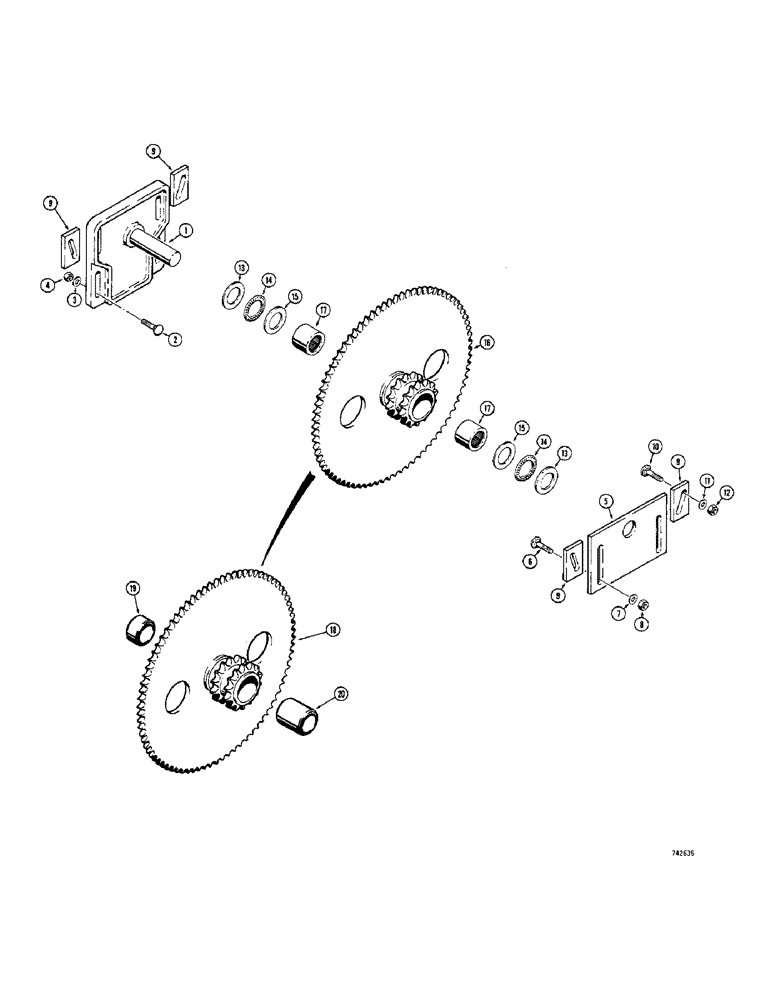

Схема запчастей Case IH 1530 - (036) - MAIN DRIVE SPROCKET (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

T42620

MOUNTING PARTS

MOUNT AND SHAFT ASSEMBLY - inner

2шт.

2

111-508

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G5

8шт.

3

T42588

WASHER

- special, sealing

8шт.

4

131-654

LOCK NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

8шт.

5

T40043

BRACKET

MOUNT - sprocket, outer

2шт.

6

111-508

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G5

8шт.

7

T42588

WASHER

- special sealing

8шт.

8

131-654

LOCK NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

8шт.

9

T40044

WEDGE

- sprocket mount

8шт.

10

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

8шт.

11

T42589

WASHER

- special sealing

8шт.

12

131-675

LOCK NUT,9/16"-18, GB

NUT - hex., lock (3/8" - 16 NC)

8шт.

13

T40036

WASHER, THRUST,34.98mm ID x 52.12mm OD x 0.81mm Thk

RACE - thrust, outer

1шт.

14

T40038

THRUST BEARING,1.377" ID x 2.052" OD x 0.0781"

BEARING - thrust

4шт.

15

607147R1

WASHER

RACE - thrust, inner

4шт.

D53023

SPROCKET ASSY.

SPROCKET ASSEMBLY - main drive (Use D69539 for service), Includes: Ref. 16 - 17

2шт.

16

NSS

NOT SOLD SEPARAT

SPROCKET - main drive

1шт.

17

A31213

NEEDLE BEARING,Needle, 34.91mm ID x 41.27mm OD x 31.75mm W

BEARING - needle (Service with D69541 and D69540 bushings)

2шт.

D69539

SPROCKET ASSY.

SPROCKET ASSEMBLY - main drive, Includes: Ref. 18 - 20

2шт.

18

NSS

NOT SOLD SEPARAT

SPROCKET - drive

1шт.

19

D69541

BEARING,1.58" ID x 1.628" OD x 1"

BUSHING - 1" long

1шт.

20

D69540

BUSHING,1.38" ID x 1.628" OD x 1.9375"

- 2" long

1шт.

Выбрано товаров: 22
