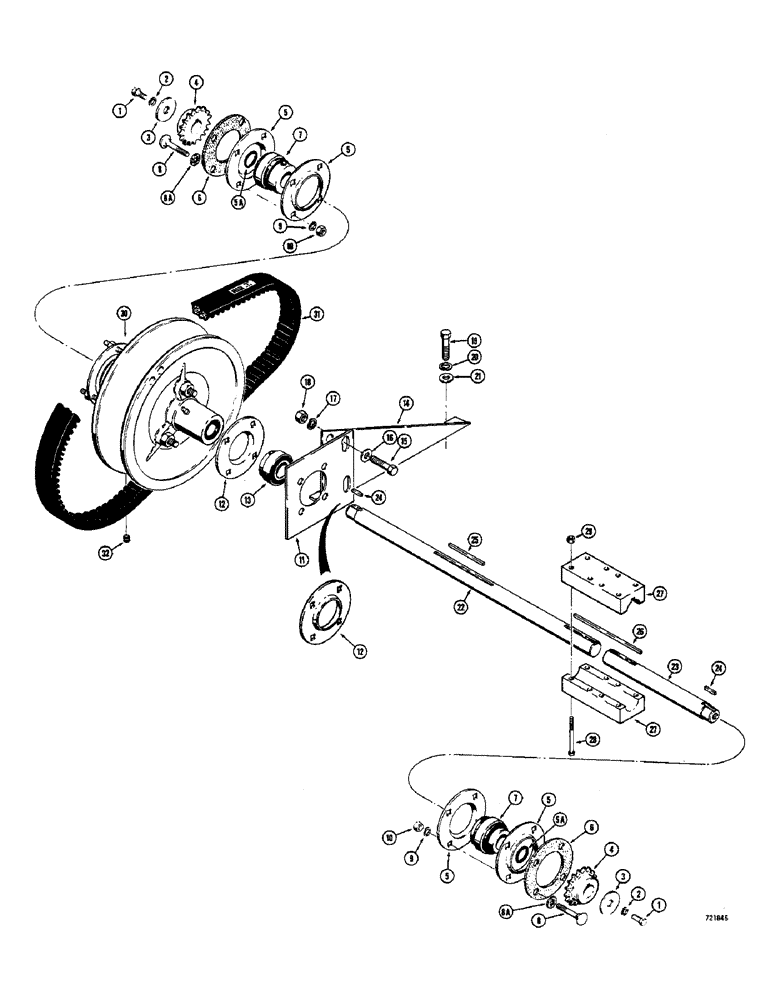

Запчасти Case IH 1530 (035A) - JACKSHAFT & BEARINGS MODELS W/O BRAKES, S/N 9818936 & AFTER MODELS W/ BRAKES, S/N 9818849 & AFTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
2шт.
2
92-8
LOCK WASHER,1/2"
2шт.
3
T40255
WASHER
- special (1/2" x 1-3/4")
2шт.
4
T40069
DRIVE SPROCKET
SPROCKET - drive, 17 tooth
2шт.
5
D57237
FLANGE
- bearing
4шт.
5a
A59066
O-RING,1.239" ID x 1.379" OD
SEAL - "O" ring
2шт.
6
D57246
GASKET
- flange
2шт.
7
F86298
BEARING ASSY
BEARING - shaft
2шт.
8
111-316
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G5
12шт.
8a
D58844
CYLINDER HEAD GASKET
- bolt head
8шт.
9
92-6
LOCK WASHER,3/8"
12шт.
10
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
12шт.
11
D57245
PLATE ASSY.
PLATE - support, bearing
1шт.
12
D57342
FLANGED BEARING,4.44" OD x 0.28"
FLANGE - bearing
2шт.
13
D57393
BEARING
- shaft
1шт.
14
D57244
BRACKET
- mount, shaft bearing
1шт.
15
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
2шт.
16
195-33
WASHER,1/2"
- flat () 1/2"
2шт.
17
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
18
25-106
NUT,3/8"-16, G5
- hex. (1/2" - 13 NC)
2шт.
19
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
2шт.
20
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
21
195-33
WASHER,1/2"
- flat () 1/2"
2шт.
22
D54819
JACKSHAFT
- long
1шт.
23
T40078
JACKSHAFT
- short
1шт.
24
T33565
BUCKET TOOTH KEY
KEY - square, 1/4" x 1"
2шт.
25
B18322
KEY
- square, 1/4" x 3-1/2"
1шт.
26
T40079
KEY
- square, 1/4" x 7"
1шт.
27
T40080
CLAMP
ASSEMBLY - jackshaft
1шт.
28
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
HHCS - 3/8" - 16 NC x 3"
8шт.
29
131-179
LOCK NUT,3/8"-16, GA
NUT - hex., lock (3/8" - 16 NC)
8шт.
30
T40072
X
VARIABLE SPEED DRIVE ASSEMBLY - See Fig. 032
1шт.
31
D58998
V-BELT,1.81" W x 51.70" L
Variable Drive 1.81" W x 51.70" L
1шт.
32
178-857
SET SCREW,Hex Soc, 1/2"-13 x 5/8"
SCREW - set, cup point (1/2" x 5/8")
1шт.
Выбрано товаров: 34
