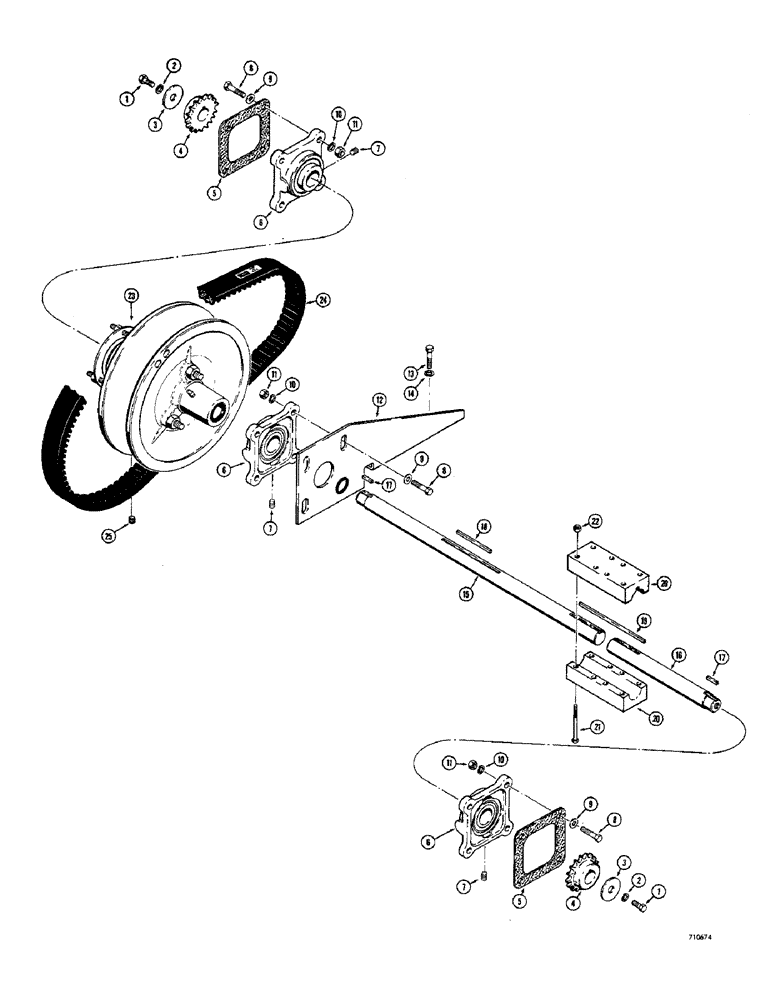

Запчасти Case IH 1530 (034) - JACKSHAFT AND BEARINGS MODELS W/O BRAKES, BEFORE S/N 9818936, MODELS W/ BRAKES, BEFORE S/N 9818849 (06) - POWER TRAIN

1

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

2

92-8

LOCK WASHER,1/2"

2шт.

3

T40255

WASHER

- special, 1/2" - 1-3/4"

2шт.

4

T40069

DRIVE SPROCKET

SPROCKET - drive, 17 tooth

2шт.

5

T42394

GASKET

- flange bearing

2шт.

6

T40071

FLANGE

BEARING ASSEMBLY - includes flange and collar (for service order D55533 bearing assembly), Includes: Ref. 7

3шт.

6

D55533

FLANGED BEARING,1.25" ID

BEARING ASSEMBLY - includes flange and collar, Includes: Ref. 7

3шт.

7

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SETSCREW - 3/8" - 16 NC x 3/8" cup pt.

1шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

9

95-33

WASHER - plain (1/2")

12шт.

10

92-8

LOCK WASHER,1/2"

12шт.

11

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

12шт.

12

T42420

FLANGED BEARING

MOUNT - center bearing

1шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

T40076

SHAFT

JACKSHAFT - long, Serial Range: -9816540

1шт.

15

D54819

JACKSHAFT

- long, Start Serial: 9816540

1шт.

16

T40078

JACKSHAFT

- short

1шт.

17

T33565

BUCKET TOOTH KEY

KEY - square, 1/4" x 1"

2шт.

18

B18322

KEY

- square, 1/4" x 3-1/2"

1шт.

19

T40079

KEY

- square, 1/4" x 7"

1шт.

20

T40080

CLAMP

ASSEMBLY - jackshaft

1шт.

21

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

8шт.

22

131-179

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

8шт.

23

T40072

X

VARIABLE SPEED DRIVEN ASSEMBLY - See Fig. 032

1шт.

24

D58998

V-BELT,1.81" W x 51.70" L

Variable Drive 1.81" W x 51.70" L

1шт.

25

178-857

SET SCREW,Hex Soc, 1/2"-13 x 5/8"

SCREW - set, cup point (1/2" x 5/8")

1шт.
