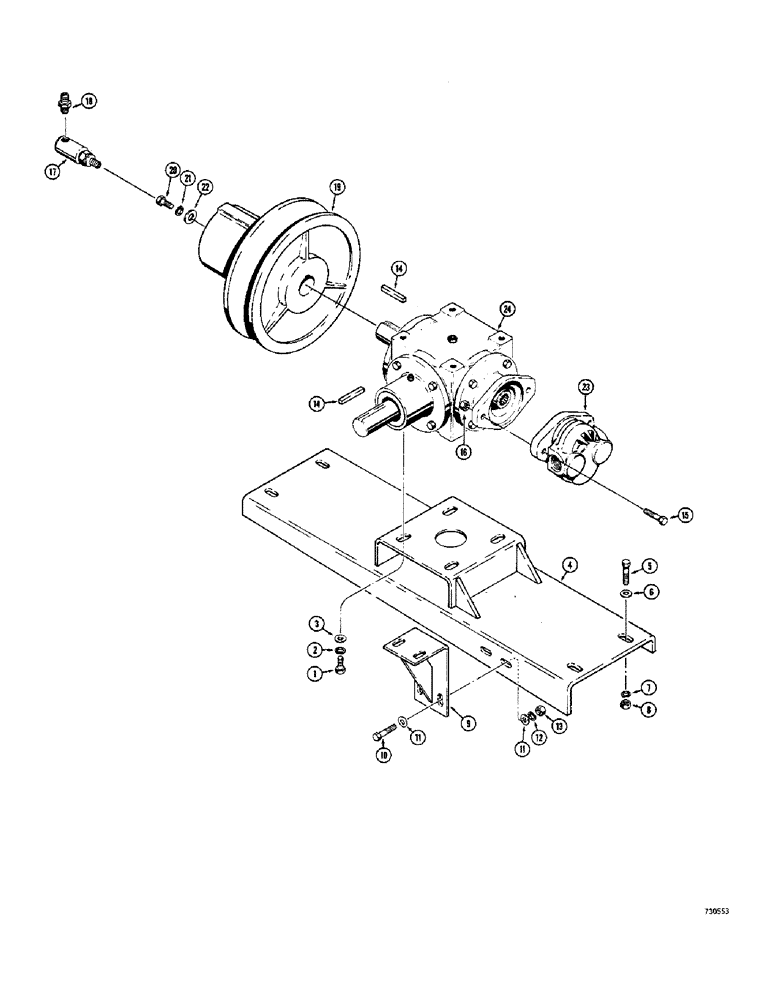

Запчасти Case IH 1530 (028) - GEAR BOX AND MOUNTING PARTS (06) - POWER TRAIN

1

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

195-33

WASHER,1/2"

4шт.

4

D57501

MEMBER

CROSS - gear box

1шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

6

195-33

WASHER,1/2"

8шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

25-108

NUT,1/2"-13, G5

4шт.

9

T41067

BRACKET

BRACE - filter

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

11

195-2034

WASHER,7/16" x 1 1/4" x .134"

4шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

2шт.

14

B18323

KEY

Square, 5/16" x 2"

2шт.

15

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

2шт.

16

131-354

LOCK NUT,1/2"-13, GA

2шт.

17

T42355

COUPLING, BREAK AWAY

ASSEMBLY - rotary (Parts list Fig. 084)

1шт.

18

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Adapter - Rotary coupling

1шт.

19

D53038

SHEAVE

9", Serial Range: -9818251

1шт.

19

D57638

PULLEY

SHEAVE - 9", Start Serial: 9818251

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(D57638 sheave)

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

D57636

DISC

WASHER - special

1шт.

23

REF

INSTRUCTION

PUMP - hydraulic (Parts list Fig. 080)

1шт.

24

D54531

GEAR

BOX ASSEMBLY - (Parts list Fig. 026), Serial Range: -9818251

1шт.

24

D57415

SPARE PART ASSEMBLY - (Parts list Fig. 026), Start Serial: 9818251

1шт.
