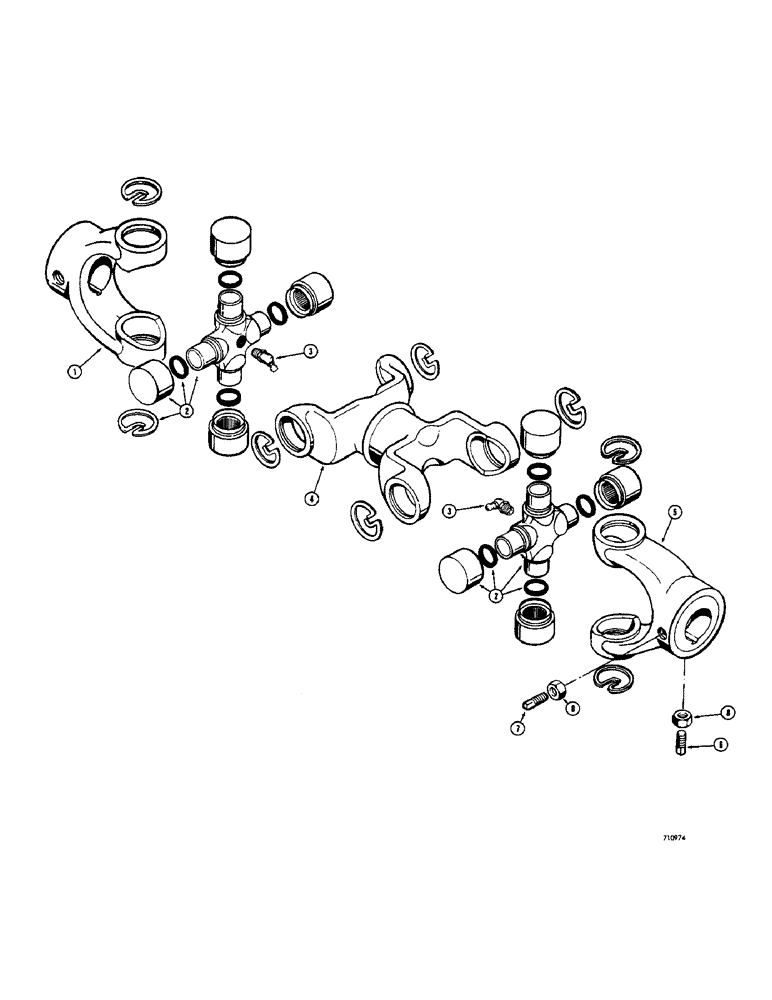

Запчасти Case IH 1530 (024) - UNIVERSAL DRIVESHAFT (06) - POWER TRAIN

T40107

U-JOINT SPIDER

DRIVESHAFT ASSEMBLY - complete, Includes: Ref. 1 - 5

1шт.

1

T40108

FORK

YOKE - end, 1-7/16" bore

1шт.

2

T40106

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 3

2шт.

3

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

1шт.

4

T40105

CENTER JOINT

YOKE - shaft, center

1шт.

5

T40104

FORK

YOKE - end, 1-3/8" bore

1шт.

6

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SETSCREW - 3/8" - 16 NC x 3/4", sq. hd.

2шт.

7

85-616

SET SCREW,Sq Hd, 3/8"-16 x 1"

SETSCREW - 3/8" - 16 NC x 1", sq. hd.

2шт.

8

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC)

4шт.
