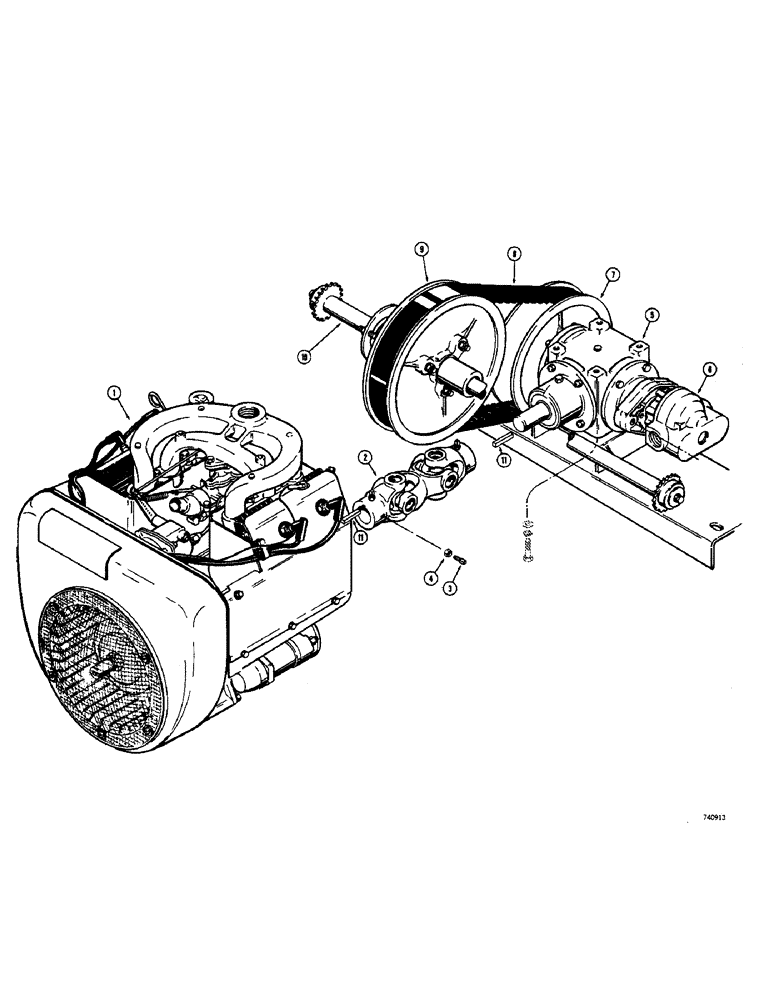

Запчасти Case IH 1530 (020) - POWER TRAIN, ENGINE TO DRIVE SPROCKETS (06) - POWER TRAIN

1

REF

INSTRUCTION

ENGINE - uni-loader (See Fig. 006 for gas engine)

1шт.

2

T40107

U-JOINT SPIDER

UNIVERSAL SHAFT - engine to gear box (Parts list Fig. 024)

1шт.

3

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

2шт.

3

85-616

SET SCREW,Sq Hd, 3/8"-16 x 1"

2шт.

4

25-146

JAM NUT,Jam, 3/8"-16, G5

4шт.

5

D54531

GEAR

BOX - uni-loader (Parts list Fig. 026)

1шт.

6

D53434

PUMP

Hydraulic oil (Parts list Fig. 080)

1шт.

6

87644730R

REMAN-HYD PUMP

1530 SERIES-B CASE UNI-LOADER SKID STEER LOADER (S/N 9816704 THRU 9825291), Reman for New PN D53434

1шт.

6

87644730C

Return Number

CORE-HYDRAULIC PUMP

1шт.

6

RR43429

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - for N.A. Only

1шт.

6

RC43429

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - for N.A. Only

1шт.

7

D53038

SHEAVE

Variable speed, 9" (Parts list Figs. 030 and 031A)

1шт.

8

D58998

V-BELT,1.81" W x 51.70" L

Drive

1шт.

9

REF

INSTRUCTION

SHEAVE - variable speed, 12" (Parts list Fig. 032)

1шт.

10

REF

INSTRUCTION

JACKSHAFT ASSEMBLY - uni-loader (See Figs. 034 and 035A for related parts)

1шт.

11

B18323

KEY

5/16" x 1-3/4"

2шт.
