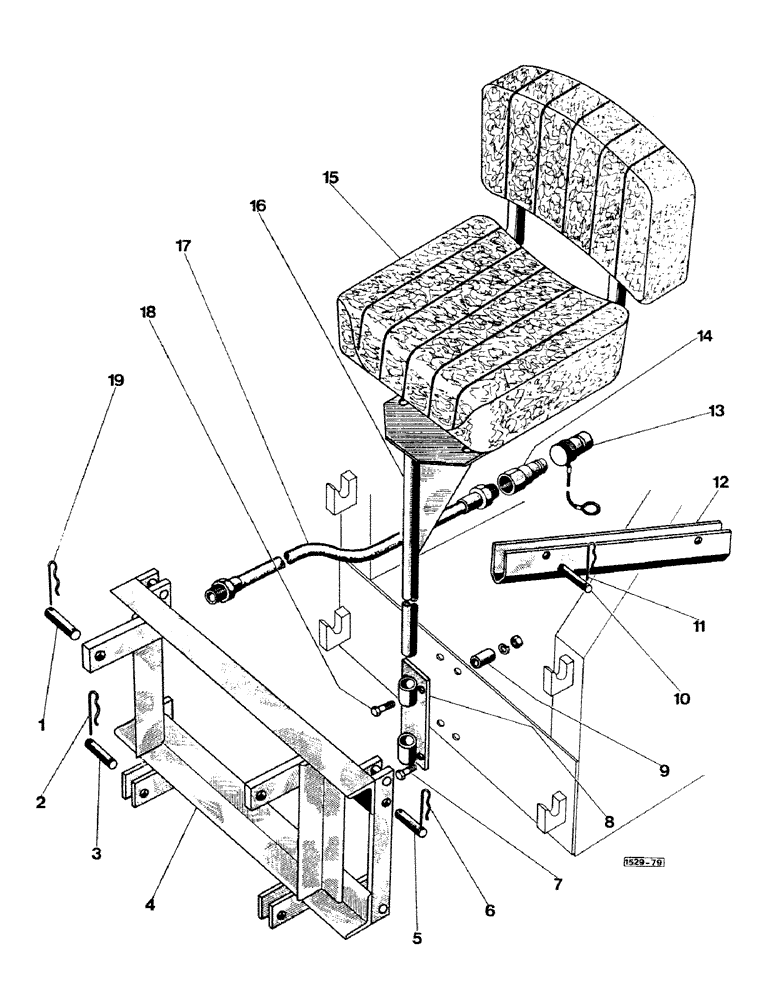

Запчасти Case IH 1529 (204) - PARTS FOR INSTALLATION OF D-100 - D-130 BACKHOES

1

E16815

AXLE PIN

(For D- 100 Backhoe)

2шт.

T40732

AXLE PIN

(For D- 130 Backhoe)

2шт.

2

E14166

PIN

Klik (For D-100 Backhoe)

4шт.

132-319

COTTER PIN,1/4" x 3"

For D-130 backhoe

4шт.

3

E16817

AXLE PIN

(For D- 100 Backhoe)

2шт.

E18845

PIN (For D- 130 Backhoe)

2шт.

4

E16805

FRAME (For D- 100 Backhoe)

1шт.

E18684

FRAME (For D- 130 Backhoe)

1шт.

5

E16816

AXLE PIN

2шт.

6

E14166

PIN

Klik

4шт.

7

E16711

BOLT

Hex. 12 x 30 E16683 E16684

2шт.

8

E16822

BRACKET

SUPPORT seat swinging device

1шт.

9

E17441

SPACER

2шт.

10

T41554

PIN

SPARE PART 0 19 If used

4шт.

E17403

AXLE PIN

0 12 If used

4шт.

11

E14166

PIN

Klik If used

8шт.

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

Klik, if used

8шт.

12

T41551

STOP

SPARE PART Cylinder safety

2шт.

E17401

HOOD

STOP Cylinder safety

2шт.

13

T40759

PLUG

CAP Protective

2шт.

14

T41332

COUPLING, BREAK AWAY

COUPLER male

2шт.

15

E16416

SEAT

SEAT see Figure 122

1шт.

16

E16818

BRACKET

SUPPORT seat

1шт.

17

T41534

HOSE ASSY.

(For D- 100 Backhoe)

2шт.

T41547

HOSE

(For D- 130 Backhoe)

2шт.

18

E17442

BOLT Hex. 12 x 55

2шт.

E16683

WASHER

lock 12

4шт.

E16684

NUT hex. 12 If used

4шт.

19

E14166

PIN

Klik (For D- 100 Backhoe)

4шт.

132-319

COTTER PIN,1/4" x 3"

For D-130 backhoe

4шт.
