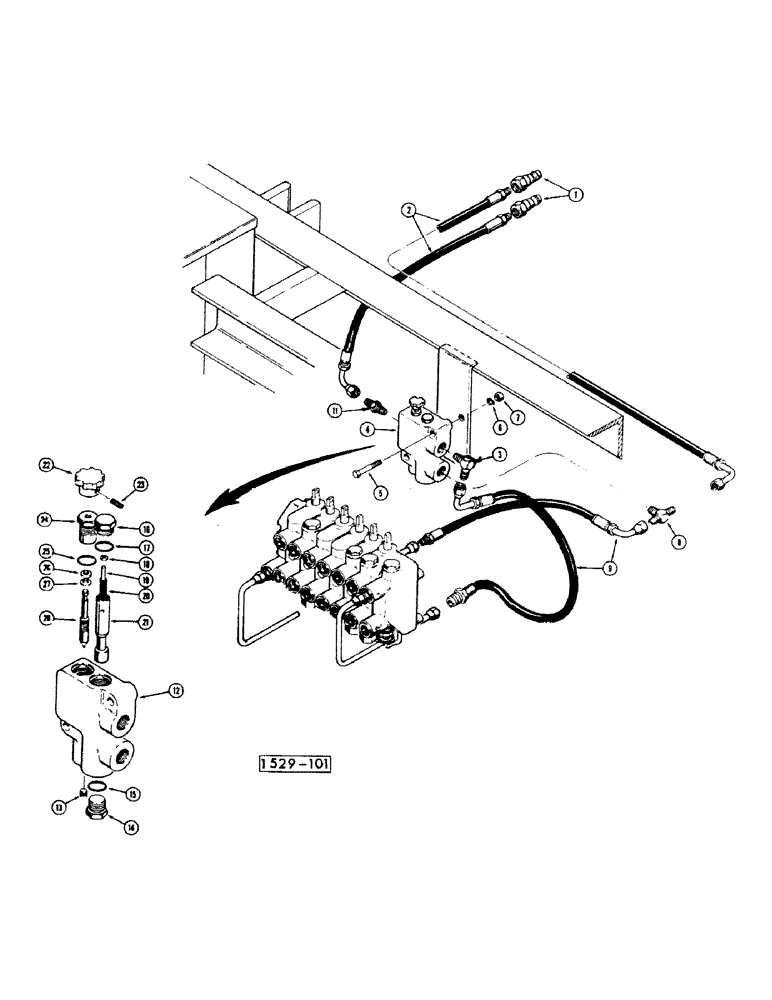

Запчасти Case IH 1529 (188) - ADJUSTABLE FLOW CONTROL VALVE

1

T41332

COUPLING, BREAK AWAY

COUPLER male

2шт.

2

D52898

HOSE

2шт.

3

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

FITTING

1шт.

4

D52901

VALVE

Adjustable flow control

1шт.

5

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-106

NUT,3/8"-16, G5

hex. 3/8" NC

2шт.

8

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

Tee

1шт.

9

D52899

HOSE

2шт.

11

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

FITTING

1шт.

E30656

FITTING

RESTRICTOR (Between supply tube and swing cylinder)

1шт.

D52901

VALVE

flow control, Includes: Ref. 12 - 28

1шт.

12

NSS

NOT SOLD SEPARAT

BODY

1шт.

13

221-849

PLUG,Hex Soc, 1/8"-27

1шт.

14

D54275

PLUG

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

D54270

CAP

PLUG

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

D54273

GUIDE

1шт.

20

D54272

VALVE SPRING

SPARE PART

1шт.

21

D54274

SPOOL

1шт.

22

D54188

KNOB

1шт.

23

178-859

SCREW,Hdls Hex Skt, #10 - 32 x 3/4", Cup Pt

1шт.

24

D54189

PLUG

SPARE PART

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

D54263

WASHER

RING back-up

1шт.

27

D54268

SEAL

1шт.

28

D54269

NEEDLE

1шт.
