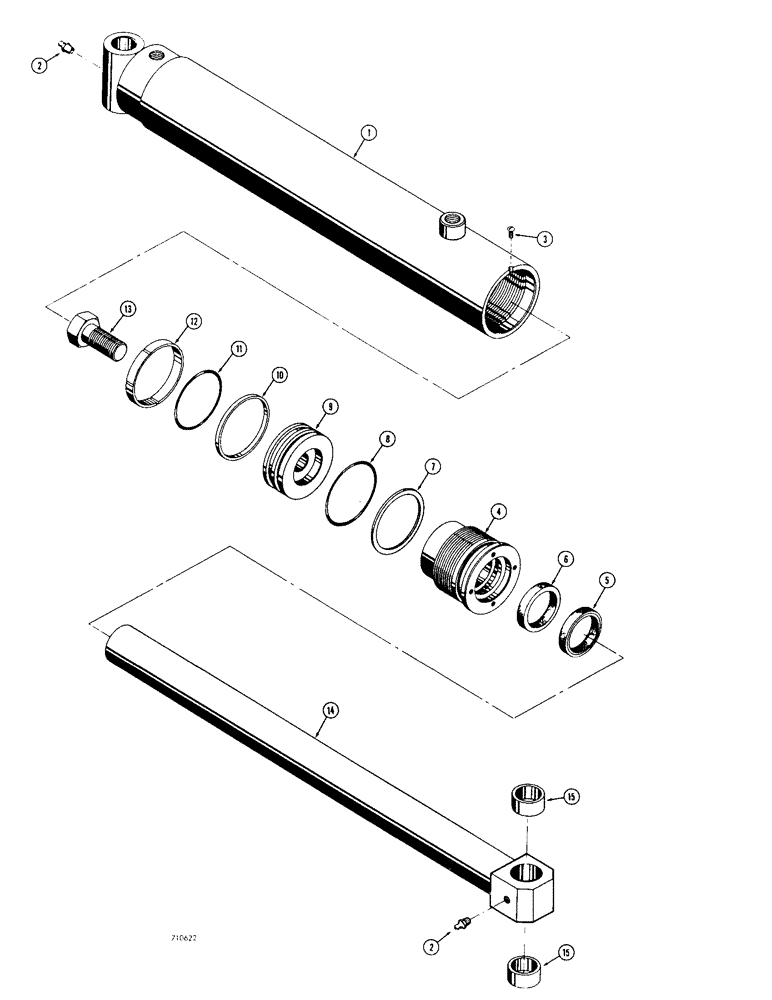

Запчасти Case IH 1529 (186) - 4-IN-1 BUCKET CYLINDER

G32247

CYLINDER

ASSY, Includes: Ref. 1 - 15

1шт.

1

G32267

CYLINDER,13.57" L

Body

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

3

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

4

G32044

GLAND

1шт.

When depleted Order G32797.

1шт.

G32797

GLAND

packing ass'y, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND packing

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER rod

1шт.

Included in Seal Kit.

1шт.

6

D36969

CUP

SEAL rod

1шт.

Included in Seal Kit.

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

back-up

1шт.

Included in Seal Kit.

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Included in Seal Kit.

1шт.

9

G32032

PISTON

1шт.

10

G32034

RING

back-up

1шт.

Included in Seal Kit.

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Included in Seal Kit.

1шт.

12

G32033

RING

wear

1шт.

Included in Seal Kit.

1шт.

13

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

14

G32059

PISTON ROD

ASSY

1шт.

15

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

2шт.
