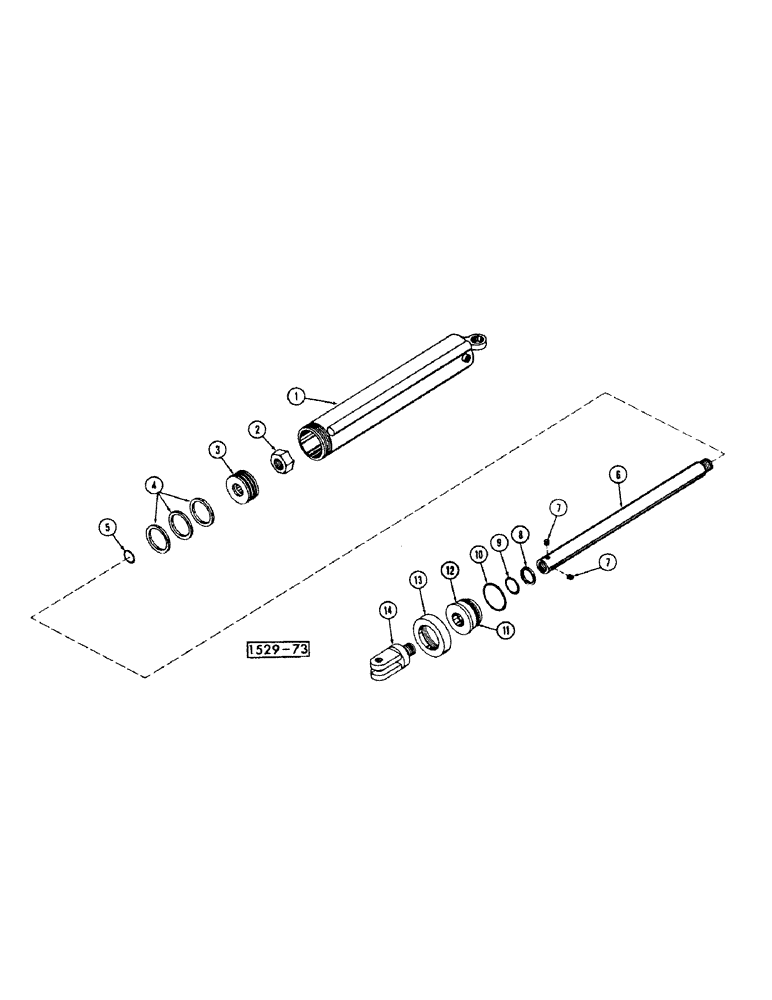

Запчасти Case IH 1529 (178) - TREE SHEAR CYLINDER, 18"

T41989

CYLINDER BLOCK

ASSY Tree shear, Includes: Ref. 1 - 13

1шт.

1

T41998

SPARE PART BODY cylinder 7" ID x 7.62" OD x 31.88, 6" L

1шт.

2

25-1528

JAM NUT

hex. 1-3/4" NF NC 131-910

1шт.

3

T42000

PISTON ASSY.

1шт.

4

NSS

NOT SOLD SEPARAT

RING piston

3шт.

Part of Seal Kit P/N T41997

1шт.

5

NSS

NOT SOLD SEPARAT

O RING

1шт.

Part of Seal Kit P/N T41997

1шт.

6

T41999

ROD piston

1шт.

7

T41996

LOCK ASSY

nylon

3шт.

178-808

SET,Hex Soc, 3/8"-24 x 3/8"

SCREW 3/8" x 3/8" NF

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER backup

1шт.

Part of Seal Kit P/N T41997

1шт.

9

NSS

NOT SOLD SEPARAT

O RING

1шт.

Part of Seal Kit P/N T41997

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of Seal Kit P/N T41997

1шт.

11

NSS

NOT SOLD SEPARAT

O RING

1шт.

Part of Seal Kit P/N T41997

1шт.

12

T42001

GLAND

1шт.

13

T42002

CAP gland

1шт.

T41997

BUCKLE

KIT seal, consists of: Ref. 4, 5 and 8-11

1шт.

14

T41992

CLEVIS

1шт.

13-2064

BOLT,Hex, 1-1/4" - 7 x 4", Gr 5

1шт.

95-20

WASHER,1 1/4" x 2 3/8" x .165"

plain

1шт.

25-1020

NUT,1 1/4"-7, G5

1шт.
