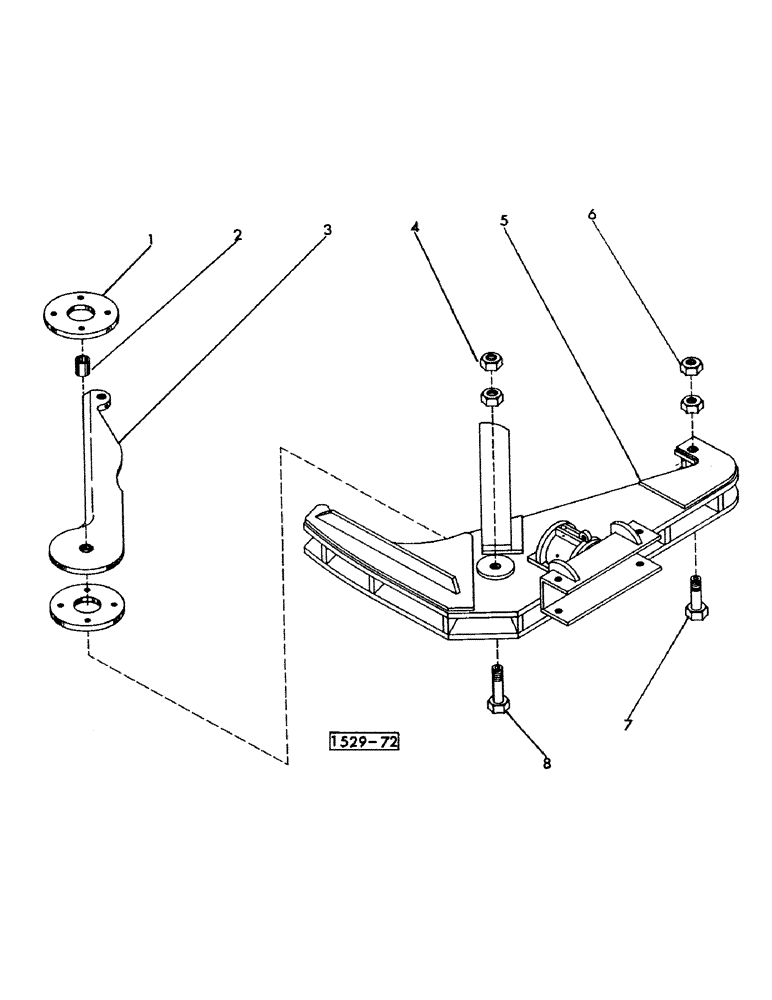

Запчасти Case IH 1529 (174) - TREE SHEAR, 18"

1

T41991

PLATE wear

2шт.

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

92-12

LOCK WASHER,3/4"

8шт.

2

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

3

T41990

BLADE shear

1шт.

4

25-1432

SPARE PART NUT Hex. 2" NC

2шт.

5

NSS

NOT SOLD SEPARAT

FRAME mounting

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

1шт.

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

1шт.

92-8

LOCK WASHER,1/2"

1шт.

95-16

WASHER,1 1/16" x 2 1/2" x .164"

plain 1"

1шт.

25-108

NUT,1/2"-13, G5

Hex

2шт.

25-1016

NUT,1"-8, G5

2шт.

6

25-1428

SPARE PART NUT hex. 1-3/4" NC

2шт.

7

T41993

PIN 1-3/4"

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

T41994

PIN 2"

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

D54514

HOSE ASSY.

1/2" x 64 Not shown

2шт.

T41332

COUPLING, BREAK AWAY

COUPLER male

2шт.

221-384

ELBOW

2шт.

221-212

NIPPLE, LUBE

NIPPLE

2шт.
