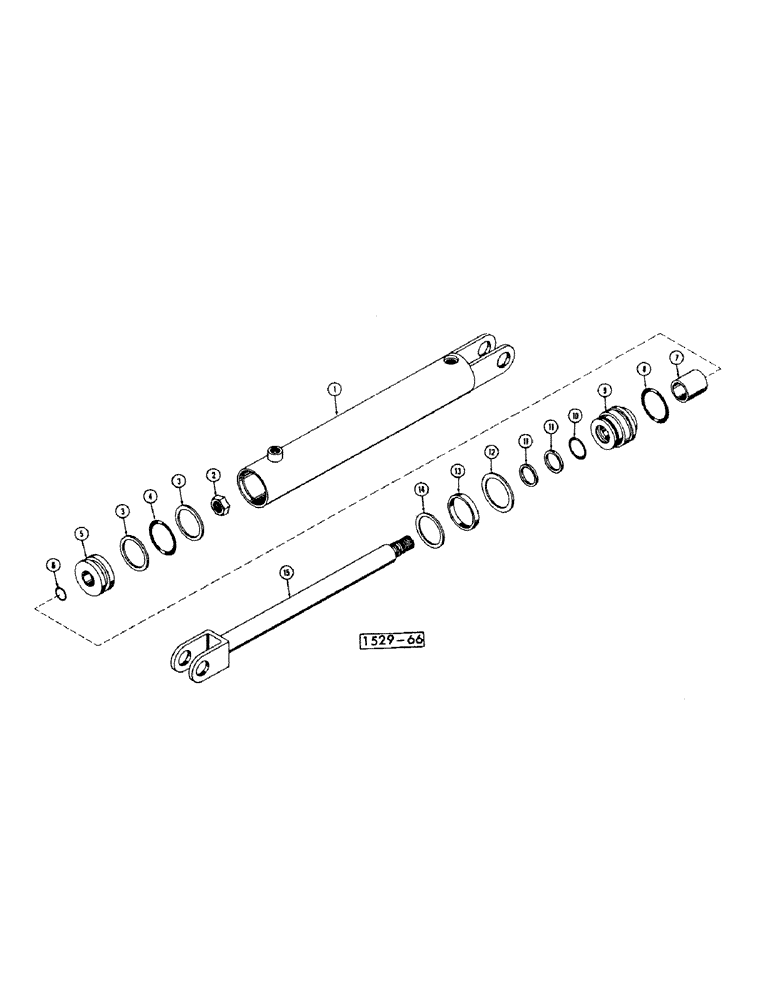

Запчасти Case IH 1529 (172) - HYDRAULIC GRAPPLE CYLINDER

T40865

CYLINDER

ASSY Hydraulic grapple, Includes: Ref. 1 - 15

2шт.

1

NSS

NOT SOLD SEPARAT

BODY cylinder

1шт.

2

25-159

JAM NUT,Jam, 9/16"-18, G5

Hex. 9/16" NF

1шт.

3

NSS

NOT SOLD SEPARAT

backup

2шт.

Part of Seal Kit P/N T41499

1шт.

4

NSS

NOT SOLD SEPARAT

O RING

1шт.

Part of Seal Kit P/N T41499

1шт.

5

T24084

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of Seal Kit P/N T41499

1шт.

7

T42254

BUSHING

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of Seal Kit P/N T41499

1шт.

9

T42253

HEAD

GLAND

1шт.

10

NSS

NOT SOLD SEPARAT

O RING

1шт.

Part of Seal Kit P/N T41499

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER rod

2шт.

Part of Seal Kit P/N T41499

1шт.

12

NSS

NOT SOLD SEPARAT

RING Lock

1шт.

Part of Seal Kit P/N T41499

1шт.

13

T24081

SPACER

1шт.

14

T24080

SNAP RING,#175, Ext Spiral

1шт.

15

T42252

PISTON

ROD

1шт.

T41499

SEAL

KIT consists of: Ref. 3, 4, 6, 8 and 10-12

1шт.
