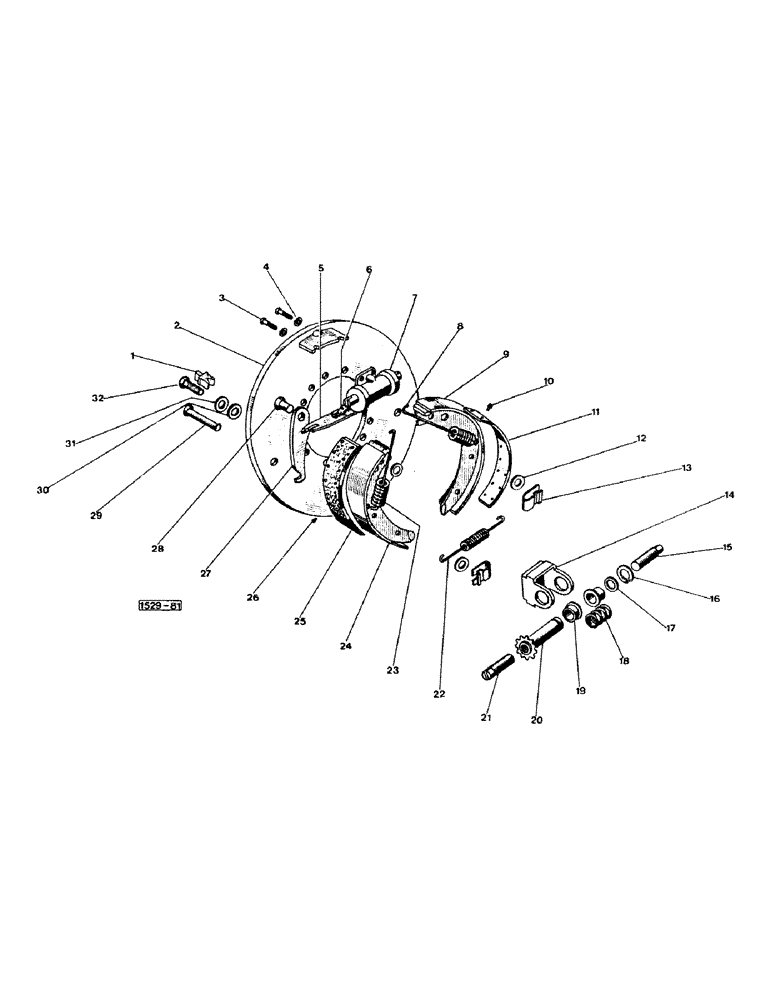

Запчасти Case IH 1529 (013J) - BRAKES, PERROT

E17204

BRAKE SHOE

L.H., Includes: Ref. 1 - 8

1шт.

E17237

BRAKE SHOE

R.H., Includes: Ref. 1 - 8

1шт.

1

E19160

PLUG

1шт.

2

E19158

PLATE, L.H

1шт.

Included in L.H. brake.

1шт.

E19159

PLATE, R.H

1шт.

Included in R.H. brake.

1шт.

3

E19173

BOLT hex. 6 x 25

2шт.

4

E19174

WASHER lock A 6

2шт.

5

E19169

BAR actuating

1шт.

Included in L.H. brake.

1шт.

E19170

BAR actuating

1шт.

Included in R.H. brake.

1шт.

6

E19171

BLADE

LEAFSPRING

1шт.

7

E19172

CYLINDER BLOCK

1шт.

8

E19185

SPRING

1шт.

When mounting these parts, pay attention to the spring hook.

1шт.

9

E19161

SHOE

brake, ass'y, Includes: Ref. 10 and 11

1шт.

10

E19163

RIVET

16шт.

11

E19162

LINING

1шт.

12

E19189

WASHER

2шт.

13

E19188

EDGE

LEAFSPRING

2шт.

E19175

TIGHTENER shoe, assembly, Includes: Ref. 14 - 19

1шт.

14

E19176

YOKE

1шт.

15

E19180

SCREW

left handed

1шт.

16

E19184

RING snap

1шт.

17

E19182

WASHER

1шт.

E19183

WASHER

1шт.

18

E19178

VALVE SPRING

1шт.

19

E19177

BUSHING

2шт.

20

E19179

ROD

TUBE adjusting

1шт.

21

E19181

SCREW

right handed

1шт.

22

E19187

SPRING

return

1шт.

When mounting these parts, pay attention to the spring hook.

1шт.

23

E19186

SPRING return

1шт.

When mounting these parts, pay attention to the spring hook.

1шт.

24

E19164

SHOE brake, ass'y with lever, Includes: Ref. 25 - 28

1шт.

Included in L.H. brake.

1шт.

E19167

SHOE brake, ass'y with lever, Includes: Ref. 25 - 28

1шт.

Included in R.H. brake.

1шт.

25

E19162

LINING

1шт.

26

E19163

RIVET

16шт.

27

E19165

LEVER

1шт.

Included in L.H. brake.

1шт.

E19168

LEVER

1шт.

Included in R.H. brake.

1шт.

28

E19166

PIN Pivot

1шт.

29

E19190

PIN

2шт.

30

VZA655

WASHER

1шт.

31

E19191

WASHER

1шт.

32

VZA926

BOLT hex 10 x 25

1шт.
