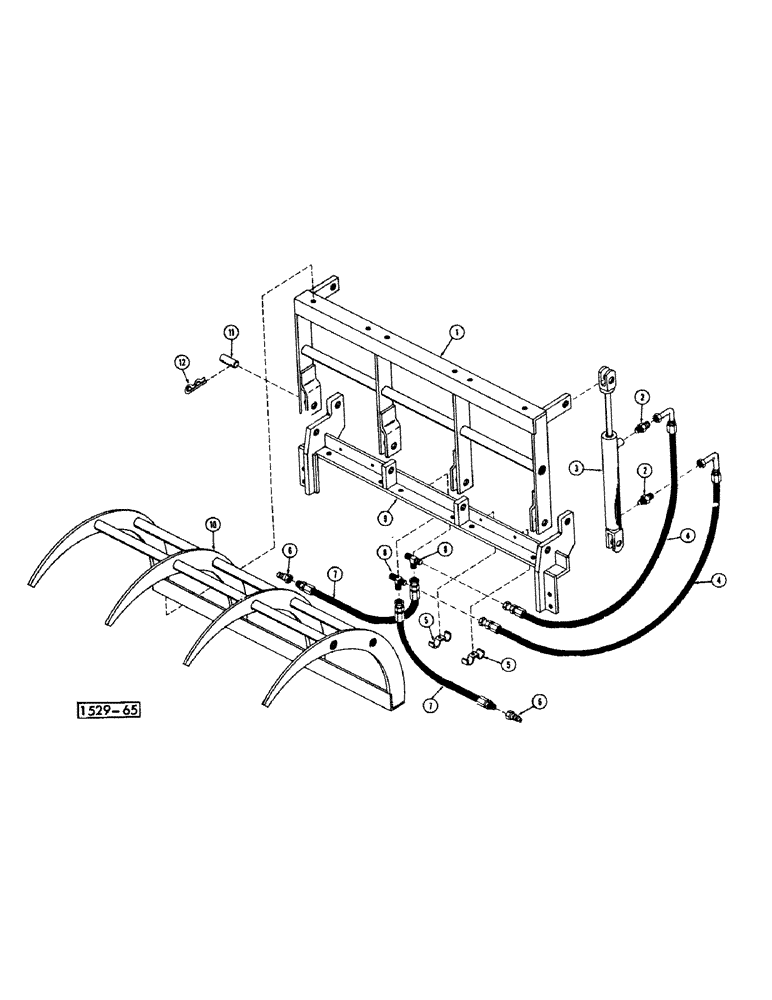

Запчасти Case IH 1529 (168) - HYDRAULIC GRAPPLE

1

T41569

SPARE PART TINE mounting

1шт.

2

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

4шт.

3

REF

INSTRUCTION

CYLINDER see Figure 172

2шт.

4

T41579

HOSE

4шт.

5

T41582

CLAMP

4шт.

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

195-518

WASHER,1/4", SAE

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

6

T41332

COUPLING, BREAK AWAY

2шт.

7

D54759

HOSE

2шт.

8

218-594

TEE,3/4"-16, 37 Degree

2шт.

9

T41564

SPARE PART GRAPPLE upright

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

10шт.

195-533

WASHER,1/2", SAE

10шт.

192-23

LOCK WASHER,1/2"

10шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

10

T41575

TINE

grapple

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

192-23

LOCK WASHER,1/2"

6шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

11

T28115

RIVET

PIN

8шт.

12

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

Hair

8шт.

D33829

BUSHING

1шт.
