Запчасти Case IH 1529 (162) - WOOD-TICK CYLINDER, STARTING FROM NO.9816144

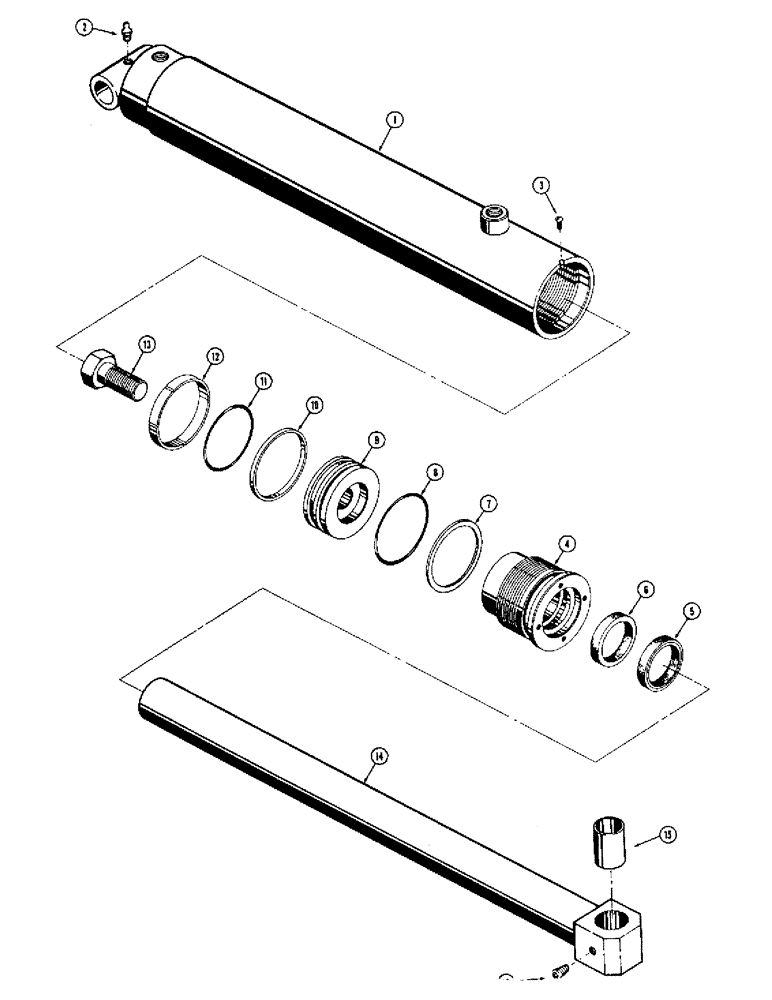

Схема запчастей Case IH 1529 - (162) - WOOD-TICK CYLINDER, STARTING FROM NO.9816144
10
13
11
5
6
3
4
12
15
14
7
1
2
9
8

Артикул

Название

Примечание

Количество

G32031

CYLINDER

ASSY Wood-Tick, Includes: Ref. 1 - 16

2шт.

1

G32061

HYD TUBE,13.57" L

BODY Cylinder

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

3

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

4

G32044

GLAND

packing

1шт.

When depleted Order G32797.

1шт.

G32797

GLAND

packing ass'y, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND packing

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER rod

1шт.

Part of Seal Kit P/N G32269

1шт.

6

D36969

CUP

SEAL rod

1шт.

Part of Seal Kit P/N G32269

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

back-up

1шт.

Part of Seal Kit P/N G32269

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G32269

1шт.

9

G32032

PISTON

1шт.

10

G32034

RING

back-up

1шт.

Part of Seal Kit P/N G32269

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G32269

1шт.

12

G32033

RING

wear

1шт.

Part of Seal Kit P/N G32269

1шт.

13

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

14

G32059

PISTON ROD

ASSY, Includes: Ref. 15

1шт.

15

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

1шт.

16

221-849

PLUG,Hex Soc, 1/8"-27

1шт.

G32269

KIT

seal consists of: Ref. 5-8 and 10-12

1шт.

Выбрано товаров: 28
