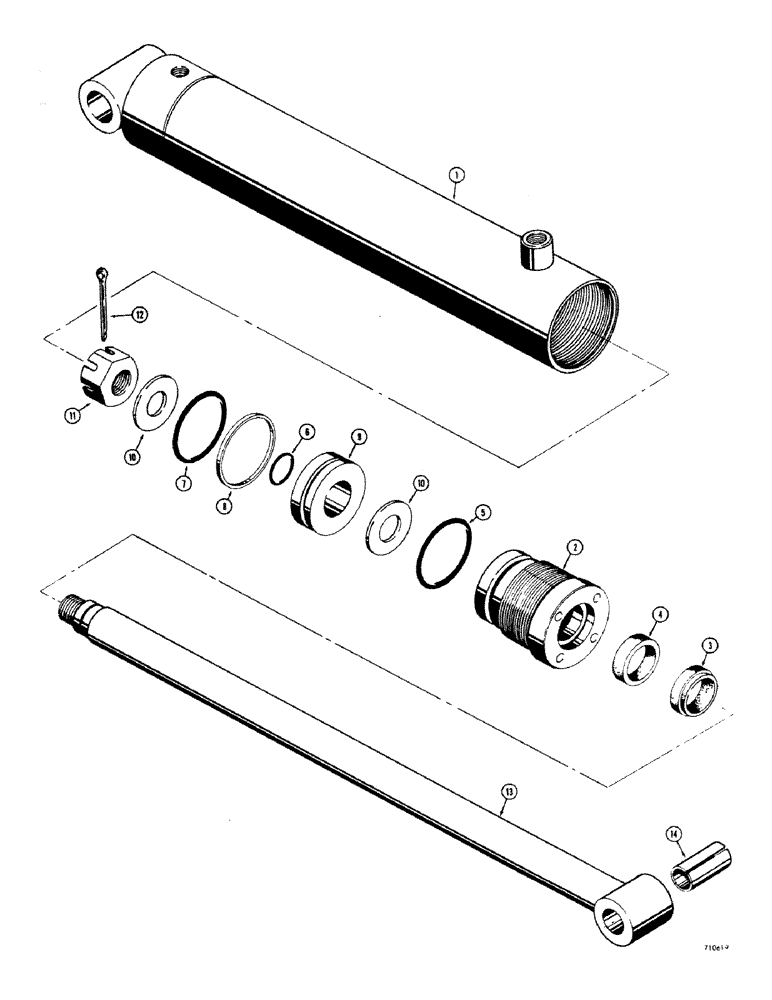

Запчасти Case IH 1529 (160) - WOOD-TICK CYLINDER, UP TO NO. 9816143

T40758

CYLINDER

ASSY Wood-Tick, Includes: Ref. 1 - 14

2шт.

1

T41427

CYLINDER

Body

1шт.

2

T40200

GLAND

1шт.

T40055

SEAL KIT

KIT, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER rod

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL

1шт.

5

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

O RING

1шт.

7

NSS

NOT SOLD SEPARAT

O RING

1шт.

8

NSS

NOT SOLD SEPARAT

RING piston

1шт.

9

NLS

NO LONGER SERVICED

PISTON

1шт.

10

T40195

SPARE PART

1шт.

11

25-2316

SLOTTED NUT

hex. 1" NF

1шт.

12

132-95

COTTER PIN,3/16" x 1 1/2"

1шт.

13

T41425

ROD piston ass'y, Includes: Ref. 14

1шт.

14

T40194

BUSHING

1шт.
