Запчасти Case IH 1529 (154) - WOOD-TICK

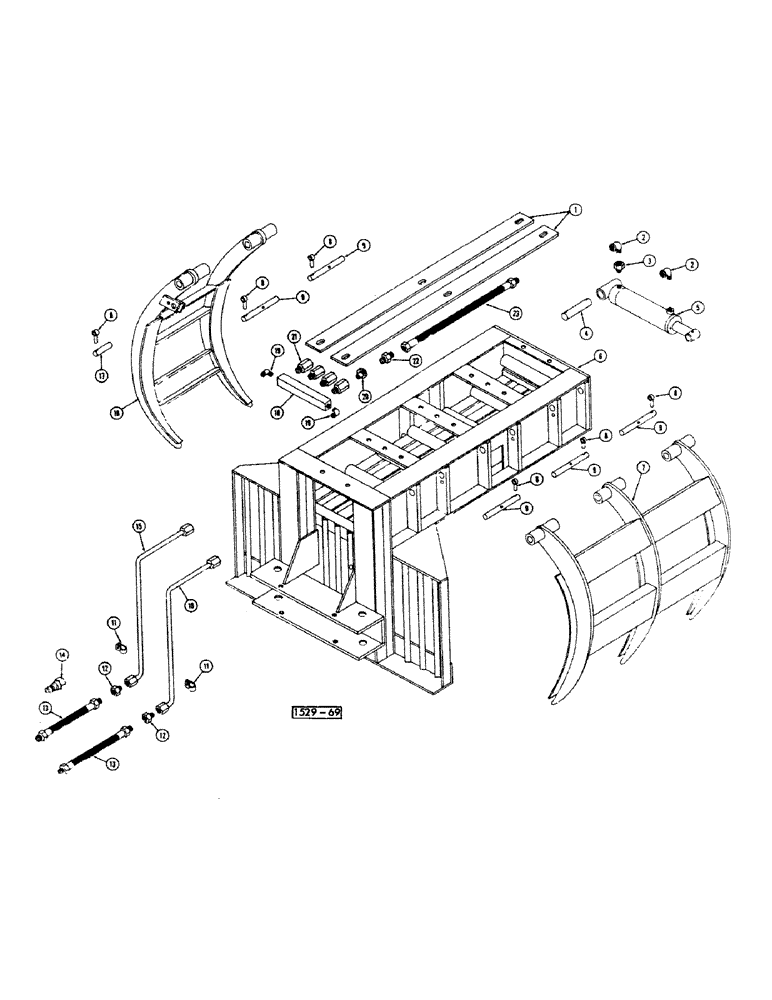

Схема запчастей Case IH 1529 - (154) - WOOD-TICK
9
8
21
9
13
6
18
3
13
8
11
5
1
2
8
9
17
2
12
8
20
22
10
8
9
4
11
19
9
14
23
12
19
7
8

Артикул

Название

Примечание

Количество

1

T41816

BAR

2шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

95-6

WASHER,3/8"

6шт.

92-6

LOCK WASHER,3/8"

6шт.

25-106

NUT,3/8"-16, G5

Hex. 3/8" NC

6шт.

2

221-1910

PIPE,Nipple, 3/8" NPT x 1", X-Strng

ELBOW

4шт.

3

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

2шт.

4

T40757

SPARE PART

2шт.

138-142

LOCK PIN,1/4" x 2", Slotted

4шт.

5

REF

INSTRUCTION

CYLINDER see Figure 160

2шт.

6

T42383

SLIPPER

FRAME

1шт.

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

Hex. 5/8" x 6" NC

2шт.

92-10

LOCK WASHER,5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

7

T41805

TOOTH RH (Replaced by T42379)

1шт.

T42379

TOOTH RH

1шт.

8

213-24

ROD

PIN retainer

7шт.

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

7шт.

92-6

LOCK WASHER,3/8"

7шт.

9

T40957

PIN

5шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

5шт.

10

T41813

SPARE PART

1шт.

11

49838

CLAMP

2шт.

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

Hex. 3/8" NC

2шт.

12

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

ADAPTER

2шт.

13

T41810

SPARE PART

2шт.

14

T41332

COUPLING, BREAK AWAY

2шт.

15

T41812

TUBE,0.5" OD

1шт.

16

T41806

TOOTH LH (Replaced by T42377)

1шт.

T42377

TOOTH

LH

1шт.

17

T40962

SPARE PART

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

18

T40960

SPARE PART

1шт.

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-106

NUT,3/8"-16, G5

Hex. 3/8" NC

1шт.

19

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ELBOW

2шт.

20

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

reducing

4шт.

21

T40964

RESTRICTOR

4шт.

22

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

4шт.

23

T41815

SPARE PART

4шт.

321-1551

DECAL (not shown)

1шт.

Выбрано товаров: 44
