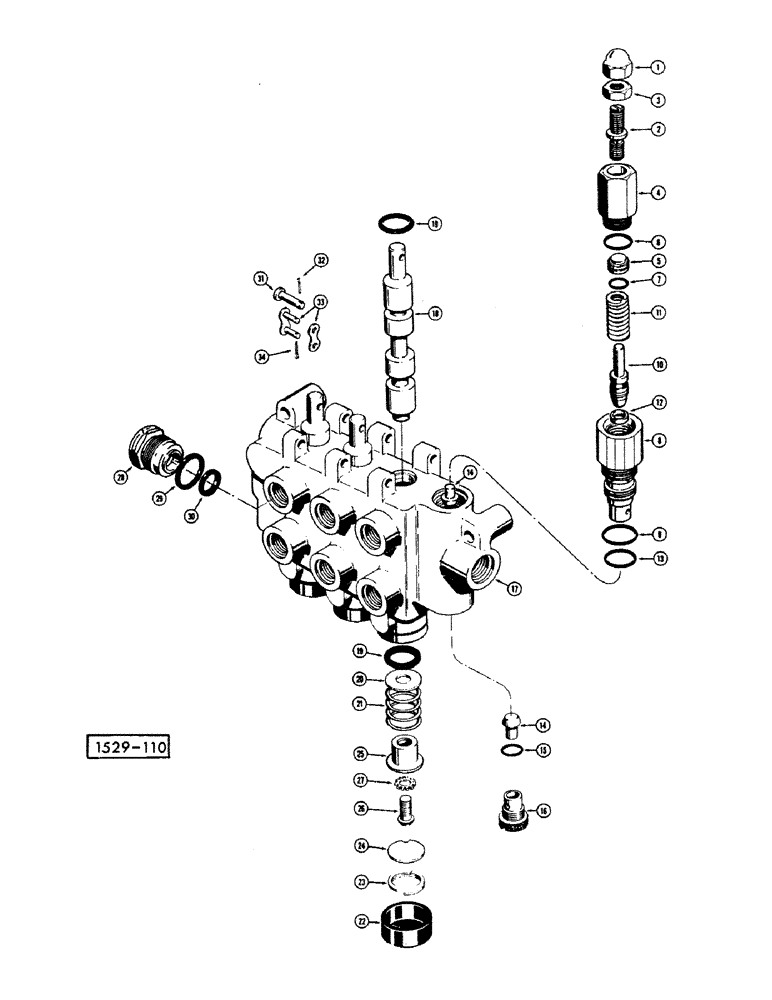

Запчасти Case IH 1529 (147E) - CONTROL VALVE

D55019

VALVE

control ass'y, Includes: Ref. 1 - 34

1шт.

1

D55941

NUT

acorn

1шт.

2

D55942

SPARE PART SCREW

1шт.

3

D55943

SPARE PART jam

1шт.

4

D55944

CYLINDER END CAP

1шт.

5

D55945

SPARE PART

1шт.

6

16905

O-RING,0.551" ID x 0.07" Width

"O" ring

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

D51541

BODY

1шт.

9

D39717

O-RING,1.051" ID x 1.191" OD

Seal

1шт.

10

D39713

VALVE POPPET

1шт.

11

D51540

VALVE SPRING

1шт.

12

D39714

RING

SEAL

1шт.

13

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

"O" ring

1шт.

14

D28576

VALVE POPPET

2шт.

15

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

Seal

1шт.

16

D28574

PLUG

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

18

NLS

NO LONGER SERVICED

SPOOL

3шт.

19

T42095

O-RING

SEAL

6шт.

20

36650

WASHER

3шт.

21

36632

SPRING

3шт.

22

36645

CAP

CAP rubber

3шт.

23

36633

LID

snap

3шт.

24

36631

HOUSING

3шт.

25

CAS36630

COLLAR

stop

3шт.

26

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

3шт.

27

36628

LOCK WASHER

lock, ext. shakeproof

3шт.

28

D54293

SLEEVE CYLINDER

1шт.

29

D48086

SEAL,1.358" ID

Seal

1шт.

30

D53169

RING

SEAL

1шт.

31

36627

SEAT

PIN handle

3шт.

32

132-5

COTTER PIN,1/16" x 1/2"

3шт.

33

36640

DRAG LINK

ASSY handle

3шт.

34

132-13

PIN

cotter

3шт.
