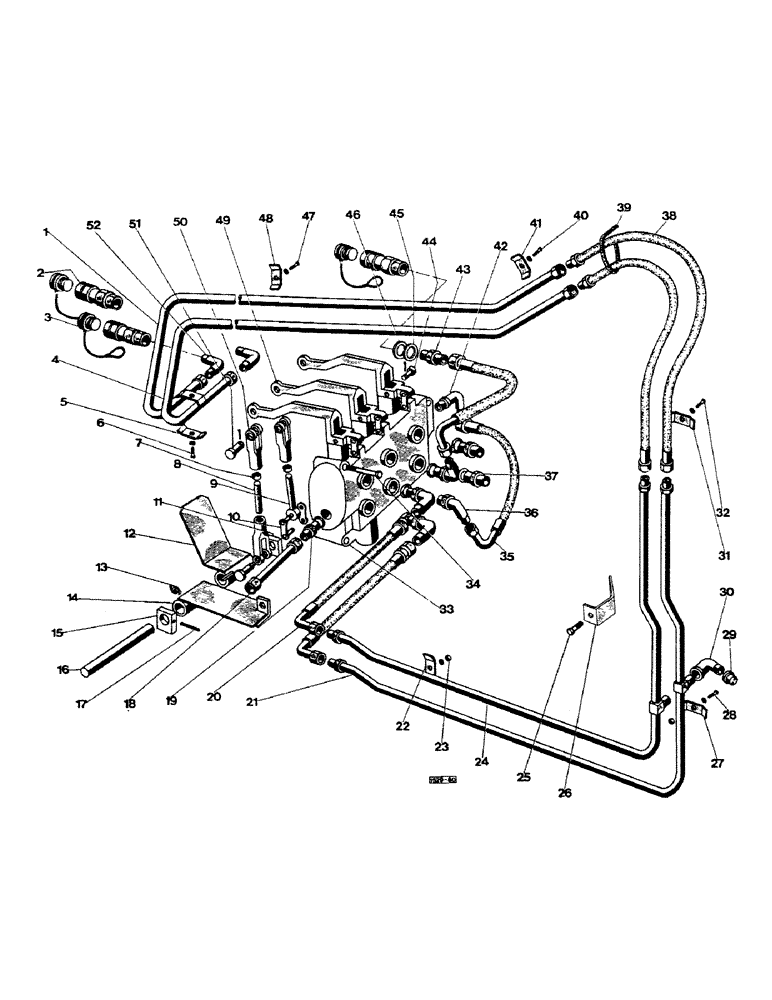

Запчасти Case IH 1529 (108K) - BASIC HYDRAULICS, 3 SPOOL NEW MODEL

1

D53015

TUBE

1шт.

2

T40265

COUPLING, BREAK AWAY

QUICK-CONNECT

4шт.

3

T40274

CAP

PLUG

4шт.

4

D53017

TUBE

1шт.

5

A14078

CLAMP

D33552

2шт.

6

D33552

BUSHING

BOLT Hex. 5/16" x 1-1/2" NC

2шт.

92-5

LOCK WASHER,5/16"

2шт.

7

25-118

NUT,1/2"-20, G5

Hex. 1/2" NF

2шт.

8

T40253

ROD

linkage

1шт.

9

T41620

ROD

adjusting

1шт.

10

B12524

CHAIN (AG)

LINK

1шт.

11

T42450

BRACKET

SUPPORT pedal, LH

1шт.

12

T42452

PEDAL

foot

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

14

T42457

PEDAL

foot

1шт.

15

T42449

BRACKET

SUPPORT pedal, RH

1шт.

16

T42451

AXLE PIN

1шт.

17

138-104

LOCK PIN,3/16" x 2", Slotted

1шт.

18

T40260

TUBE

1шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

T41837

TUBE,20, 1.75" L

2шт.

21

D53252

TUBE

1шт.

22

A14078

CLAMP

2шт.

D33552

BUSHING

FEDERRING

2шт.

24

D53249

TUBE

1шт.

25

E16710

BOLT

hex 10 x 25 if used

1шт.

E16726

WASHER

plain 10 if used

1шт.

E16724

WASHER

lock 10 if used

1шт.

E16725

NUT

hex 10 if used

1шт.

26

E17946

SPACER if used

1шт.

27

A14078

CLAMP

D33552

1шт.

28

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

25-105

1шт.

29

221-525

CAP,1/2" NPT

PLUG

2шт.

30

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

90 degrees

2шт.

31

A14078

CLAMP

1шт.

32

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

33

T40083

VALVE (3-spool), see Figure 144, Serial Range: -3755879

1шт.

D53433

VALVE

(3-spool), see Figure 147A, Start Serial: 3755880

1шт.

D55019

VALVE

(3-spool) see Figure 147E

1шт.

34

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT Hex. 3/8" x 2-1/2" NC

2шт.

195-25

WASHER,3/8"

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

Hex. 3/8" NC

2шт.

35

T41832

HOSE

2шт.

36

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING ASSY

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ASSY

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

D23030

HOSE

2шт.

39

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP

2шт.

40

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

1шт.

41

A14078

CLAMP

1шт.

42

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

43

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

FITTING straight

2шт.

44

T40551

PIN

3шт.

132-7

COTTER PIN,1/16" x 3/4"

3шт.

46

T42340

BUSHING

WASHER

2шт.

47

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

1шт.

48

A14078

CLAMP

1шт.

49

T40233

HANDLE

LEVER valve

3шт.

50

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

3шт.

51

T40252

CLEVIS

PIN

3шт.

132-48

COTTER PIN,1/8" x 1"

3шт.

52

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

If used

2шт.
