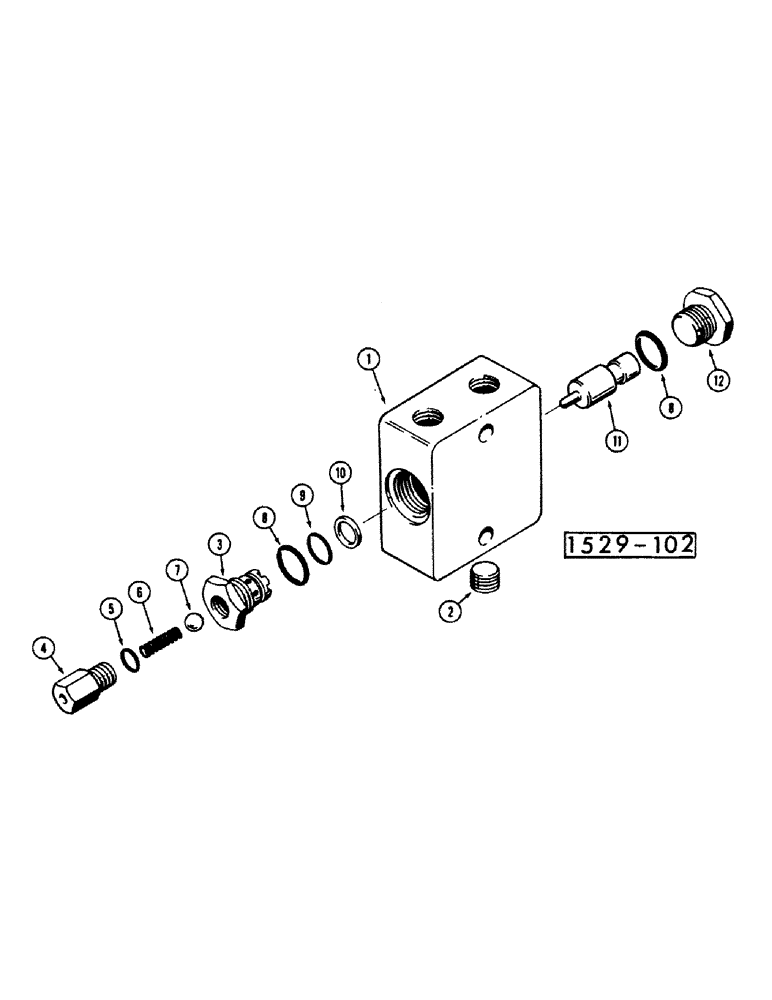

Запчасти Case IH 1529 (094) - LOCK VALVE

T42651

VALVE

ASSY, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

221-841

PLUG

1шт.

3

T40180

SPARE PART

1шт.

T42653

REPAIR KIT

parts, Includes: Ref. 4 - 11

1шт.

4

T42652

LOCK VALVE

Relief

1шт.

5

T40177

SEAL

1шт.

6

T40178

VALVE SPRING

1шт.

7

T40179

BALL

1шт.

9

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

SEAL

1шт.

10

T40181

RING

WASHER

1шт.

11

T40182

PISTON

1шт.

12

T40183

PLUG

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
