Запчасти Case IH 1529 (093A) - BASIC HYDRAULICS 3755880

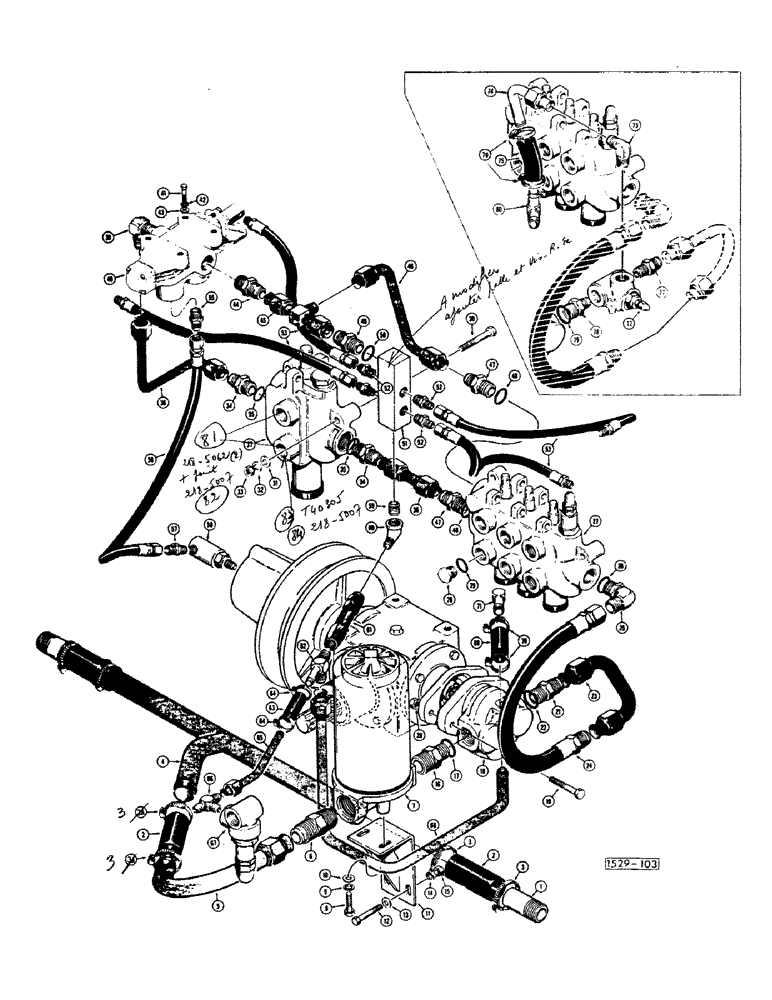

Схема запчастей Case IH 1529 - (093A) - BASIC HYDRAULICS 3755880
3
51
34
64
49
46
67
81
2
59
30
72
11
77
44
3
82
73
64
79
65
55
25
60
3
35
22
56
33
14
47
74
78
42
69
7
43
26
41
39
58
23
71
80
31
40
5
48
24
15
68
62
37
32
61
52
76
3
27
12
34
9
8
16
2
53
52
57
52
75
66
35
20
10
83
6
28
1
84
2
29
18
48
19
47
17
45
53
70
50
36
38
63
13
4

Артикул

Название

Примечание

Количество

1

D33363

FITTING

STEM Hose

2шт.

2

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

3шт.

3

E15741

CLAMP

6шт.

4

D53437

TUBE

1шт.

5

D53438

TUBE

1шт.

6

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

1шт.

7

REF

INSTRUCTION

FILTER T40141 see Figure 108

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

195-21

WASHER,5/16"

2шт.

11

T41067

BRACKET

SUPPORT

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

13

95-6

WASHER,3/8"

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

hex.

2шт.

16

218-5016

ADAPTER,1-5/8" - 12 Male ORB x 1-1/4" Male NPTF

CONNECTOR, Includes: Ref. 17

1шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Seal

1шт.

18

REF

INSTRUCTION

PUMP see Figure 45A

1шт.

19

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

2шт.

20

131-10

NUT,1/2"-13, GB

2шт.

21

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER, Incl. Ref. 22

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

23

D53474

TUBE

1шт.

24

R22173

HOSE

1шт.

25

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

27

REF

INSTRUCTION

VALVE control, D55019 see Figure 147E

1шт.

28

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 29

4шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

4шт.

31

195-25

WASHER,3/8"

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

hex.

4шт.

34

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 35

2шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

36

D53478

TUBE

1шт.

37

REF

INSTRUCTION

VALVE control, T40132 see Figure 104

1шт.

38

T40278

HYD TUBE

1шт.

39

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ELBOW

1шт.

40

REF

INSTRUCTION

VALVE control, D53435 see Figure 99A

1шт.

41

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

195-25

WASHER,3/8"

4шт.

44

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.

45

D53440

TUBE

1шт.

46

D53451

TUBE

1шт.

47

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Adapter, Includes: Ref. 48

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

49

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER, Incl. Ref. 50

2шт.

50

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

51

E17191

MANIFOLD

1шт.

51a

E16735

SCREW

1шт.

E16739

WASHER

1шт.

E16677

WASHER

1шт.

E16678

NUT

SPARE PART

1шт.

52

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER

4шт.

53

T40300

HYDRAULIC HOSE,0.25" ID x 15.75", SAE 100R3

4шт.

55

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

1шт.

56

D53436

HOSE,1/4 ID x 14.20", SAE 100R3

1шт.

57

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

1шт.

58

REF

INSTRUCTION

COUPLING Rotary, T42355 see Figure 50

1шт.

59

217-1073

HYD CONNECTOR,3/4" - 14 NPTF

ELBOW

1шт.

60

221-415

ELBOW,90 Degree, 3/4"-14, NPT

1шт.

61

T33711

VALVE

Check

1шт.

62

D53961

TEE

1шт.

63

D35139

HOSE

1шт.

64

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

65

D53554

TUBE

1шт.

66

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

Tee

1шт.

67

REF

INSTRUCTION

VALVE control, D53480 see Figure 58

2шт.

68

D53550

TUBE

1шт.

69

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

1шт.

70

E15741

CLAMP

2шт.

71

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

ELBOW

1шт.

72

D55217

LOCK VALVE

VALVE relief see Figure 59A

1шт.

73

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ELBOW

1шт.

74

D55225

TUBE

1шт.

75

R14170

HOSE

1шт.

76

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

77

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR

1шт.

78

218-5017

ADAPTER

Includes: Ref. 79

4шт.

79

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

80

D55221

SPARE PART ELBOW

1шт.

81

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

82

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

83

T40305

FITTING

1шт.

84

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
