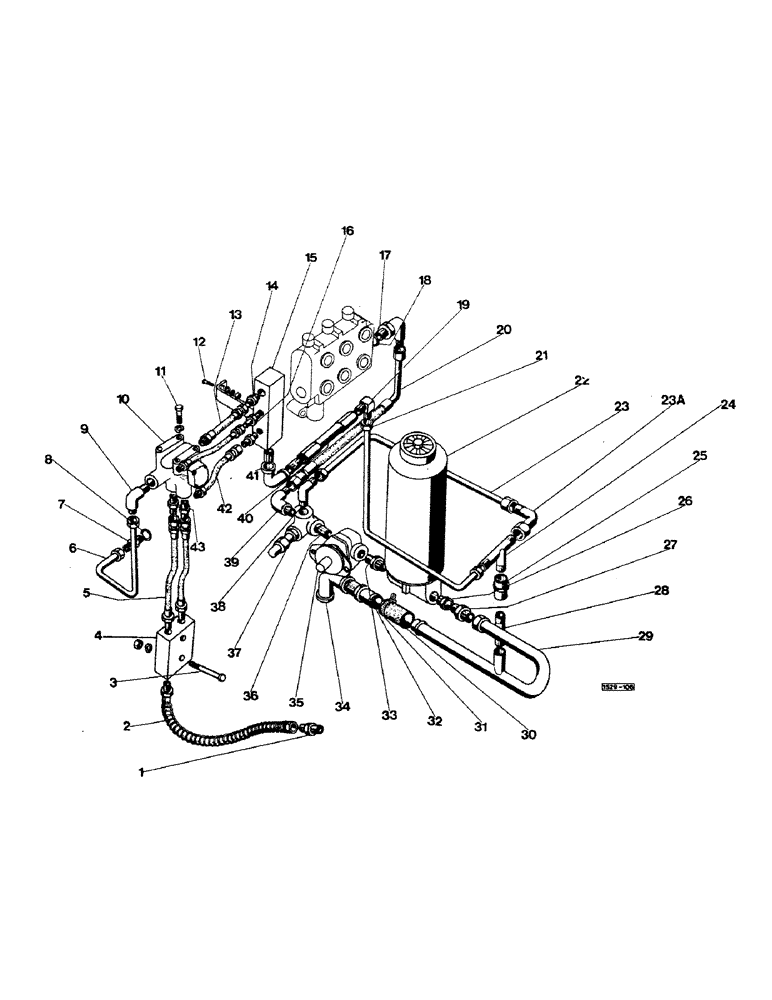

Запчасти Case IH 1529 (088) - BASIC HYDRAULICS UP TO NO. 3755879

1

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

1шт.

2

E17091

HOSE

1шт.

3

E16685

BOLT (SPREADER)

Hex. 8 (1.25) x 45

2шт.

E16677

WASHER

lock

2шт.

E16678

NUT

SPARE PART

2шт.

4

T42651

VALVE

Lock see Figure 94

1шт.

5

T40300

HYDRAULIC HOSE,0.25" ID x 15.75", SAE 100R3

2шт.

6

T40278

HYD TUBE

1шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY, Incl. Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

9

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ELBOW 90 degrees

1шт.

10

D52845

HYDRAULIC VALVE

see Figure 96

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

92-6

LOCK WASHER,3/8"

4шт.

12

E16735

SCREW

BOLT Hex. 8 (1.25) x 25

1шт.

E16739

WASHER

plain

1шт.

E16677

WASHER

lock

1шт.

E16678

NUT

SPARE PART

1шт.

13

E16687

TUBE

HOSE (Lg 210 mm)

1шт.

E30364

O-RING

HOSE (Lg 230 mm) if used

1шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

E17191

MANIFOLD

Hyd.

1шт.

16

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING

4шт.

17

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, Incl. Ref. 18

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

19

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

90 degrees

1шт.

20

T40299

SPARE PART

1шт.

21

T40289

TUBE

(used with E16687)

1шт.

E30361

TUBE (used with E30364)

1шт.

22

T40141

FILTER

see Figure 108

1шт.

23

E17894

TUBE

1шт.

When depleted Order (1) D53254+(1) 218523.

1шт.

D53254

TUBE

1шт.

23a

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

24

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

Tee

1шт.

25

217-1103

HYD CONNECTOR,1/2" - 14 NPT x 1/2" - 14 NPT

COUPLING

1шт.

26

221-609

REDUCER,Hex, 1 1/4" x 1" NPT

reducing

1шт.

27

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR

1шт.

28

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

NIPPLE

1шт.

29

T41767

TUBE,16.5, 3.5" L

1шт.

30

18361

HOSE,1.25" ID x 5.00", SAE 100R3

1шт.

31

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

32

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

1шт.

33

217-1082

HYD CONNECTOR,1-1/4" - 11-1/2 NPTF x 1" - 11-1/2 NPTF

CONNECTOR

1шт.

34

221-380

ELBOW,90 Degree, 1 1/4" NPT

ELBOW 90 degrees female

1шт.

35

T41505

PUMP

see Figure 42

1шт.

36

217-1073

HYD CONNECTOR,3/4" - 14 NPTF

NIPPLE

3шт.

37

T40135

VALVE

see Figure 58

1шт.

38

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

39

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ELBOW 90 degrees

1шт.

40

T33711

VALVE

Check

1шт.

41

221-378

ELBOW,90 Degree, 3/4" NPT

ELBOW 90 degrees female

1шт.

42

T40300

HYDRAULIC HOSE,0.25" ID x 15.75", SAE 100R3

4шт.

43

T40303

FITTING

CONNECTOR

2шт.
