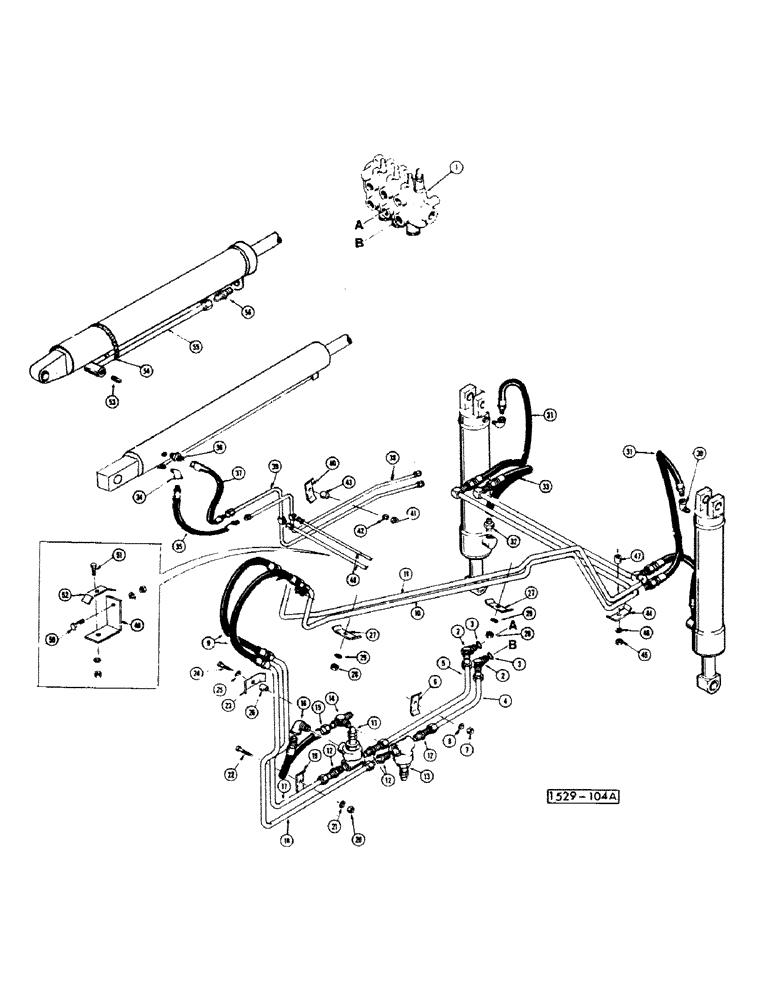

Запчасти Case IH 1529 (087A) - HYDRAULICS STARTING FROM NO. 3755880

1

REF

INSTRUCTION

VALVE control, see Figure 147A

1шт.

2

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D53371

TUBE

1шт.

5

D53373

TUBE

1шт.

6

A14078

CLAMP

2шт.

7

E16678

NUT

SPARE PART hex.

1шт.

8

E16677

WASHER

LOCKWASHER

2шт.

9

D23030

HOSE

2шт.

10

D53375

TUBE

43D57062

1шт.

11

D53447

TUBE

1шт.

12

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

4шт.

13

D53480

VALVE

control see Figure 58

2шт.

14

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

TEE

1шт.

15

36272

HOSE

1шт.

16

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW

1шт.

17

D53369

TUBE

1шт.

18

D53367

TUBE

1шт.

19

A14078

CLAMP

1шт.

20

E16678

NUT

SPARE PART hex.

1шт.

21

E16677

WASHER

LOCKWASHER

1шт.

22

E16685

BOLT (SPREADER)

hex.

1шт.

23

A14078

CLAMP

1шт.

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

24

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

D33552

BUSHING

SPACER

1шт.

27

A14078

CLAMP

2шт.

28

E16678

NUT

SPARE PART hex.

2шт.

29

E16677

WASHER

LOCKWASHER

2шт.

30

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ELBOW

2шт.

31

E17094

HOSE

upper

2шт.

32

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

REDUCER

2шт.

33

E17891

HOSE

lower

2шт.

34

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ELBOW, Serial Range: -3755970

2шт.

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

, Start Serial: 3755971

2шт.

35

E17093

HOSE

2шт.

36

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

REDUCER

2шт.

37

E17092

HOSE

2шт.

38

E18336

PIPE

TUBE

1шт.

39

E18337

TUBE

1шт.

40

A14078

CLAMP

2шт.

41

E16678

NUT

SPARE PART hex.

2шт.

42

E16677

WASHER

LOCKWASHER

2шт.

44

A14078

CLAMP

2шт.

45

E16678

NUT

SPARE PART hex.

2шт.

46

E16677

WASHER

LOCKWASHER

2шт.

47

D33552

BUSHING

SPACER

2шт.

48

T40284

TUBE

2шт.

49

E16723

BRACKET

SUPPORT

1шт.

50

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

51

E16685

BOLT (SPREADER)

hex.

1шт.

E16677

WASHER

LOCKWASHER

1шт.

E16678

NUT

SPARE PART hex.

1шт.

52

A14078

CLAMP

CLIP

1шт.

53

221-13

PLUG,Sq Hd, 3/8"-18

, Start Serial: 3755971

2шт.

54

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

, Start Serial: 3755971

2шт.

55

E17873

TUBE

, Start Serial: 3755971

2шт.

56

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

RESTRICTOR, Start Serial: 3755971

2шт.
