Запчасти Case IH 1529 (082) - BASIC HYDRAULICS UP TO NO.3755879

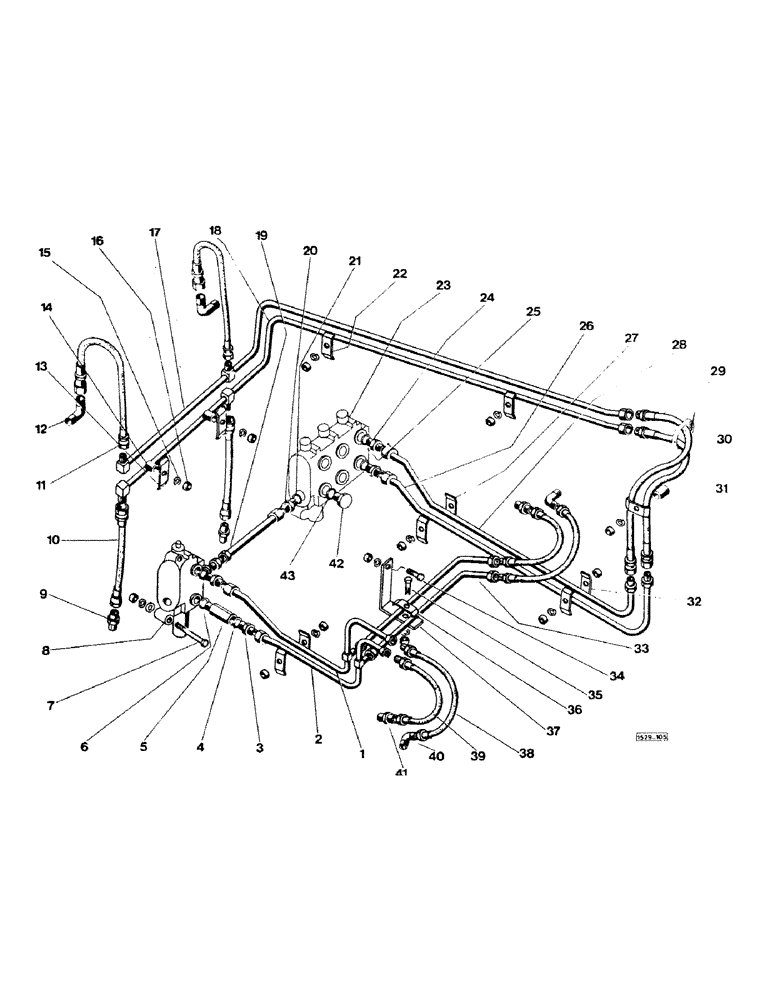

Схема запчастей Case IH 1529 - (082) - BASIC HYDRAULICS UP TO NO.3755879
36
20
23
2
14
10
31
22
32
12
11
39
9
41
19
33
29
42
26
4
27
18
6
7
8
21
5
15
24
40
43
34
25
13
17
30
16
3
1
37
28
38
35

Артикул

Название

Примечание

Количество

1

E18336

PIPE

TUBE

1шт.

2

E18337

TUBE

1шт.

3

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ASSY, Includes: Ref. 4

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

T40305

FITTING

VALVE restrictor

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

4шт.

195-25

WASHER,3/8"

4шт.

92-6

LOCK WASHER,3/8"

4шт.

25-106

NUT,3/8"-16, G5

4шт.

8

T40137

VALVE

see Figure 104

1шт.

9

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

REDUCER

2шт.

10

E17891

HOSE

lower

2шт.

11

E17094

HOSE

upper

2шт.

12

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ELBOW 90 degrees

2шт.

13

A14078

CLAMP

CLIP

2шт.

14

D33552

BUSHING

SPACER

2шт.

15

E16677

WASHER

lock

2шт.

16

E16678

NUT

SPARE PART

2шт.

17

T41743

TUBE,0.625" OD x 57.25, 26.88" L

1шт.

T42627

TUBE,0.625" OD

1шт.

D53010

TUBE

1шт.

18

T41769

TUBE,0.625" OD

1шт.

T42628

SPARE PART

1шт.

D53013

TUBE

1шт.

19

T40260

TUBE

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY, Incl. Ref. 21

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

22

A14078

CLAMP

2шт.

E16678

NUT

SPARE PART hex.

2шт.

E16677

WASHER

LOCKWASHER

2шт.

23

T40138

VALVE

(1-spool) If used see Figure 100

1шт.

T40083

VALVE (3-spool) If used see Figure 144

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ASSY, Includes: Ref. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

D52966

TUBE

1шт.

27

A14078

CLAMP

2шт.

E16678

NUT

SPARE PART hex.

1шт.

E16677

WASHER

LOCKWASHER

1шт.

28

D52964

TUBE

1шт.

29

D23030

HOSE

2шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP

2шт.

31

D40236

CLAMP

1шт.

D33829

BUSHING

SPACER

1шт.

E16678

NUT

SPARE PART hex.

1шт.

E16677

WASHER

LOCKWASHER

1шт.

32

A14078

CLAMP

1шт.

E16678

NUT

SPARE PART hex.

2шт.

E16677

WASHER

LOCKWASHER

1шт.

33

T40284

TUBE

2шт.

34

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

35

E16685

BOLT (SPREADER)

H 8 (1.25) x 45

1шт.

E16677

WASHER

LOCKWASHER 8

1шт.

E16678

NUT

SPARE PART Hex. 8 x (1.25)

1шт.

36

A14078

CLAMP

CLIP

1шт.

37

E16723

BRACKET

SUPPORT

1шт.

38

E17092

HOSE

2шт.

39

E17093

HOSE

2шт.

40

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ELBOW

2шт.

41

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

REDUCER

2шт.

42

86512512

PLUG,7/8" - 14 ORB

4шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 64
