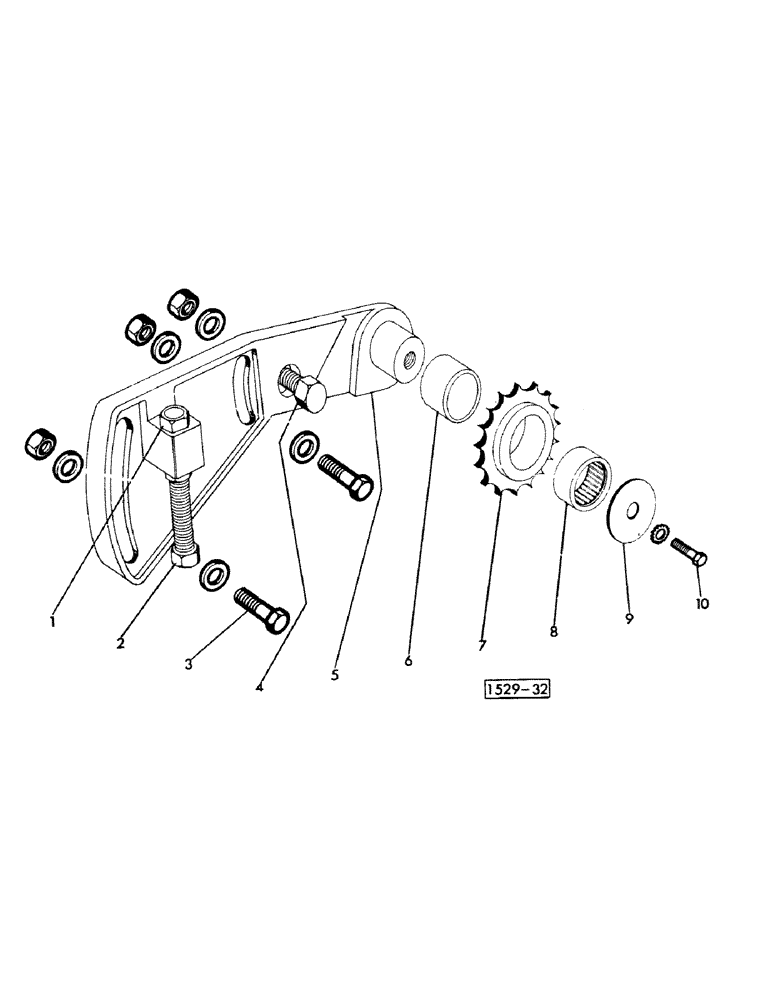

Запчасти Case IH 1529 (076) - NO. 50 CHAIN BRACKET

1

25-108

NUT,1/2"-13, G5

Hex

4шт.

2

113-469

BOLT,Hex, 1/2" - 13 x 5", Gr 5, Full Thd

2шт.

4

14-928

BOLT,Hex, 9/16" - 18 x 1-3/4", Gr 5, Full Thd

BOLT Hex. 9/16" x 1-3/4" NF

4шт.

E30140

WASHER

9/16"

4шт.

E17171

WASHER

plain 14

4шт.

131-11

NUT,9/16"-18, GB

4шт.

3

14-924

BOLT,Hex, 9/16" - 18 x 1-1/2", Gr 5, Full Thd

BOLT 9/16" x 1-1/2" NF

2шт.

E30140

WASHER

9/16"

2шт.

131-11

NUT,9/16"-18, GB

2шт.

5

T41077

BRACKET

RH, Includes: Ref. 6

1шт.

T41079

BRACKET

LH, Includes: Ref. 6

1шт.

6

T40032

BEARING

RACE inner

1шт.

195-2121

WASHER,1 5/16" x 2" x .065"

2шт.

7

D54829

SPROCKET ASSY.

Includes: Ref. 8

2шт.

8

T42467

BRONZE BUSHING,1.2555" ID x 1.504" OD x 0.625"

BEARING needle

1шт.

9

T40254

WASHER

plain

2шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

2шт.
